Data Sheet

Product Code: HK44A

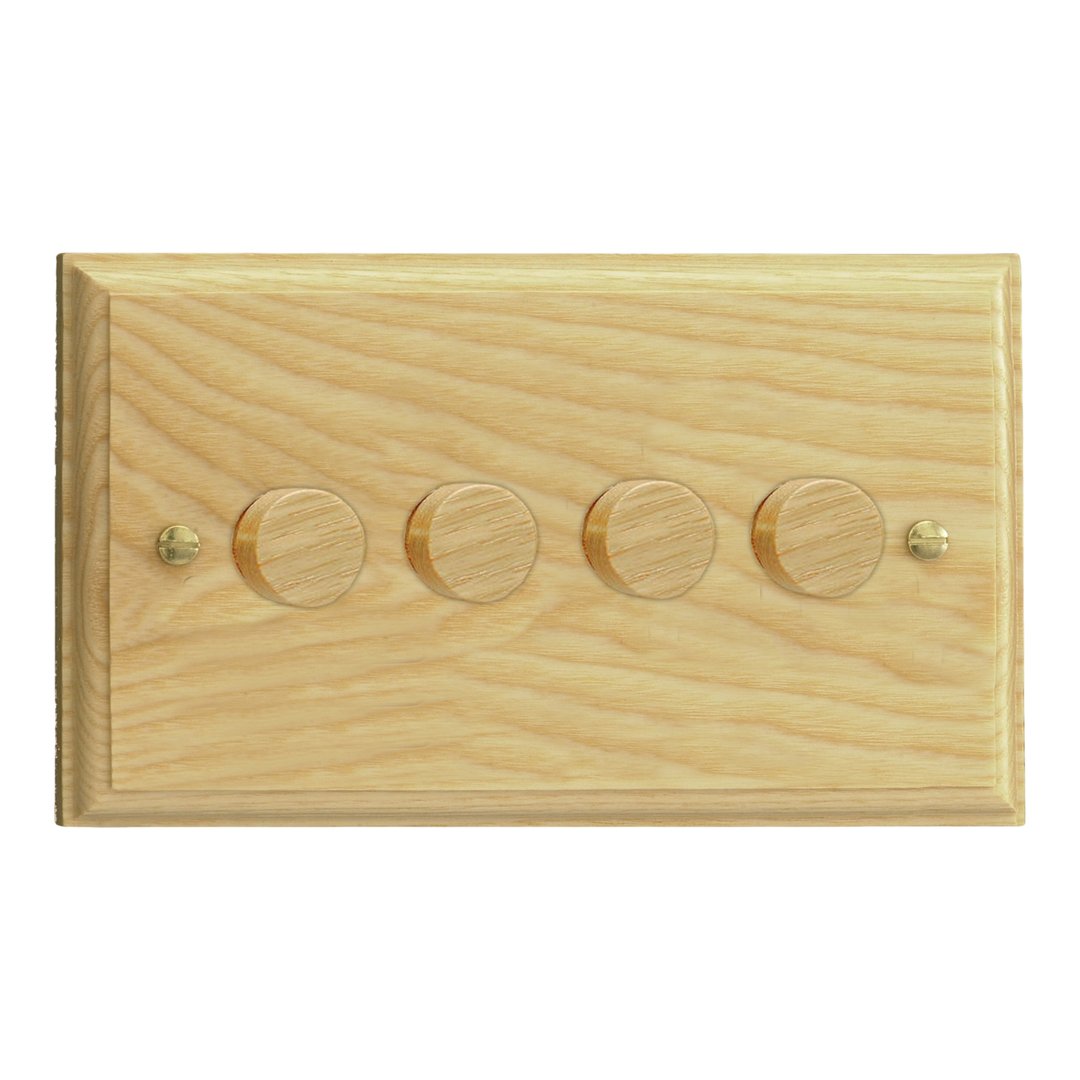

Product Description: 4-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 4 x 40-250W (Twin Plate)

Range: Kilnwood

Finish: Ash

Product Category: V-Dim Dimmer

Insert/Knob Colour: Ash Knobs

Barcode: 5021575970135

Dimensions: 96x156x52mm

Faceplate Depth: 15mm

Net Weight: 260g

Gross Weight: 262g

Fixing Centres: 120.6mm

Depth from Mounting Face:

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Halogen: 250W

Maximum Current Rating: 1.1A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS 5518

Commodity Code: 85365005

Declaration of Conformity

Product Features

  V-Dim dimming technology

  Ideal for incandescent lighting including mains and low voltage halogen

  High grade sustainable timber

Kilnwood Collection
The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability

Ash Finish
The natural grain of the Ash finish means that each product features its own distinct patterns and textures, contributing to a completely unique look. Its light finish and natural tones make it easy to match with any contemporary interior
