Data Sheet
Product Code: HK4BE

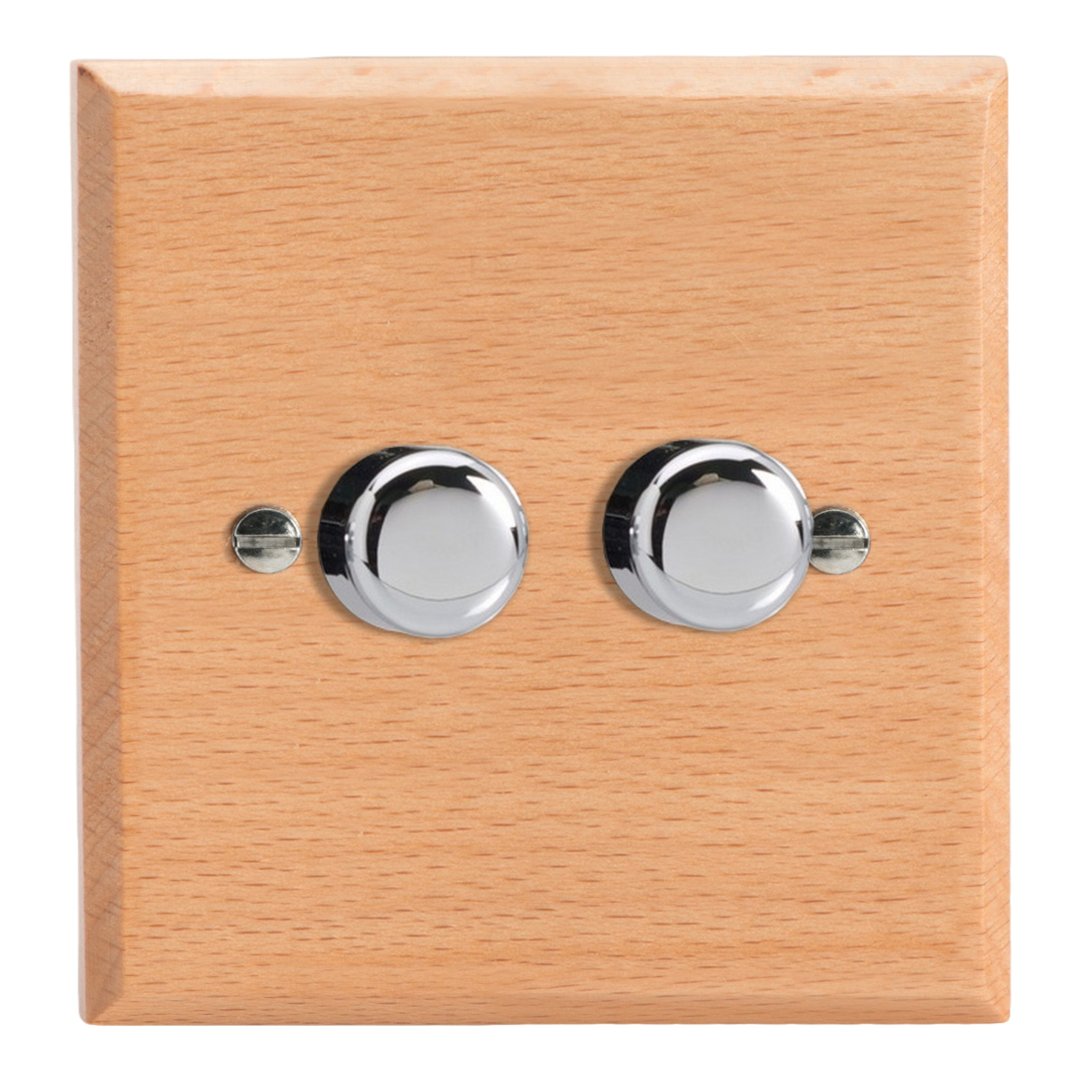

Product Description: 2-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 2 x 40-250W
Range: Kilnwood
Finish: Scandic Beech
Product Category: V-Dim Dimmer
Insert/Knob Colour: Chrome Knobs
Barcode: 5021575970203
Dimensions: 96x96x52mm
Faceplate Depth: 15mm
Net Weight: 156g
Gross Weight: 158g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Halogen: 250W
Maximum Current Rating: 1.1A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS 5518
Commodity Code: 85365005
Product Features
V-Dim dimming technology
Ideal for incandescent lighting including mains and low voltage halogen
High grade sustainable timber
Kilnwood Collection
The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability
Scandic Beech Finish
With its subtle, yet natural grain, the Beech finish provides a uniformed look. Its warm, natural tones and soft character enhance the ambiance of any space
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
01st May 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
