Data Sheet

Product Code: HK4M

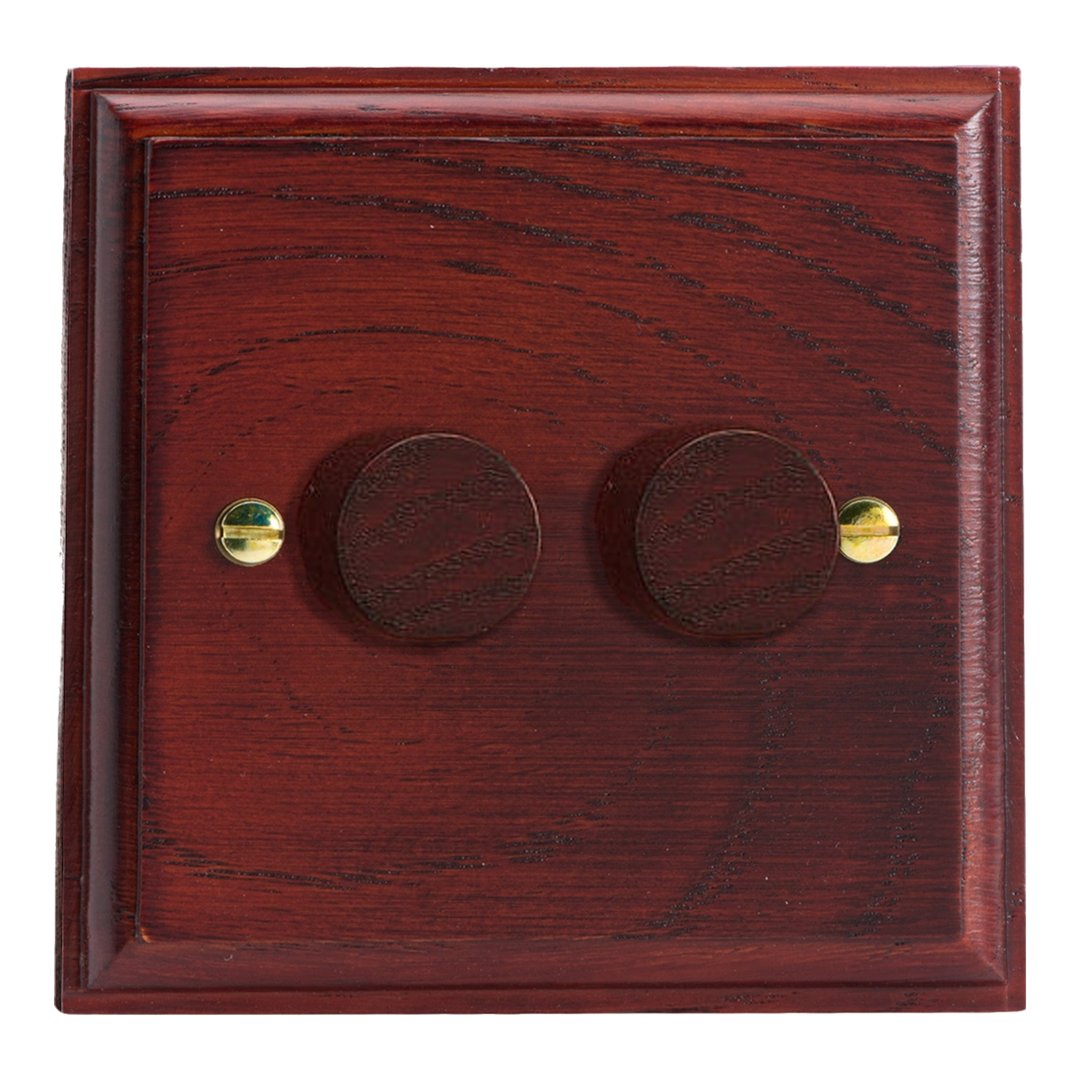

Product Description: 2-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 2 x 40-250W

Range: Kilnwood

Finish: Mahogany

Product Category: V-Dim Dimmer

Insert/Knob Colour: Mahogany Knobs

Barcode: 5021575970227

Dimensions: 96x96x52mm

Faceplate Depth: 15mm

Net Weight: 156g

Gross Weight: 158g

Fixing Centres: 60.3mm

Depth from Mounting Face:

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Halogen: 250W

Maximum Current Rating: 1.1A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS 5518

Commodity Code: 85365005

Declaration of Conformity

Product Features

  V-Dim dimming technology

  Ideal for incandescent lighting including mains and low voltage halogen

  High grade sustainable timber

Kilnwood Collection
The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability

Mahogany Finish
The natural grain of the Mahogany finish means that each product features its own distinct patterns and textures, contributing to a completely unique look. The warm, natural tones and rich character enhances the ambiance of any space
