Data Sheet

Product Code: HDE3.BS

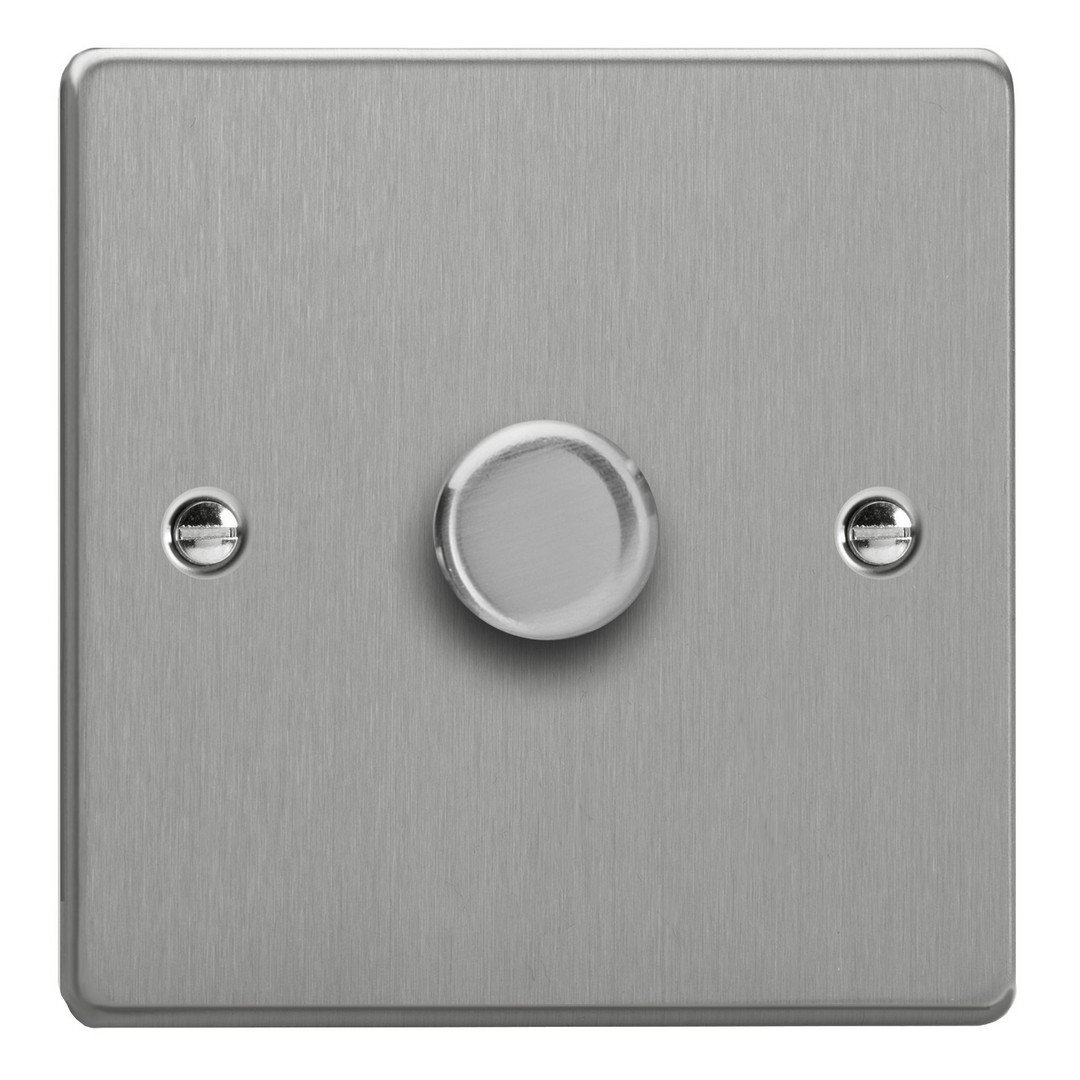

Product Description: 1-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 1 x 60-400W

Range: Essential

Finish: Brushed Steel

Product Category: Halogen Dimmers

Insert/Knob Colour: Brushed Steel Knob

Barcode: 5021575024647

Dimensions: 86x86x49mm

Faceplate Depth: 4mm

Net Weight: 156g

Gross Weight: 158g

Fixing Centres: 60.3mm

Depth from Mounting Face: 23mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Halogen: 400W

Maximum Current Rating: 1.7A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS 5518

Commodity Code: 85365007

Declaration of Conformity

Product Features

  V-Dim dimming technology

  Ideal for incandescent lighting including mains and low voltage halogen

  Sleek, low-profile faceplate

Essential Collection
The Essential Collection is the go-to range for unbeatable value. Its sleek, low-profile faceplate features clean lines that add a modern, refined touch to any space, while the visible fixing screws create a simple yet practical aesthetic. The Essential Collection delivers on both affordability and quality, making it the perfect solution for any interior.

Brushed Steel Finish
The stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. It is offered with Black or White inserts and matching steel fixing screws. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
