Click below to print the data sheet for XYSB.MB
Further information:
Data Sheet
Product Code: XYSB.MB
Product Description: Single Blank Plate
Range: Urban/Vogue
Finish: Matt Black
Product Category: Other Items
Insert/Knob Colour:
Barcode: 5021575031461

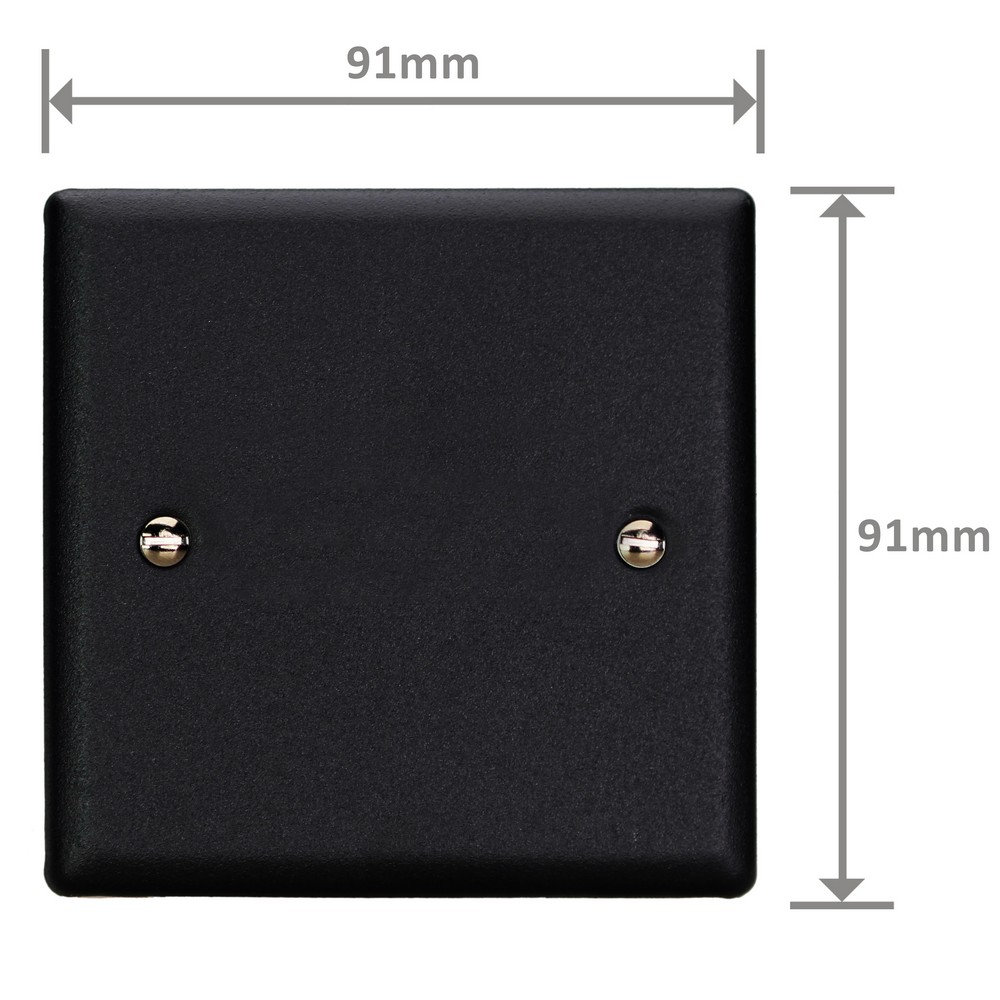

Dimensions: 91x91x11mm
Faceplate Depth: 8mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres: 60.3mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Used to cover unused wall boxes
Bevelled edge faceplate
Comes with Iridium and Brass screws to suit Vogue and Urban collections
Urban/Vogue Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard. This product is also suitable to match with the Vogue Collection.
Intended Applications: Indoor Use Only.
Safety Advice: This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85381000
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 17th March 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
