Data Sheet

Product Code: XYG4.BZ

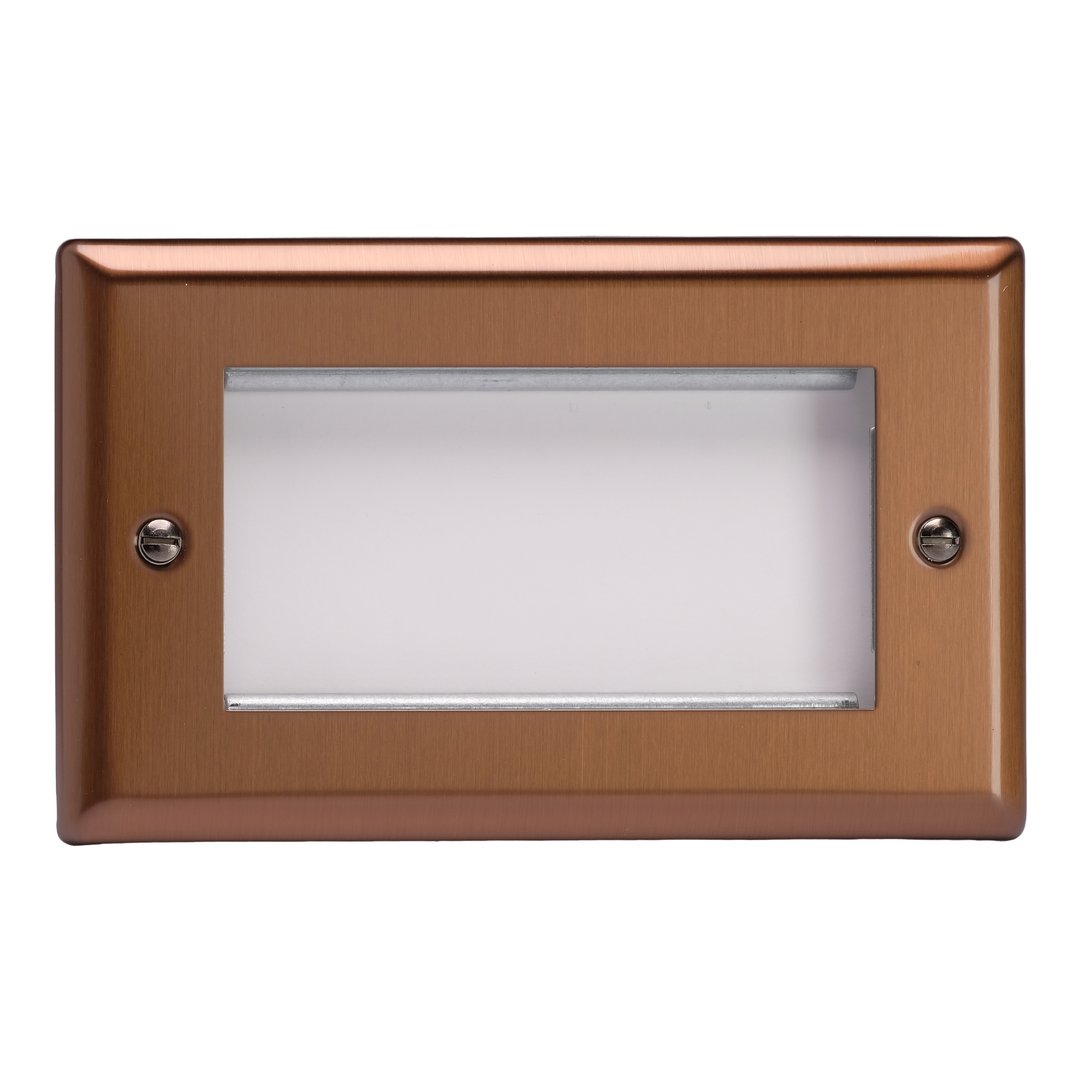

Product Description: DataGrid Twin Plate (4 Grid Spaces)

Range: Urban

Finish: Brushed Bronze

Product Category: DataGrid Faceplates

Barcode: 5021575952384

Dimensions: 91x150x9mm

Faceplate Depth: 8mm

Net Weight: 120g

Gross Weight: 122g

Fixing Centres: 120.6mm

Depth from Mounting Face: Module Dependent

Recommended Back Box Depth: Refer to Grid Modules

Operating Voltage: N/A

Maximum Load Rating: N/A

Maximum Current Rating: -

Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Applicable Safety Standard: BS EN 60669

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Clip in any mix of DataGrid modules: TV, satellite, network, phone, USB and more

  Build the exact data combination the room needs

  Over 70 DataGrid modules to choose from

  Modules purchased separately

  Bevel-edge faceplate, 8mm deep with iridium screws

Urban Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style.

Brushed Bronze Finish
Offering a contemporary take on a classical finish, and paired with black inserts, Brushed Bronze suits both traditional and modern spaces.
