Data Sheet

Product Code: XYFOW.CU

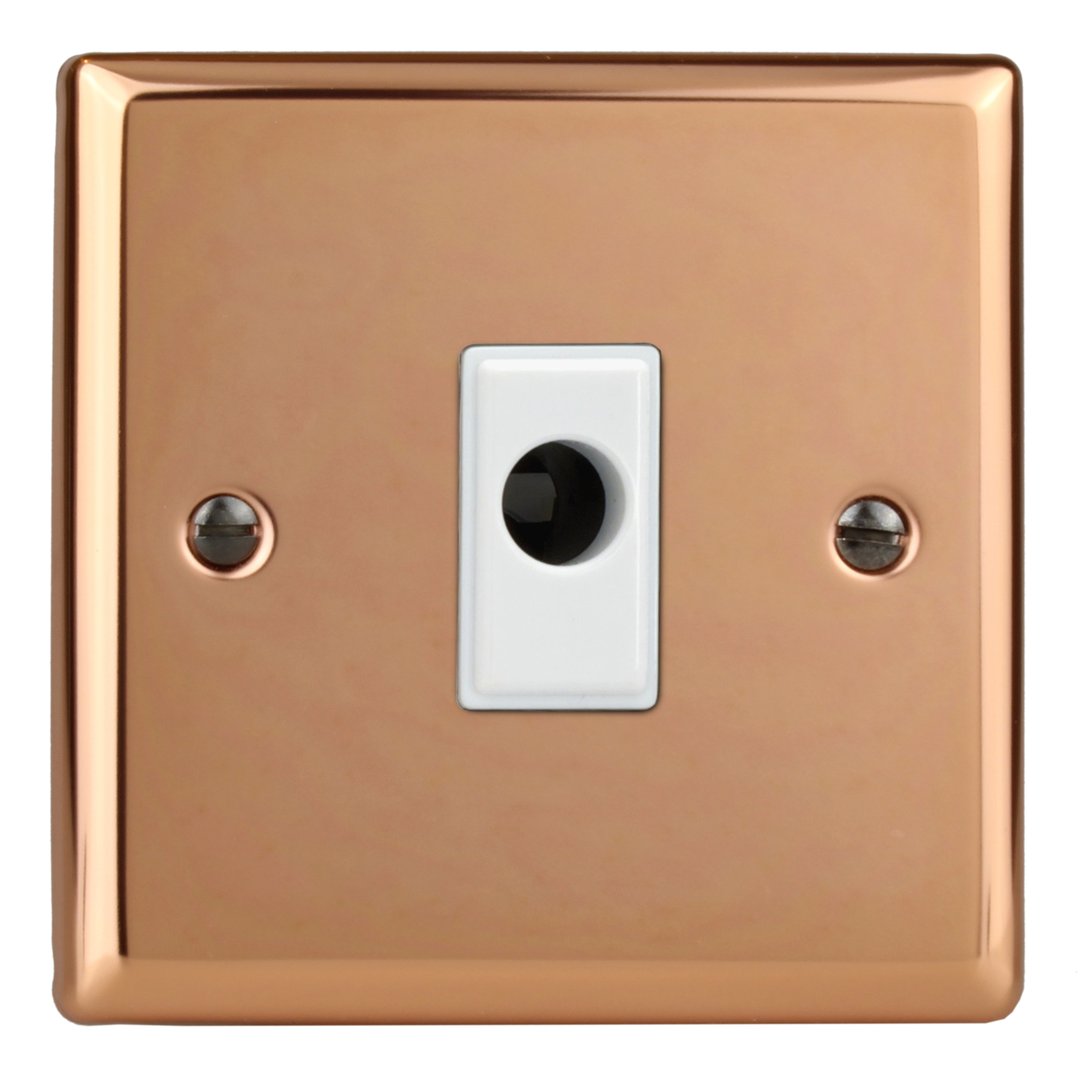

Product Description: 16A Flex Outlet Plate

Range: Urban

Finish: Polished Copper

Product Category: Other Items

Insert/Knob Colour: White Insert

Barcode: 5021575998924

Dimensions: 91x91x34mm

Faceplate Depth: 8mm

Net Weight: 106g

Gross Weight: 108g

Fixing Centres: 60.3mm

Depth from Mounting Face: 24.9mm

Recommended Back Box Depth: 16mm

Operating Voltage: N/A

Maximum Load Rating: 16A

Maximum Current Rating: 16A

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Can be used in a number of different environments for many applications

  Cable clamp

  Bevelled edge faceplate

  Decorative copper finish with protective lacquer to prevent tarnishing

Urban Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard.

Polished Copper Finish
Bring an elegant warmth to any room with Polished Copper accessories. A choice of black or white inserts makes this finish a versatile choice. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
