Click below to print the data sheet for XY8.CW
Further information:
Data Sheet
Product Code: XY8.CW

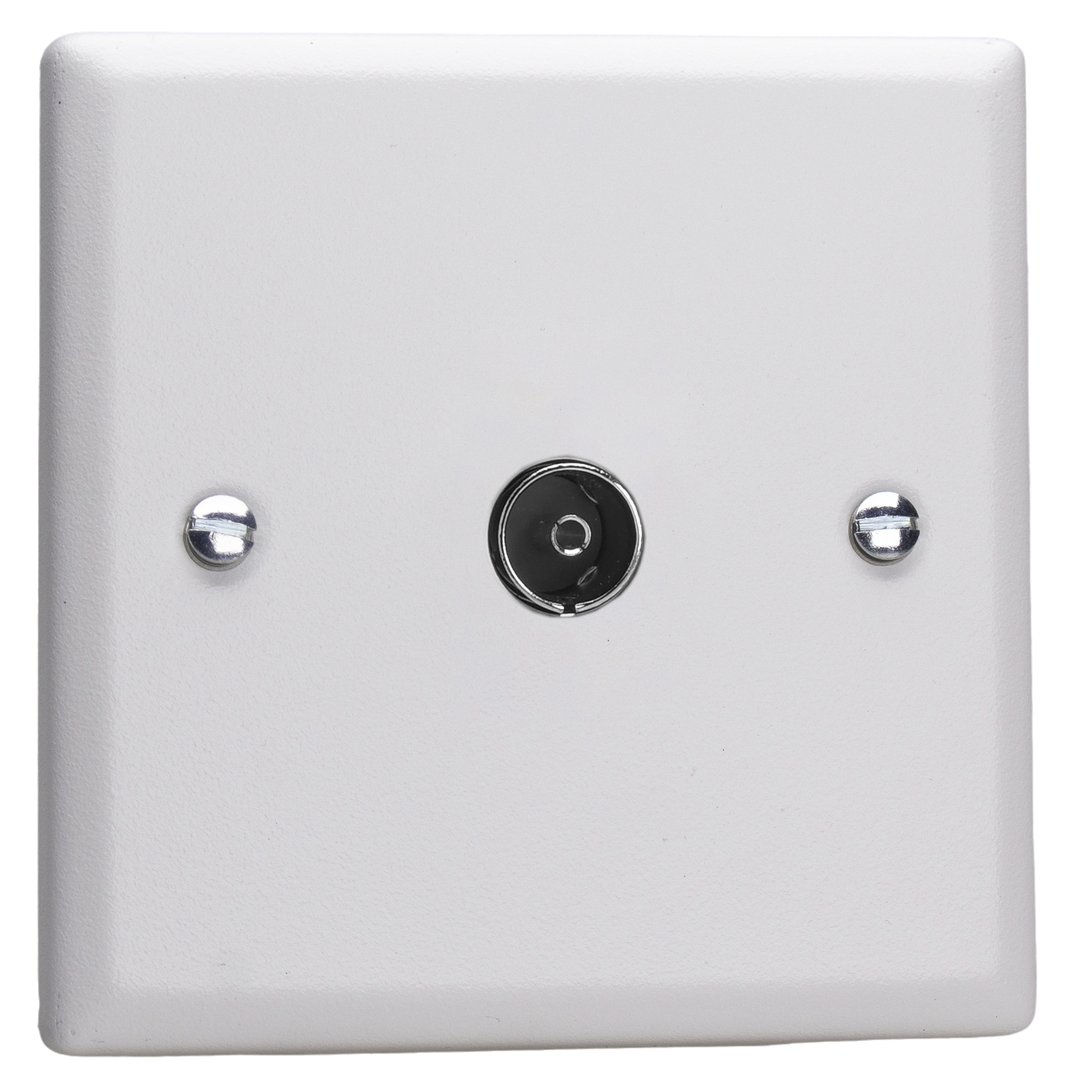

Product Description: 1-Gang TV Socket/ Co-Axial
Range: Urban
Finish: Chalk White
Product Category: TV and Telephone Sockets
Barcode: 5021575188653
Dimensions: 91x91x22mm
Faceplate Depth: 8mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face: 13.9mm
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS 5733
Commodity Code: 85366910
Product Features
TV socket for a male coaxial plug
Finished to match the rest of the range
Pairs with matching telephone and data sockets
A tidy connection for TV and hi-fi
Bevel-edge faceplate, 8mm deep with chrome screws, fits a 16mm back box
Urban Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style.
Chalk White Finish
Chalk White offers a subtle, textural feel. Coupled with white inserts, it offers a pared back and timeless elegance.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
