Data Sheet

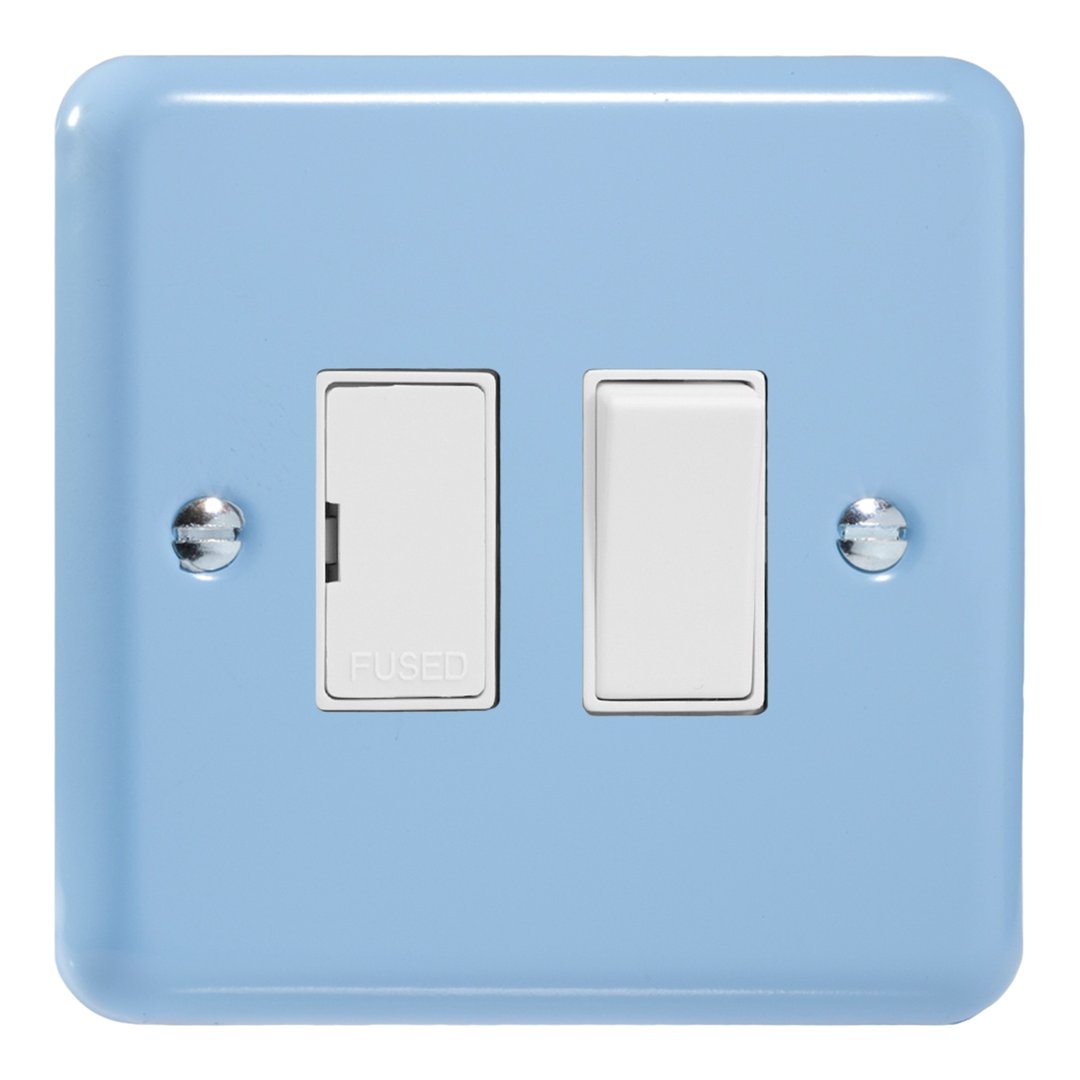

Product Code: XY6W.DB
Product Description: 13A Switched Fused Spur
Range: Lily
Finish: Duck Egg Blue
Product Category: Fused Spur Connection Units
Insert/Knob Colour: White Insert
Barcode: 5021575215526
Dimensions: 86x86x30mm
Faceplate Depth: 7mm
Net Weight: 166g
Gross Weight: 168g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.3mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85389091
Product Features
Double pole switching isolates live and neutral for added safety
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
A neat, fused supply for boilers, extractor fans and towel rails
Rounded-edge faceplate, 7mm deep with chrome screws, fits a 25mm back box
Lily Collection
Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.
Duck Egg Blue Finish
Cool and calming, Duck Egg Blue is the pastel that never dates, perfect for bedrooms, bathrooms and coastal-style kitchens. Paired with white inserts and chrome screws.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
10th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
