Data sheet: XY6UW.RB

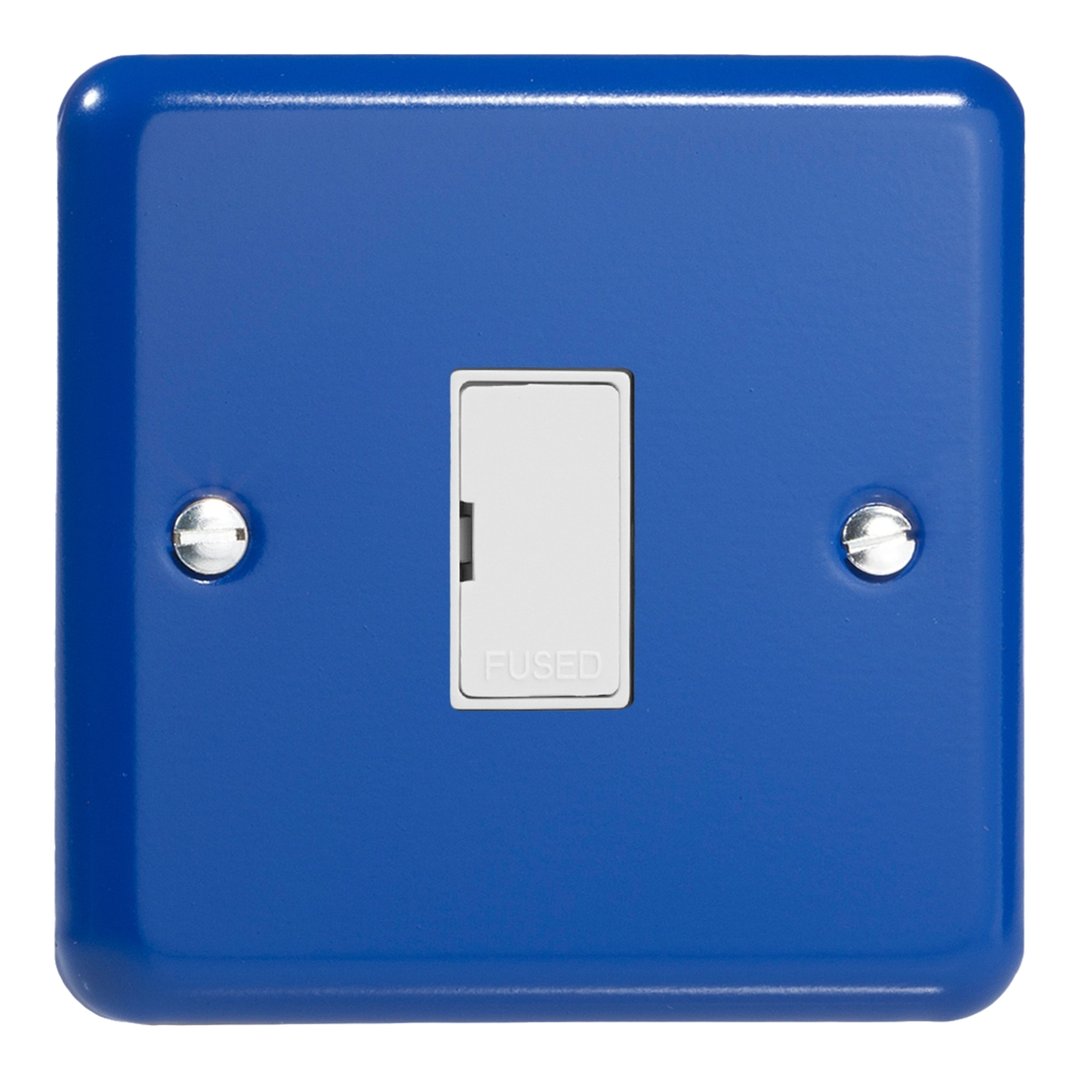

13A Unswitched Fused Spur, Lily Reflex Blue (XY6UW.RB)

Data sheet

XY6UW.RB 13A Unswitched Fused Spur

Range Lily Finish Reflex Blue

Product features

Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Unswitched, for appliances that should never be switched off by mistake
A neat, fused supply for boilers, extractor fans and towel rails
Rounded-edge faceplate, 7mm deep with chrome screws, fits a 25mm back box

Product

Product code: XY6UW.RB
Category: Fused Spur Connection Units
Range: Lily
Finish: Reflex Blue
Insert / knob colour: White Insert
Barcode: 5021575355581

Size and fitting

Dimensions: 86x86x30mm
Faceplate depth: 7mm
Fixing centres: 60.3mm
Depth from mounting face: 16.3mm
Recommended back box depth: 25mm
Net weight: 166g
Gross weight: 168g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: Refer to Fuse Value
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Lily collection

Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.

Reflex Blue finish

Vivid Reflex Blue is a statement finish that makes a feature of the wall. Bright, confident and fun, and just the thing for a football fan or a room that needs waking up. Paired with white inserts and chrome screws.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 12th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
