Data Sheet

Product Code: XY6UV.SL

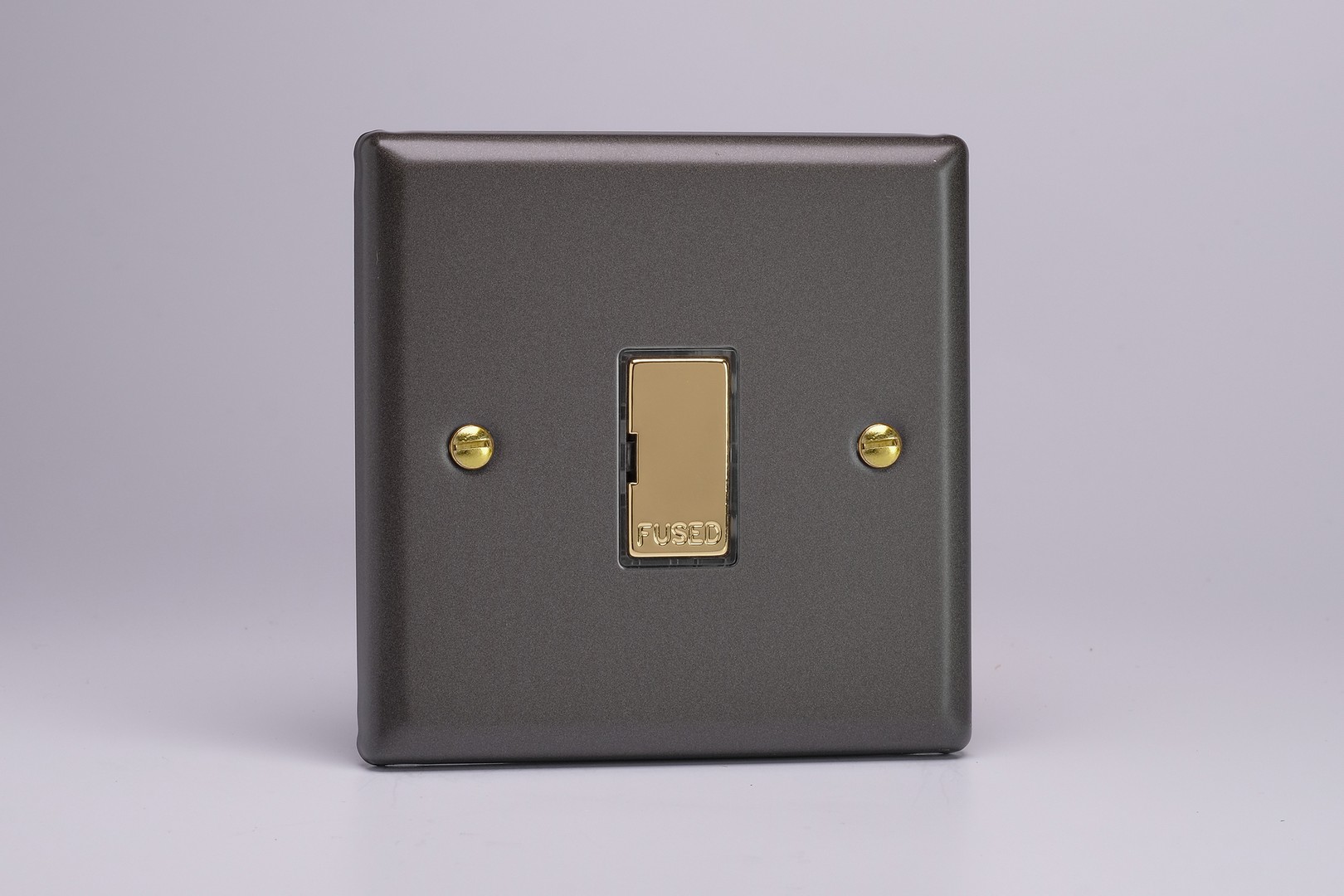

Product Description: 13A Unswitched Fused Spur

Range: Vogue

Finish: Slate

Product Category: Fused Spur Connection Units

Insert/Knob Colour: Brass Insert

Barcode: 5021575027778

Dimensions: 91x91x30mm

Faceplate Depth: 8mm

Net Weight: 166g

Gross Weight: 168g

Fixing Centres: 60.3mm

Depth from Mounting Face: 16.7mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Refer to Fuse Value

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-4

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Takes a standard 25.4x6.4mm fuse

  Easily replaceable 13A fuse included

  Unswitched, for appliances that should never be switched off by mistake

  A neat, fused supply for boilers, extractor fans and towel rails

  Art deco inspired faceplate, 8mm deep with brass screws, fits a 25mm back box

Vogue Collection
Inspired by the glamour of art deco, the Vogue collection will lift the decor of any room. Polished Brass switches, toggles and dimmer knobs are paired with the highest quality metal faceplates, to bring a feeling of luxury to any room.

Slate Finish
Slate is a deep, soft grey with a subtle stone-like texture, giving a modern, understated backdrop that is elevated by the signature polished brass rockers, toggles and dimmer knobs of the Vogue Collection.
