Data sheet: XY6FONV.SL

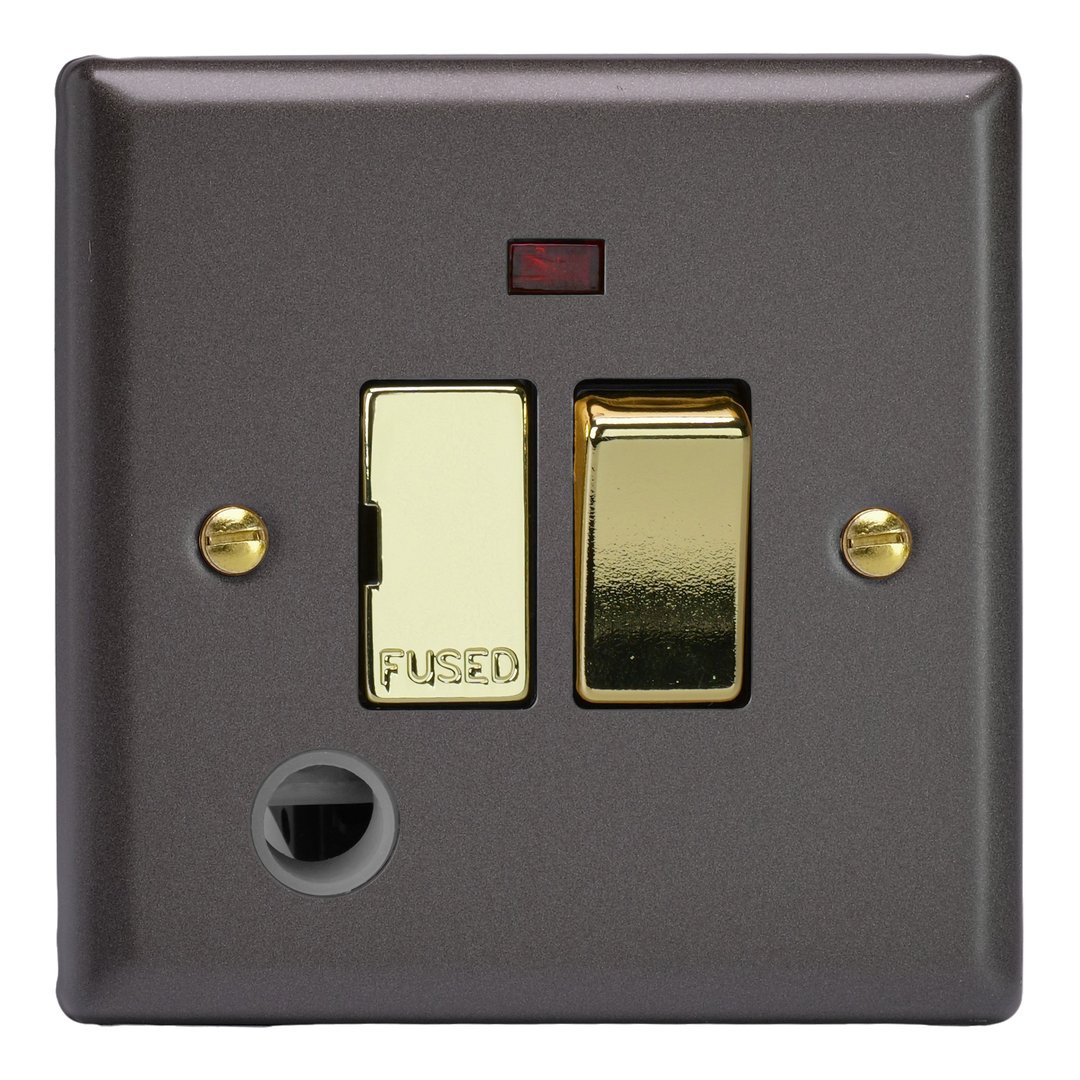

13A Switched Fused Spur with Neon with Flex Outlet, Vogue Slate Grey (XY6FONV.SL)

Data sheet

XY6FONV.SL 13A Switched Fused Spur with Neon with Flex Outlet

Name: 13A Switched Fused Spur with Neon with Flex Outlet
Brand: VARILIGHT
SKU: XY6FONV.SL

Fused Spur with Flex Outlet & Neon Indicator

Range Vogue Finish Slate

Product features

Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Cable clamp keeps the flex secure
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Art deco inspired faceplate, 8mm deep with brass screws, fits a 25mm back box

Product

Product code: XY6FONV.SL
Category: Fused Spur Connection Units
Range: Vogue
Finish: Slate
Insert / knob colour: Brass Insert
Barcode: 5021575038927

Size and fitting

Dimensions: 91x91x30mm
Faceplate depth: 8mm
Fixing centres: 60.3mm
Depth from mounting face: 16.7mm
Recommended back box depth: 25mm
Net weight: 166g
Gross weight: 168g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 13A
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Vogue collection

Inspired by the glamour of art deco, the Vogue collection will lift the decor of any room. Polished Brass switches, toggles and dimmer knobs are paired with the highest quality metal faceplates, to bring a feeling of luxury to any room.

Slate finish

Slate is a deep, soft grey with a subtle stone-like texture, giving a modern, understated backdrop that is elevated by the signature polished brass rockers, toggles and dimmer knobs of the Vogue Collection.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
