Data Sheet
Product Code: XY5U2SB.MB
Product Description: 2-Gang 13A Switched Socket with 2 x 12W Shared USB A Charging Ports
Range: Urban

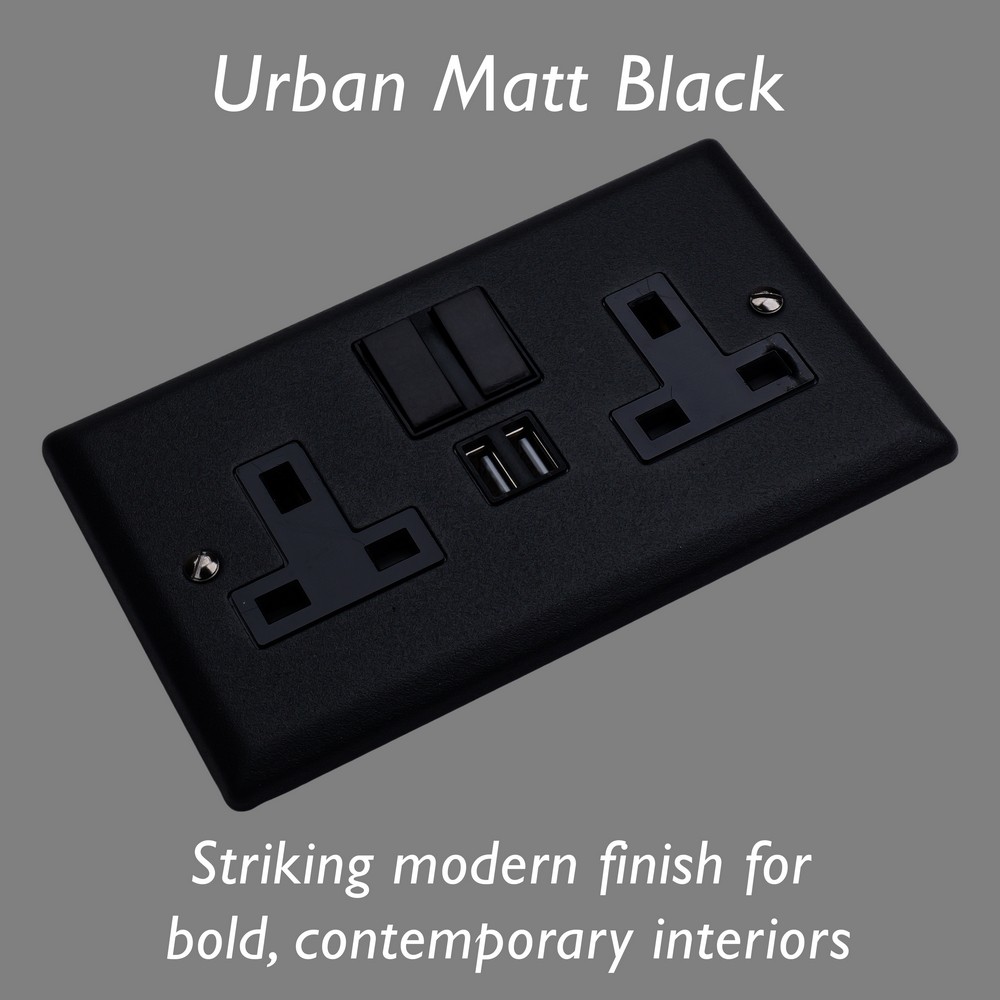

Finish: Matt Black
Product Category: Sockets with USB A Charging
Insert/Knob Colour: Black Insert
Barcode: 5021575007992

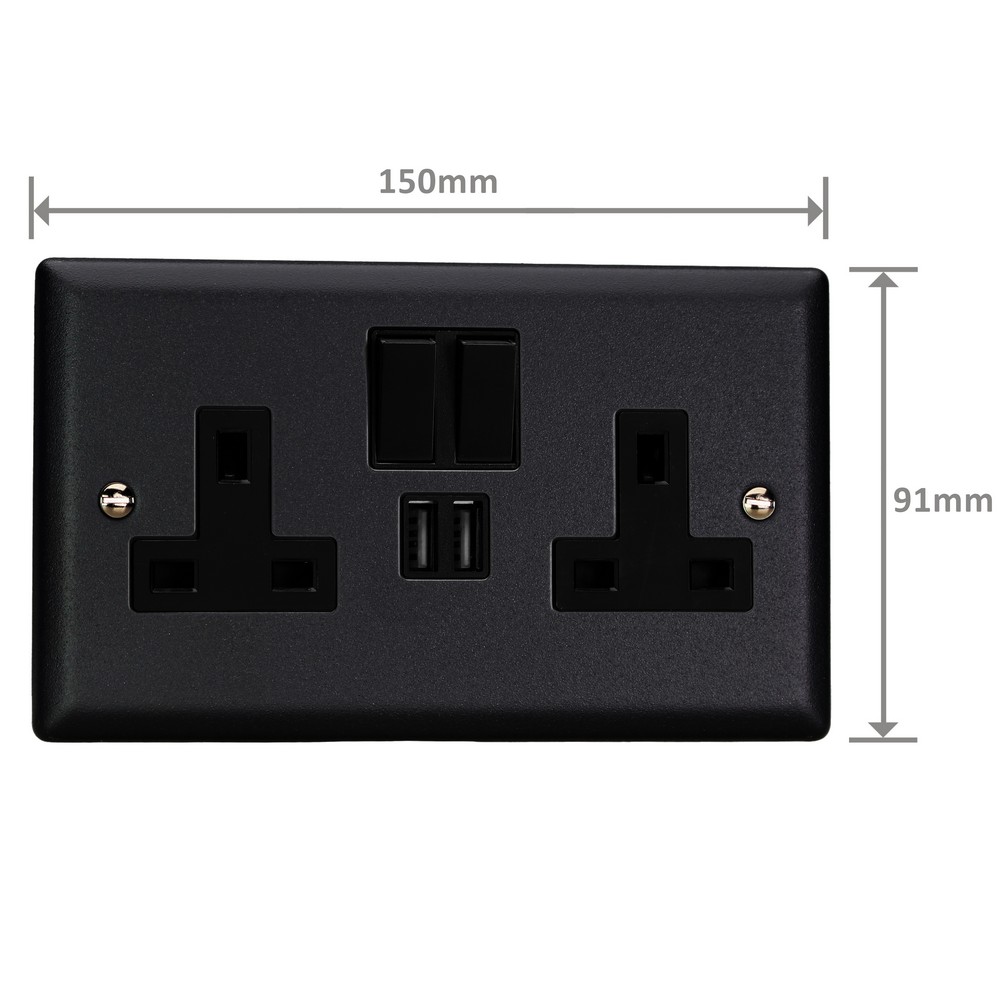

Dimensions: 91x150x28mm
Faceplate Depth: 8mm
Net Weight: 209g
Gross Weight: 212g
Fixing Centres: 120.6mm
Depth from Mounting Face: 18.5mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: USB: 12W
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Product Features
Ideal for charging iPad, iPhone, tablets, mobiles and cameras
Features VARILIGHT Smart Port technology making it suitable for all types of devices.
The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
Bevelled edge faceplate
Varilight Urban: Inspirational finishes for stylish spaces
Urban Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard.Matt Black Finish
The Matt Black finish is powder-coated to give a tactile, textured finish, which is tough, durable and resistant to fingerprints and is offered with black plastic inserts and matching black screws. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Please note recommended back box depth relies on efficient cable routing.. Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 14th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
