Data Sheet

Product Code: XY4U2SW.RB

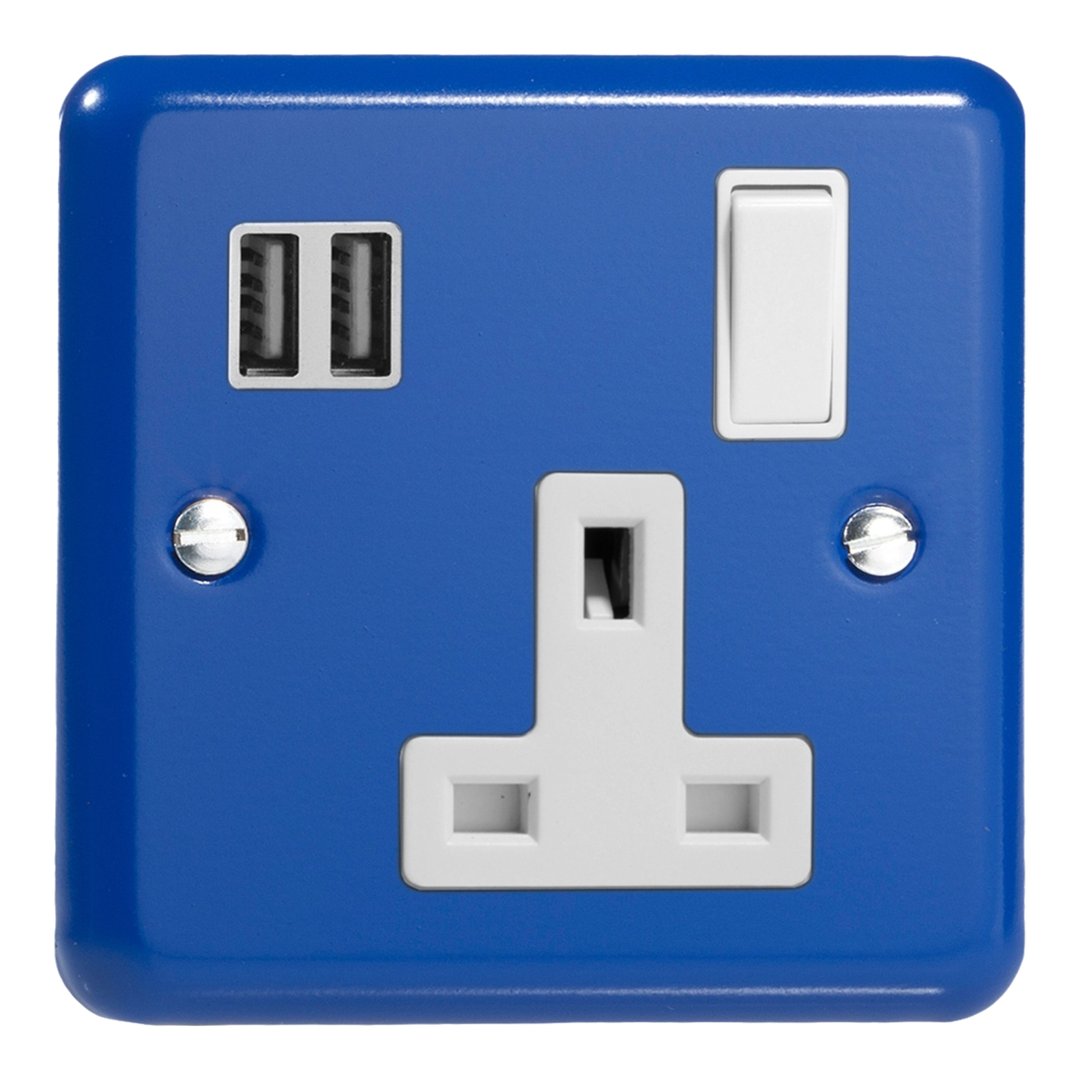

Product Description: 1-Gang 13A Switched Socket with 2 x 17W Shared USB A Charging Ports

Range: Lily

Finish: Reflex Blue

Product Category: Sockets with USB A Charging

Insert/Knob Colour: White Insert

Barcode: 5021575037579

Dimensions: 91x91x31mm

Faceplate Depth: 8mm

Net Weight: 206g

Gross Weight: 208g

Fixing Centres: 120.6mm

Depth from Mounting Face: 17.8mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: USB: 17W

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Please note recommended back box depth relies on efficient cable routing.. Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  2 x 17W shared USB-A charging ports

  Charges phones, tablets, cameras and more, no plug adaptor needed

  The socket stays free for other appliances

  Double pole switching isolates live and neutral for added safety

  Dual earth terminals for a secure earth connection

  Rounded-edge faceplate, 8mm deep with chrome screws, fits a 25mm back box

Lily Collection
Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.

Reflex Blue Finish
Vivid Reflex Blue is a statement finish that makes a feature of the wall. Bright, confident and fun, and just the thing for a football fan or a room that needs waking up. Paired with white inserts and chrome screws.
