Data Sheet

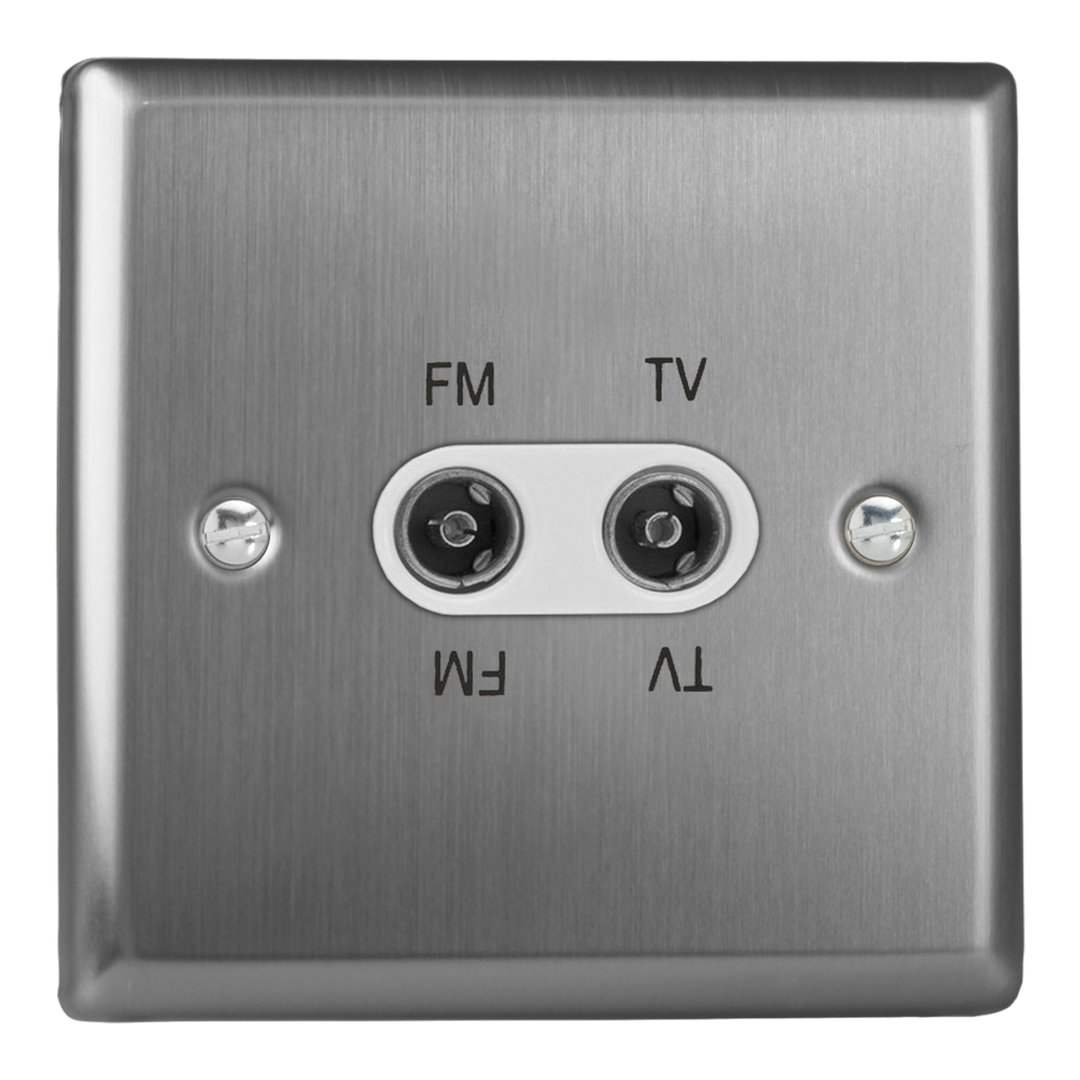

Product Code: XTTVFMW
Product Description: 2-Gang Diplex Socket/ TV/FM
Range: Classic
Finish: Brushed Steel
Product Category: TV and Telephone Sockets
Insert/Knob Colour: White Insert
Barcode: 5021575033144

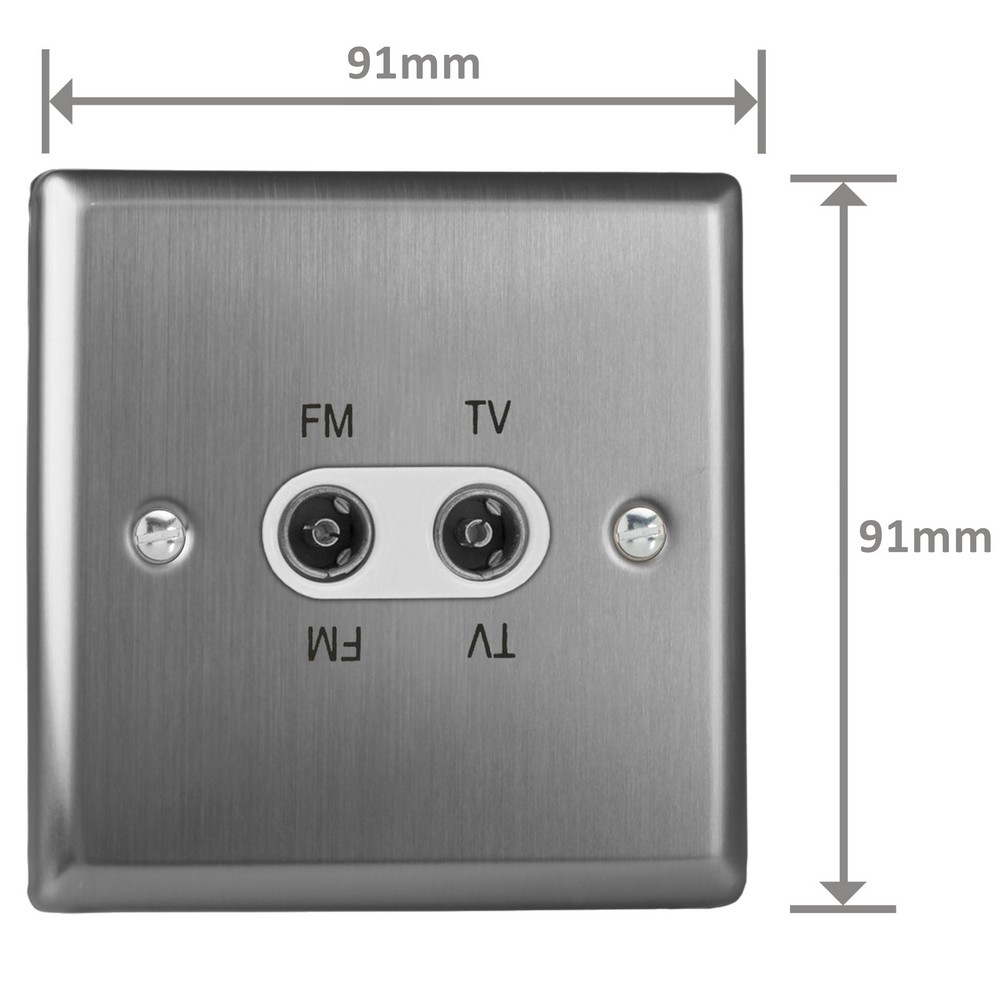

Dimensions: 91x91x22mm
Faceplate Depth: 8mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face: 15.9mm
Recommended Back Box Depth: 35mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS 5733
Commodity Code: 85366910
Product Features
One male coaxial socket for TV and one female coaxial socket for FM radio
Finished to match the rest of the range
Pairs with matching telephone and data sockets
A tidy connection for TV and hi-fi
Bevel-edge faceplate, 8mm deep with chrome screws, fits a 35mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
