Data Sheet

Product Code: XT71D

Product Description: 2-Gang (10A Intermediate Switch with 10A 1- or 2-Way Rocker Switch)

Range: Classic

Finish: Brushed Steel

Product Category: Rocker Switches

Insert/Knob Colour: Brushed Steel Rockers

Barcode: 5021575032536

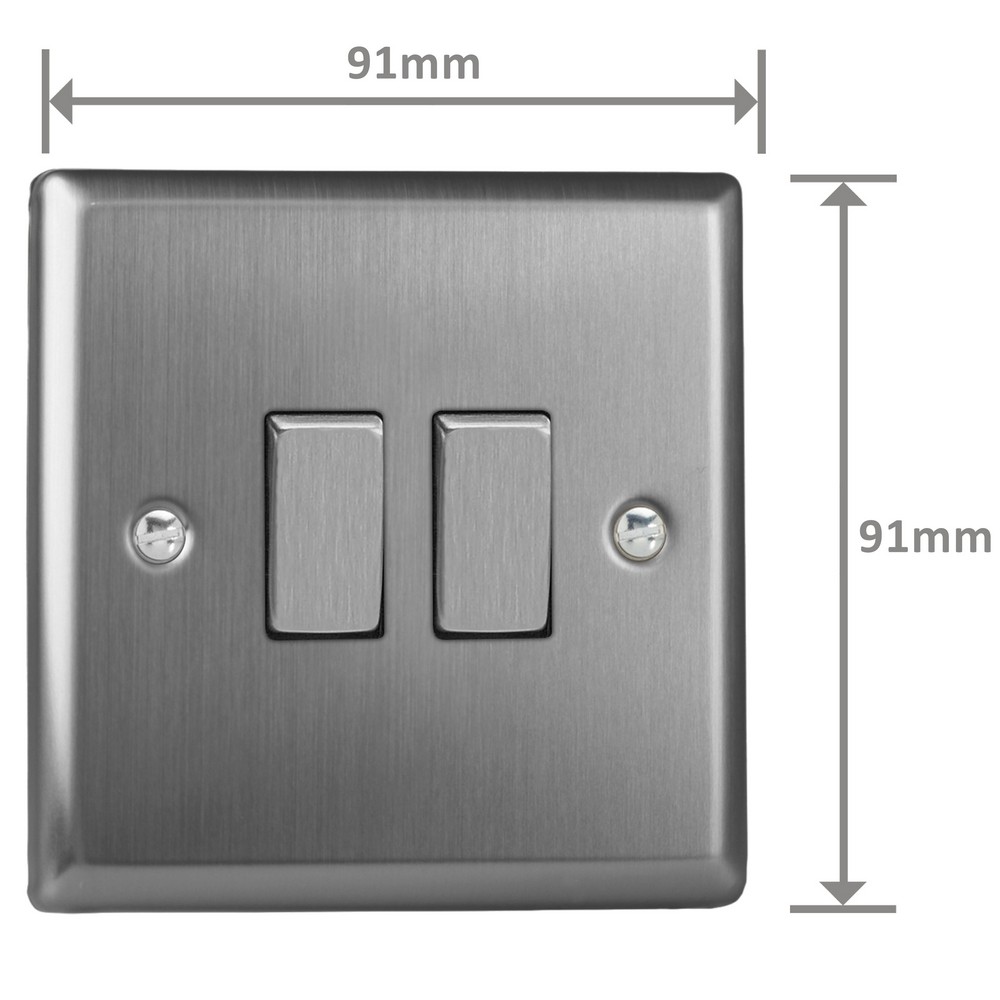

Dimensions: 91x91x25mm

Faceplate Depth: 8mm

Net Weight: 146g

Gross Weight: 148g

Fixing Centres: 60.3mm

Depth from Mounting Face: 11.4mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  One 1- or 2-Way switch alongside one intermediate switch, the answer for landings and hallways

  Suitable for controlling both mains and low voltage lighting

  Intermediate switch for controlling one light from three or more places

  10A rated

  Bevel-edge faceplate, 8mm deep with chrome screws, fits a 16mm back box

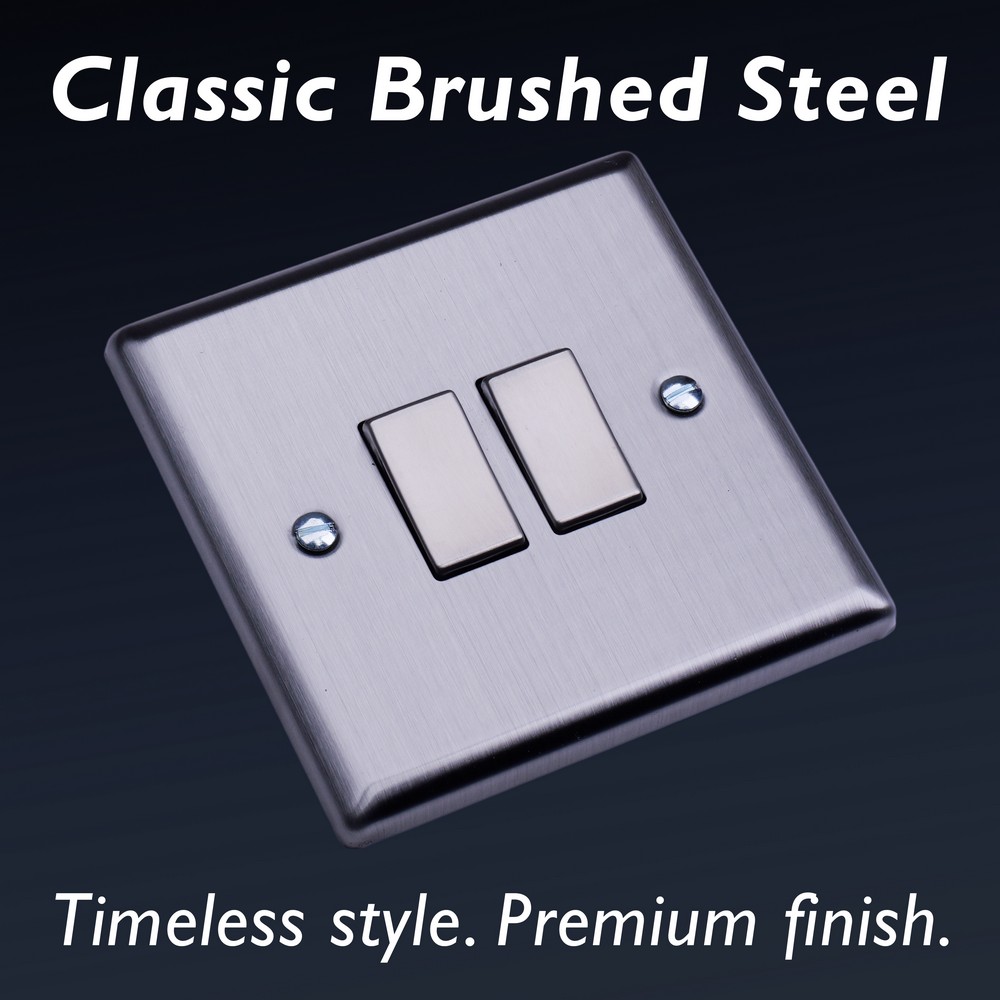

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.
