Data Sheet
Product Code: XT6UW
Product Description: 13A Unswitched Fused Spur
Range: Classic
Finish: Brushed Steel
Product Category: Fused Spur Connection Units
Insert/Knob Colour: White Insert
Barcode: 5021575032505

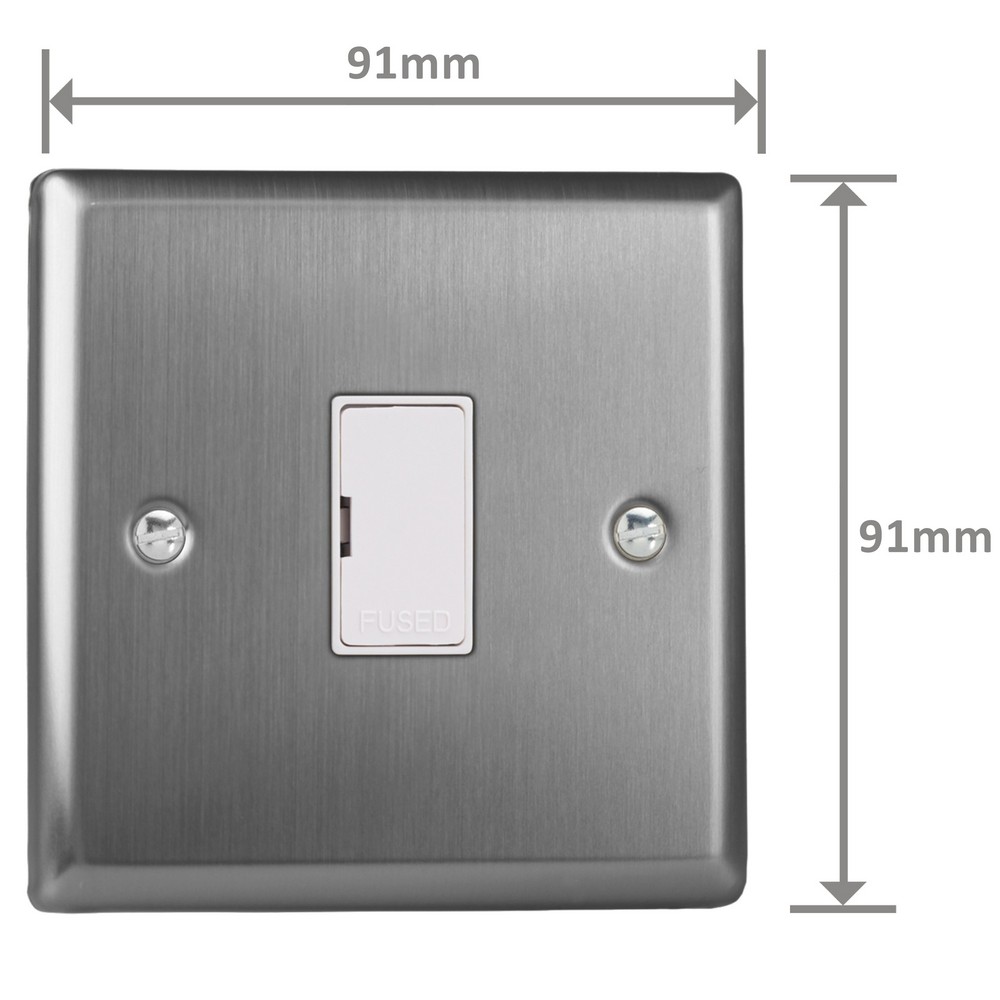

Dimensions: 91x91x30mm
Faceplate Depth: 8mm
Net Weight: 156g
Gross Weight: 158g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.2mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Holds standard 25.4x6.4mm fuse
Replaceable 13A fuse included
Bevelled edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Brushed Steel Finish
Stunning Brushed Steel continues to be a popular finish with interior designers and all those wanting accessories with timeless appeal. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 11th February 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
