Data Sheet

Product Code: XT5UACW

Product Description: Double Socket with 20W Shared USB A & C Charging Ports

Range: Classic

Finish: Brushed Steel

Product Category: Sockets with USB A Charging

Insert/Knob Colour: White Insert

Barcode: 5021575009323

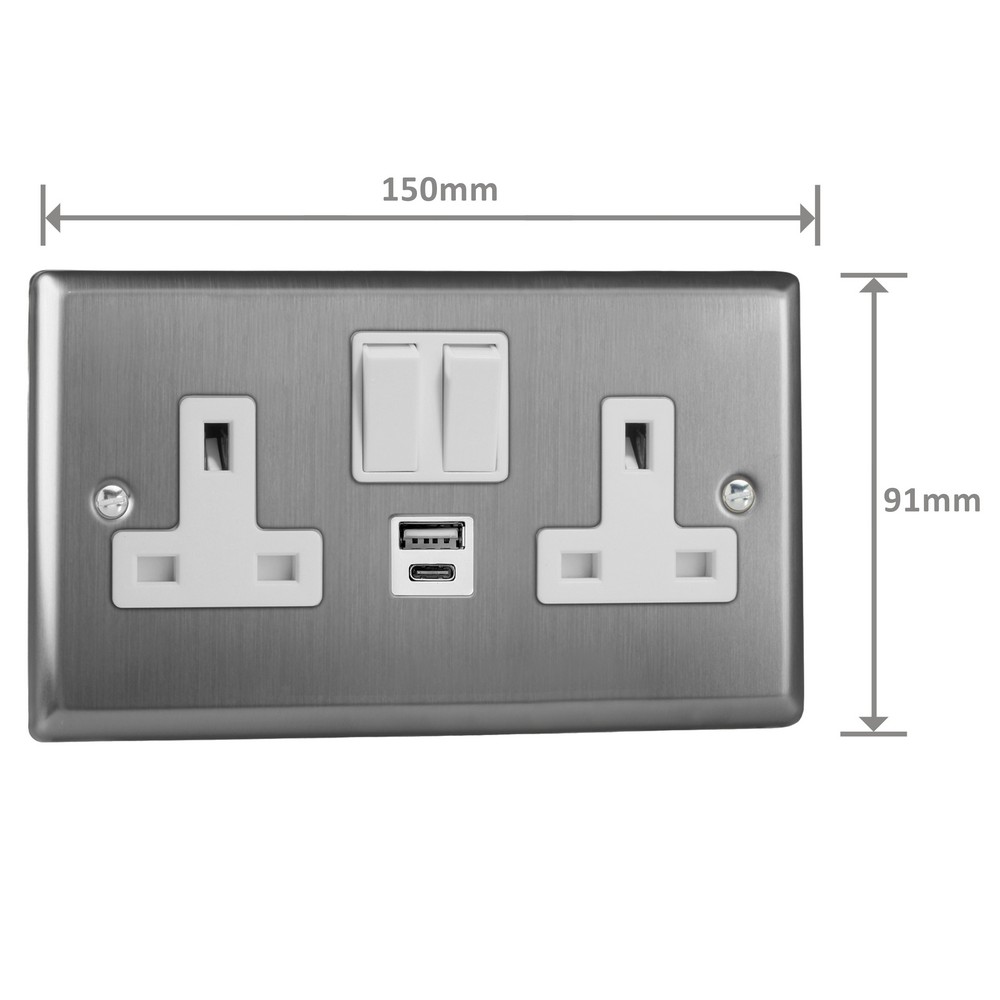

Dimensions: 91x150x31mm

Faceplate Depth: 8mm

Net Weight: 200g

Gross Weight: 202g

Fixing Centres: 120.6mm

Depth from Mounting Face: 18.5mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: USB: 20W

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Please note recommended back box depth relies on efficient cable routing.. Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  20W shared between the USB-A and USB-C ports

  Power Delivery 3.0 and Qualcomm Quick Charge 3.0 fast charging

  Use any USB-A or USB-C cable

  Both sockets stay free for other appliances

  Double pole switching isolates live and neutral for added safety

  Dual earth terminals for a secure earth connection

  Bevel-edge faceplate, 8mm deep with chrome screws, fits a 25mm back box

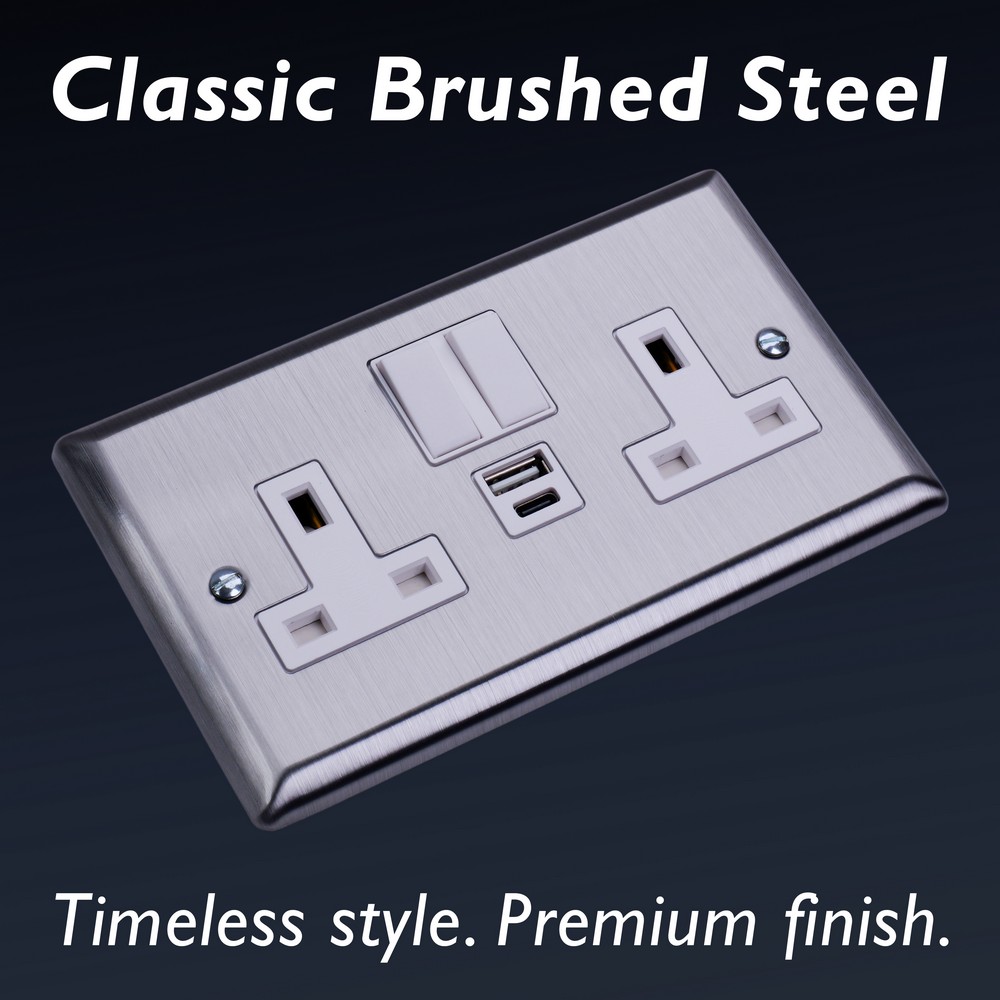

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

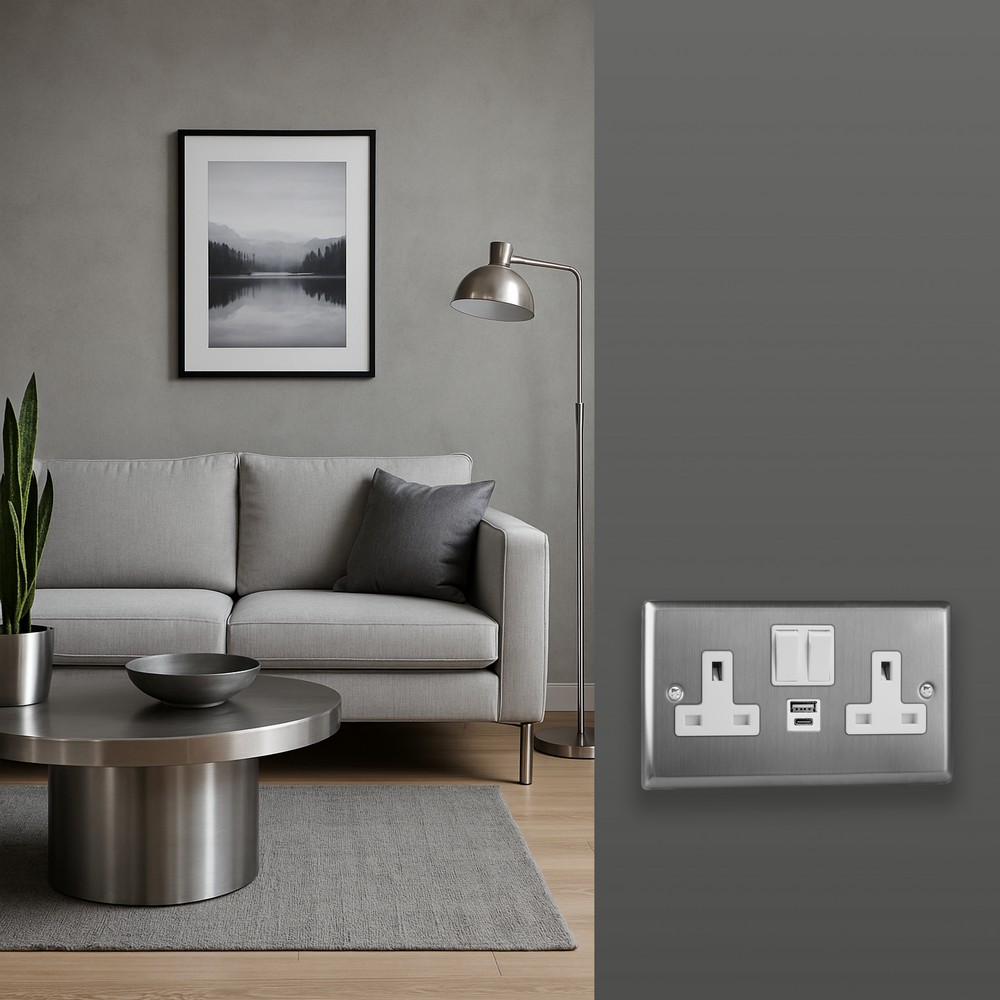

Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.
