Data Sheet

Product Code: XSRP2AW

Product Description: 1-Gang 2A Round Pin Socket

Range: Value

Finish: Matt Chrome

Product Category: Round Pin Sockets

Insert/Knob Colour: White Insert

Barcode: 5021575830910

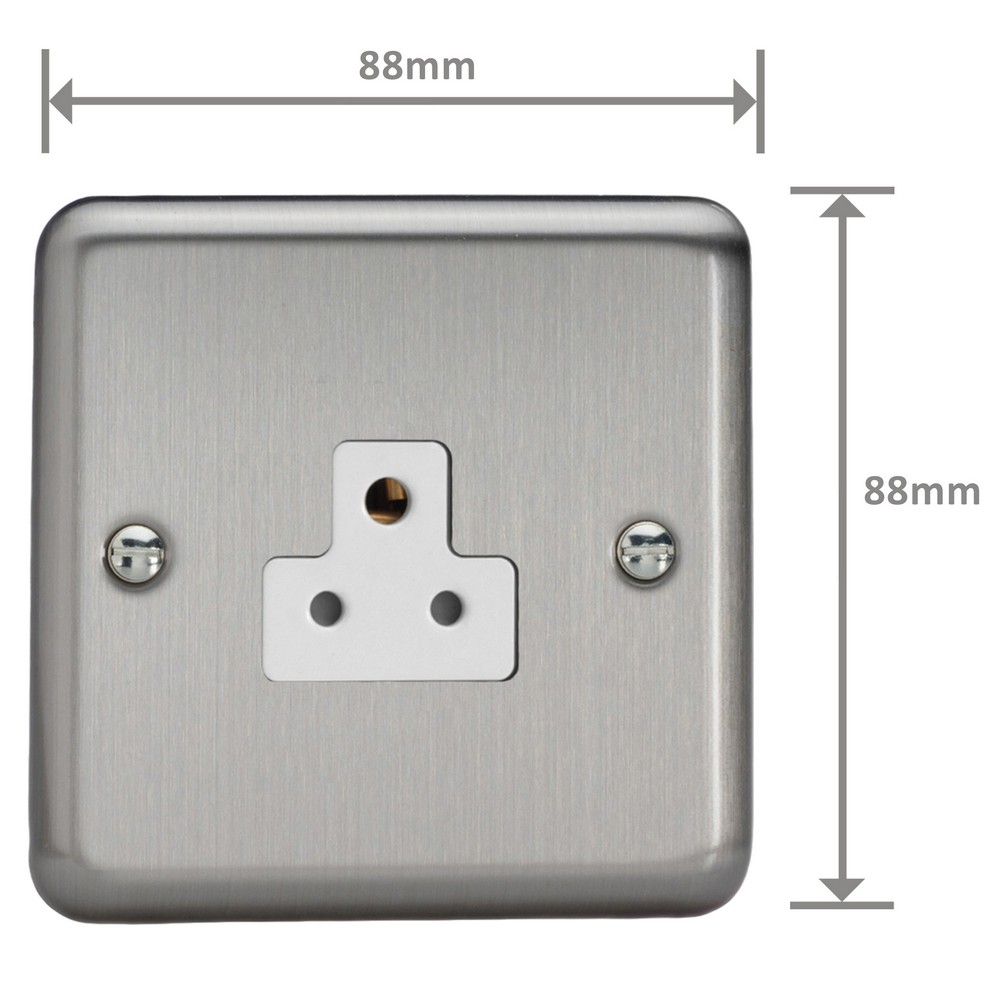

Dimensions: 88x88x24mm

Faceplate Depth: 7mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 15.5mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 2A

Maximum Current Rating: 2A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Neutral) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 546

Commodity Code: 85366990

Declaration of Conformity

Product Features

  For use in lighting circuits up to 460W in conjunction with wall switches

  Curved edge faceplate

Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
