Instruction leaflet PDF

Data sheet: XS6FOND

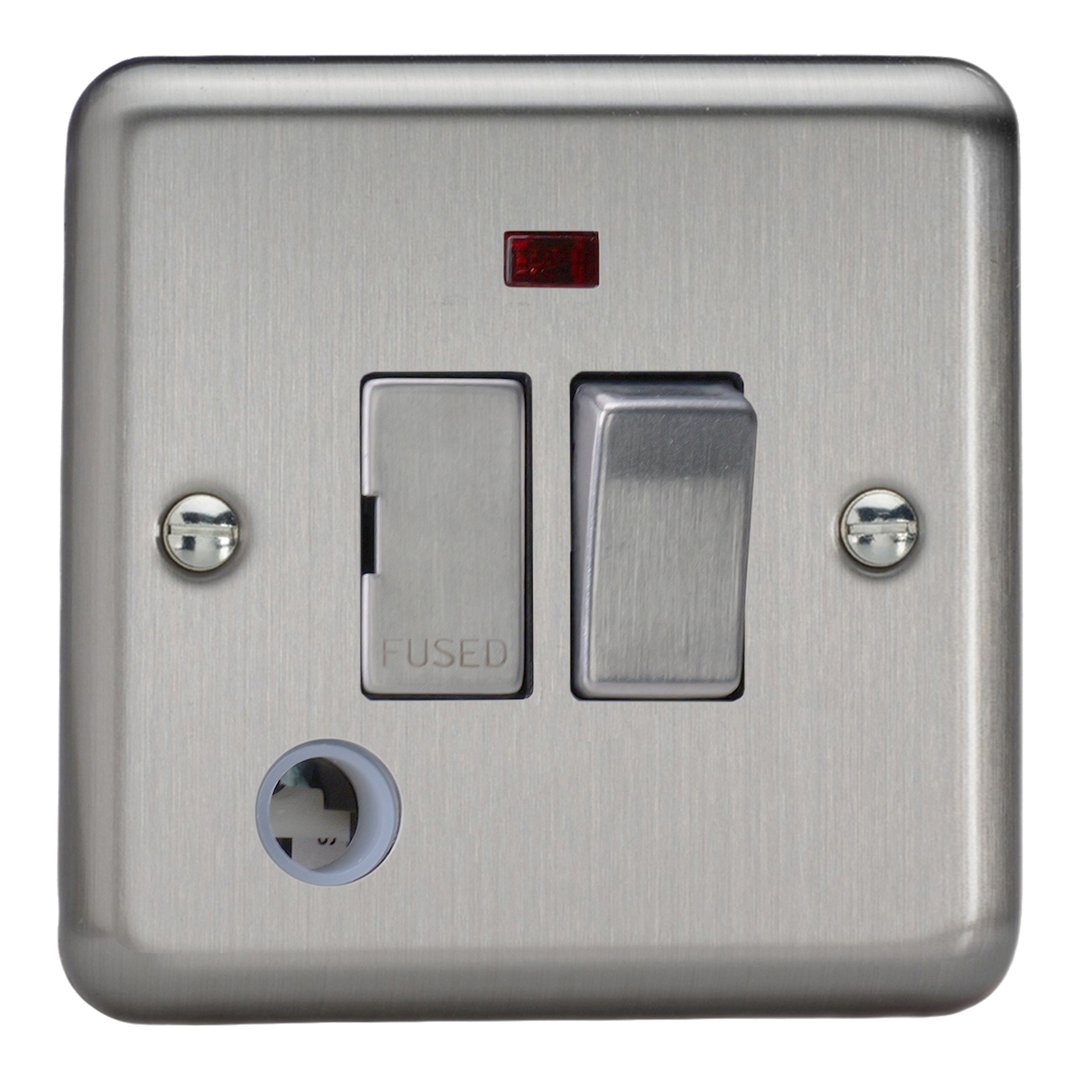

13A Switched Fused Spur with Neon with Flex Outlet, Value Matt Chrome (XS6FOND)

Data sheet

XS6FOND 13A Switched Fused Spur with Neon with Flex Outlet

Name: 13A Switched Fused Spur with Neon with Flex Outlet
Brand: VARILIGHT
SKU: XS6FOND

Fused Spur with Flex Outlet & Neon Indicator

Range Value Finish Matt Chrome

Product features

Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Cable clamp keeps the flex secure
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Raised profile faceplate, 7mm deep with chrome screws, fits a 25mm back box

Product

Product code: XS6FOND
Category: Fused Spur Connection Units
Range: Value
Finish: Matt Chrome
Insert / knob colour: Brushed Steel Insert
Barcode: 5021575038866

Size and fitting

Dimensions: 88x88x34mm
Faceplate depth: 7mm
Fixing centres: 60.3mm
Depth from mounting face: 16.8mm
Recommended back box depth: 25mm
Net weight: 166g
Gross weight: 168g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 13A
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Value collection

The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome finish

Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
