Data Sheet

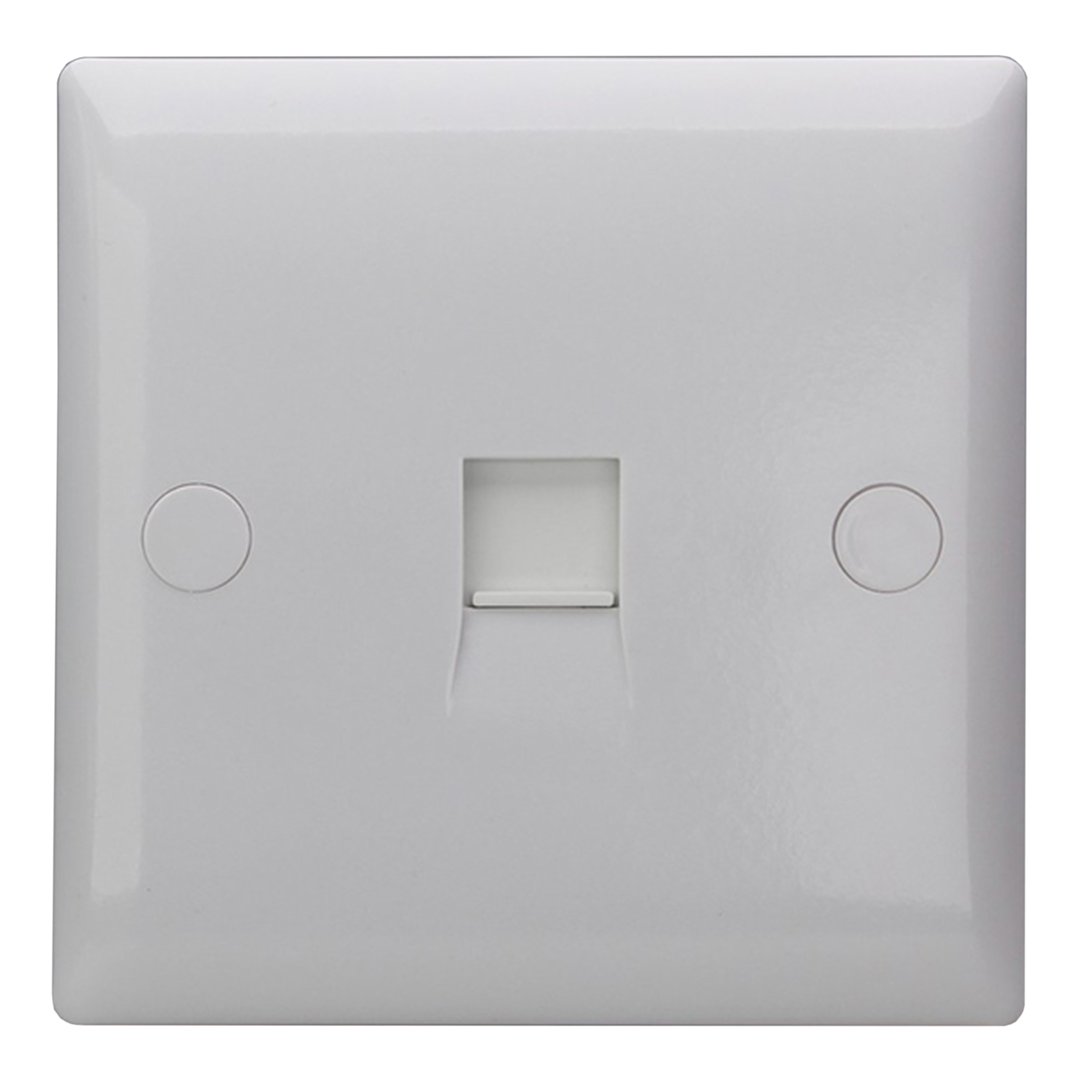

Product Code: XORJ456W
Product Description: 1-Gang RJ45 Cat 6 Socket
Range: Value
Finish: Polar White
Product Category: DataGrid Modules
Insert/Knob Colour: White Insert
Barcode: 5021575918625
Dimensions: 85x85x21mm
Faceplate Depth: 5mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits.
Applicable Safety Standard: BS 6312-2
Commodity Code: 85367000
Product Features
Cat 6 network connection
Clips into any DataGrid faceplate
Combine with other DataGrid modules on one plate
Available in black or white to match the plate inserts
Raised profile faceplate, 5mm deep with push-fit screw covers, fits a 16mm back box
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate an uncomplicated aesthetic at an affordable price point.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
14th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
