Further information:
Data Sheet
Product Code: XO5U2SW
Product Description: Double Socket with 2 x 12W Shared USB A Charging Ports
Range: Value
Finish: Polar White
Product Category: Sockets with USB A Charging
Insert/Knob Colour: White Insert
Barcode: 5021575050431
Dimensions: 85x146x31mm
Faceplate Depth: 5mm
Net Weight: 220g
Gross Weight: 222g
Fixing Centres: 120.6mm
Depth from Mounting Face:
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: USB: 12W
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Please note recommended back box depth relies on efficient cable routing..
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
Product Features
Ideal for charging iPad, iPhone, tablets, mobiles and cameras
Features Varilight Smart Port technology making it suitable for all types of devices.
The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate a uncomplicated aesthetic at an affordable price point.

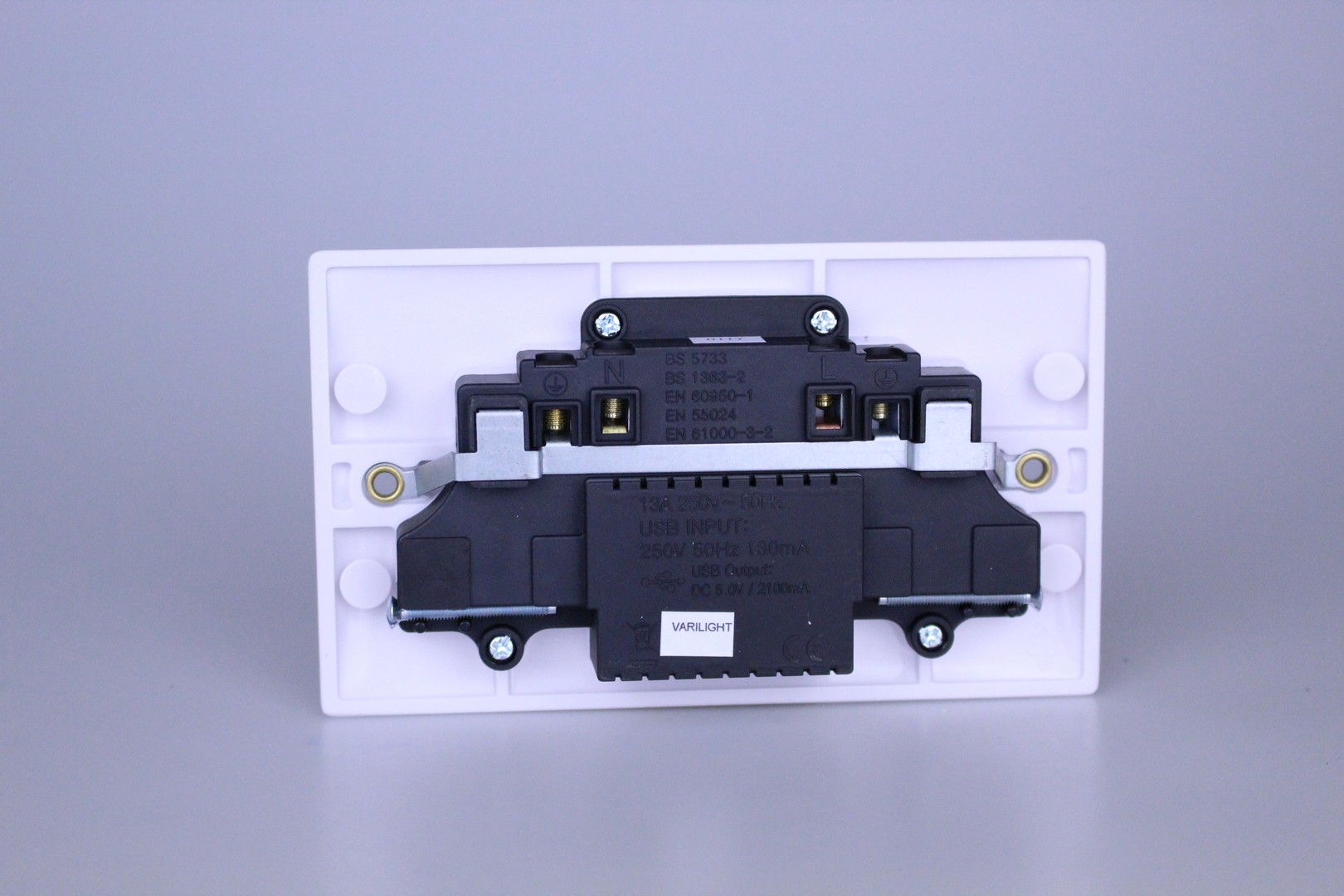

Rear View:
