Data Sheet
Product Code: XO45O
Product Description: 45A Cooker Outlet with Flex Outlet (Single Plate)
Range: Value
Finish: Polar White
Product Category: Cooker Switches
Barcode: 5021575193954
Dimensions: 86x82x13mm
Faceplate Depth: 13mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 45A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 4.8mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 2 x 10mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Applicable Safety Standard: BS 5733
Commodity Code: 85389091
Product Features
Outlet cover for cooker wiring
6-10mm flex outlet at the bottom of the plate
Twin earth for safer operation
Durable white plastic faceplate is anti-bacterial and fully biodegradable
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate a uncomplicated aesthetic at an affordable price point.

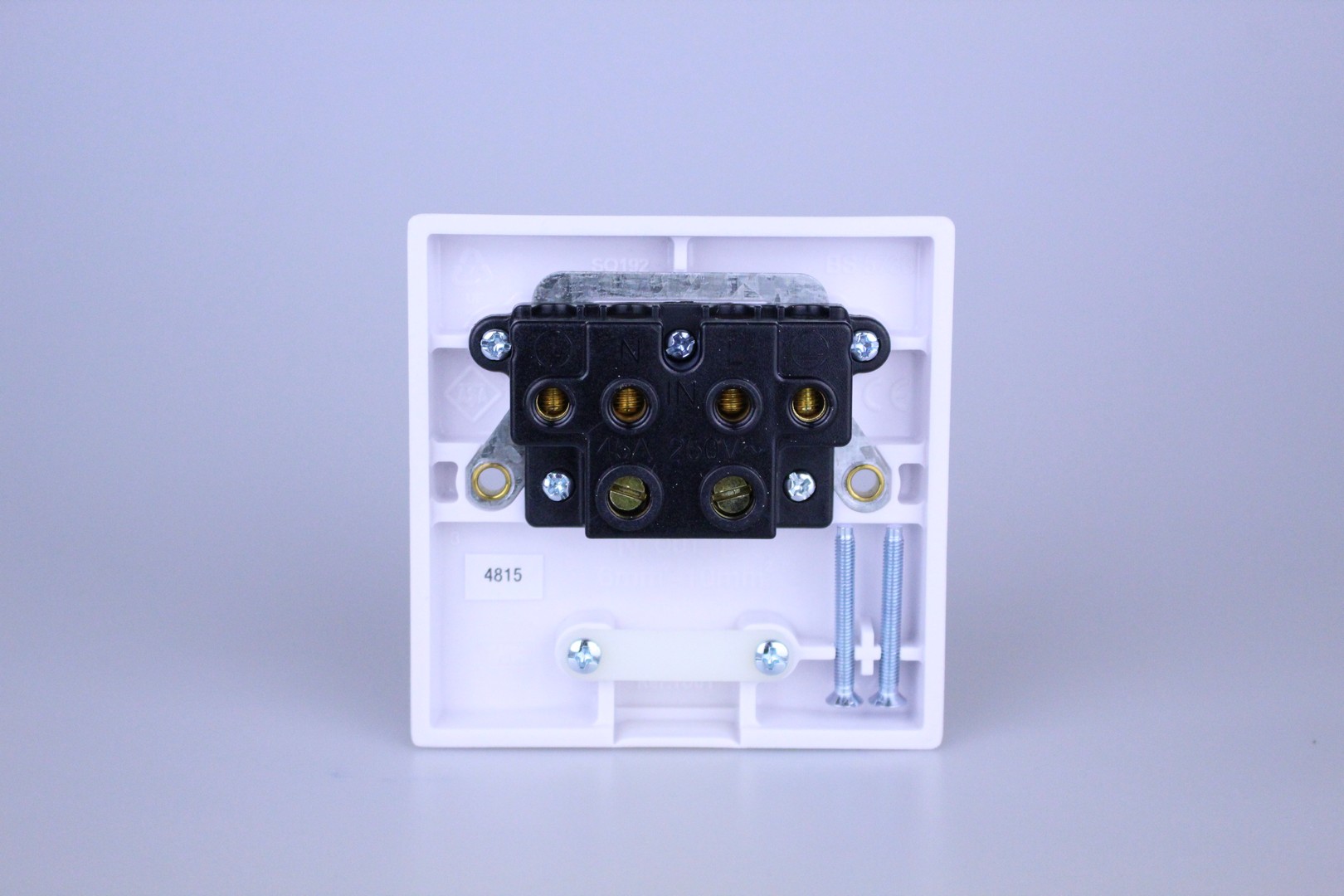

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
15th July 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
