Data Sheet
Product Code: XO20NW
Product Description: 1-Gang 20A Double Pole Rocker Switch with Neon Indicator Light
Range: Value
Finish: Polar White
Product Category: Rocker Switches
Insert/Knob Colour: White Rocker
Barcode: 5021575050189
Dimensions: 85x85x30mm
Faceplate Depth: 5mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 16mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 20A
Maximum Current Rating: 20A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Double pole switching
Neon indicator light
Neon indicator can also be used as a 'Nightlight' to help you find your switch in a darkened room. Click here for a wiring diagram.
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate a uncomplicated aesthetic at an affordable price point.

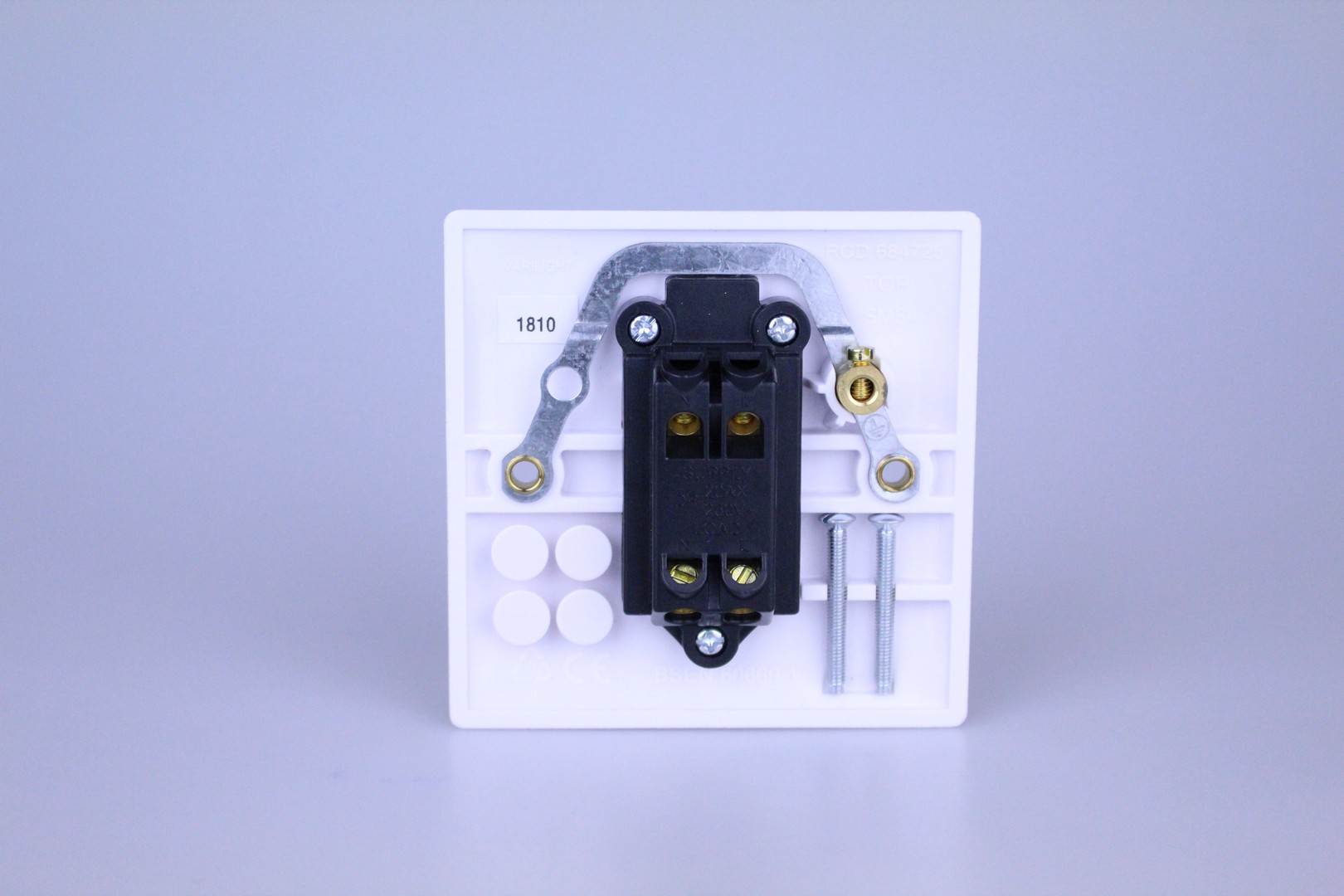

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
21st April 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
