Data Sheet

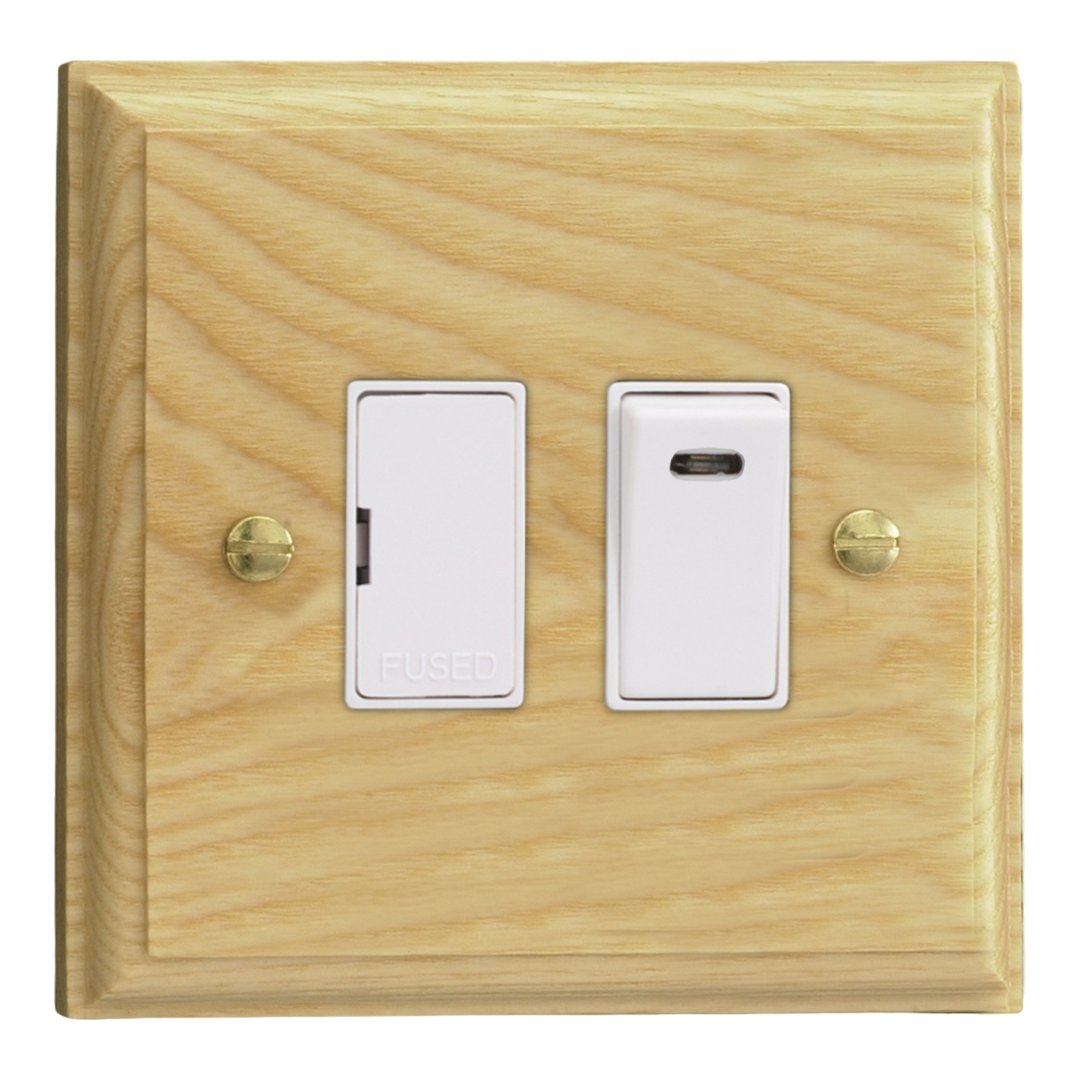

Product Code: XK6NAW
Product Description: 13A Switched Fused Spur with Neon
Range: Kilnwood
Finish: Ash
Product Category: Fused Spur Connection Units
Insert/Knob Colour: White Insert
Barcode: 5021575971255
Dimensions: 96x96x30mm
Faceplate Depth: 15mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85389091
Product Features
Double pole switching
Neon indicator light
Holds standard 25.4x6.4mm fuse
Replaceable 13A fuse included
High grade sustainable timber
Kilnwood Collection
The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability
Ash Finish
The natural grain of the Ash finish means that each product features its own distinct patterns and textures, contributing to a completely unique look. Its light finish and natural tones make it easy to match with any contemporary interior
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
30th April 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
