Data Sheet
Product Code: XK20NBEW

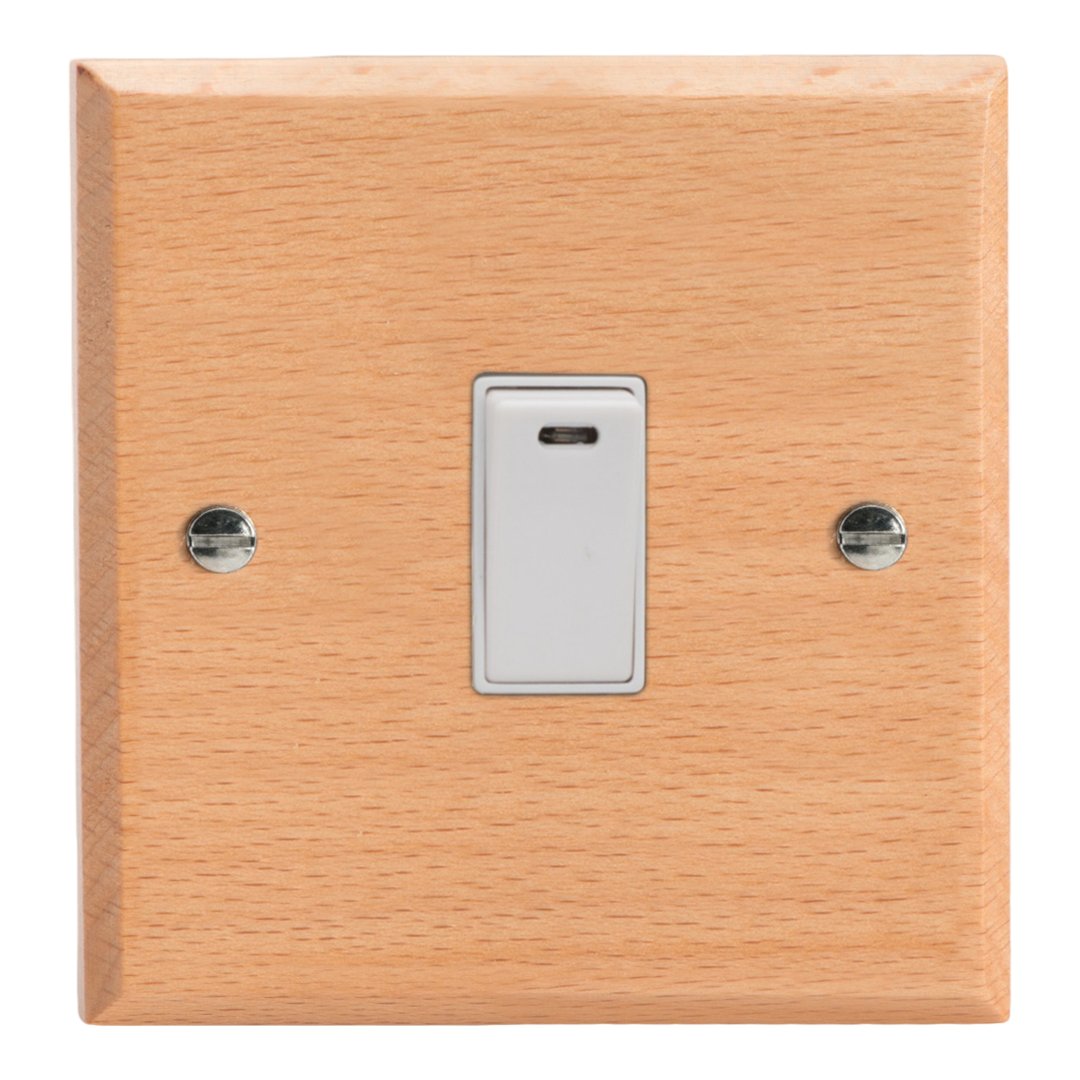

Product Description: 1-Gang 20A Double Pole Rocker Switch with Neon Indicator Light
Range: Kilnwood
Finish: Scandic Beech
Product Category: Rocker Switches
Insert/Knob Colour: White Rocker
Barcode: 5021575970425
Dimensions: 96x96x30mm
Faceplate Depth: 15mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 16mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 20A
Maximum Current Rating: 20A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Double pole switching
Neon indicator light
High grade sustainable timber
Neon indicator can also be used as a 'Nightlight' to help you find your switch in a darkened room. Click here for a wiring diagram.
Kilnwood Collection
The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability
Scandic Beech Finish
With its subtle, yet natural grain, the Beech finish provides a uniformed look. Its warm, natural tones and soft character enhance the ambiance of any space
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
01st May 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
