Data sheet: XGRP2AB
Data sheet
XGRP2AB 1-Gang 2A Round Pin Socket
Product features
- 2A round pin socket
- Puts table and standard lamps on the light switch
- Classic round pin fitting in a finish to match the room
- Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box
Product
- Product code
- XGRP2AB
- Category
- Round Pin Sockets
- Range
- Classic
- Finish
- Georgian Brass
- Insert / knob colour
- Black Insert
- Barcode
- 5021575750904
Size and fitting

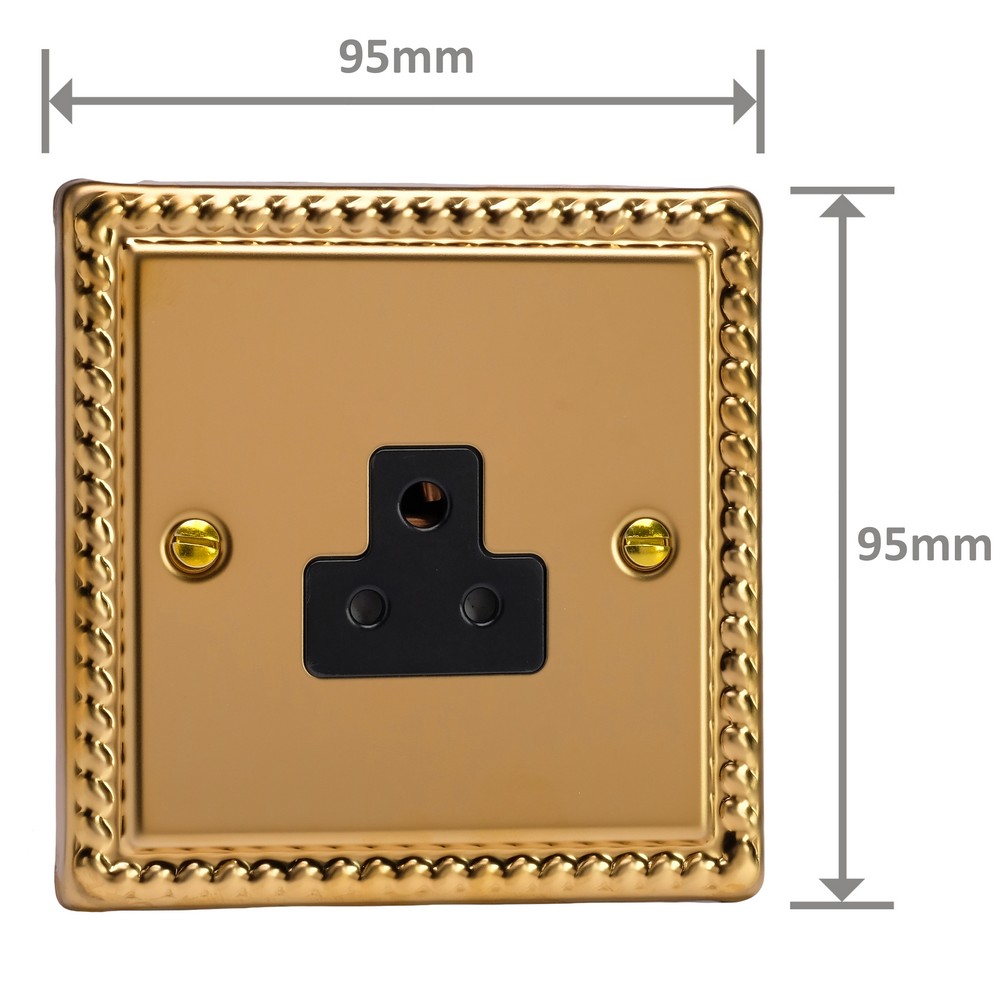

- Dimensions
- 95x95x24mm
- Faceplate depth
- 7mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 15.2mm
- Recommended back box depth
- 25mm
- Net weight
- 136g
- Gross weight
- 138g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 2A
- Maximum current rating
- 2A
- Terminal (Live)
- 3.3mm, capacity 3 x 1.5mm²
- Terminal (Neutral)
- 3.3mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS 546
- Commodity code
- 85366990
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
