Click below to print the data sheet for XGPGY2
Further information:
Data Sheet
Product Code: XGPGY2
Product Description: 2-Gang PowerGrid Plate including Yoke (Single Plate)
Range: Classic
Finish: Georgian Brass
Product Category: Grid Faceplates
Barcode: 5021575292510

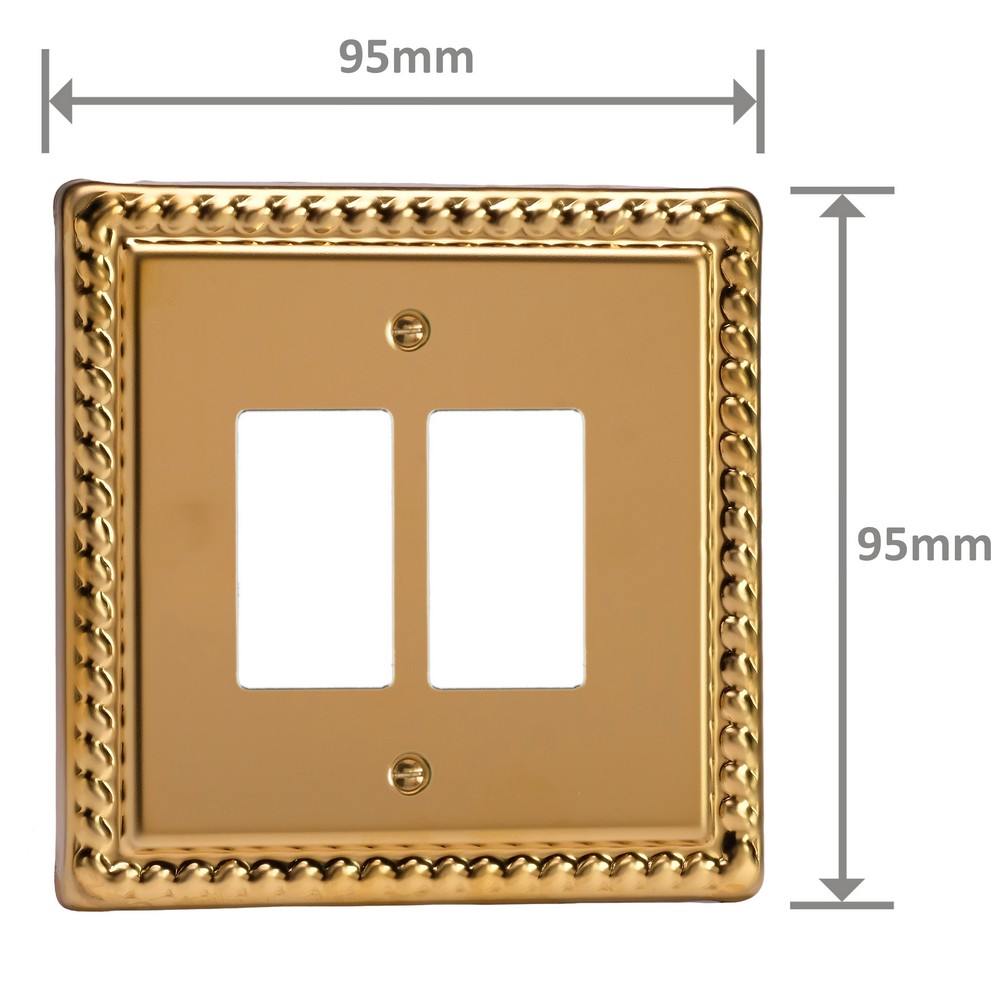

Dimensions: 95x95x*mm
Faceplate Depth: 7mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: N/A
Maximum Current Rating: -
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed (via PowerGrid Frame).
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
Product Features
Build the exact switch combination the room needs
Supplied with the grid frame pictured below
Choose exactly the PowerGrid modules you need
Modules purchased separately
Bevel-edge faceplate, 7mm deep with brass screws
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
04th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
