Data Sheet
Product Code: XG6NW
Product Description: 13A Switched Fused Spur with Neon
Range: Classic
Finish: Georgian Brass
Product Category: Fused Spur Connection Units
Insert/Knob Colour: White Insert
Barcode: 5021575750546

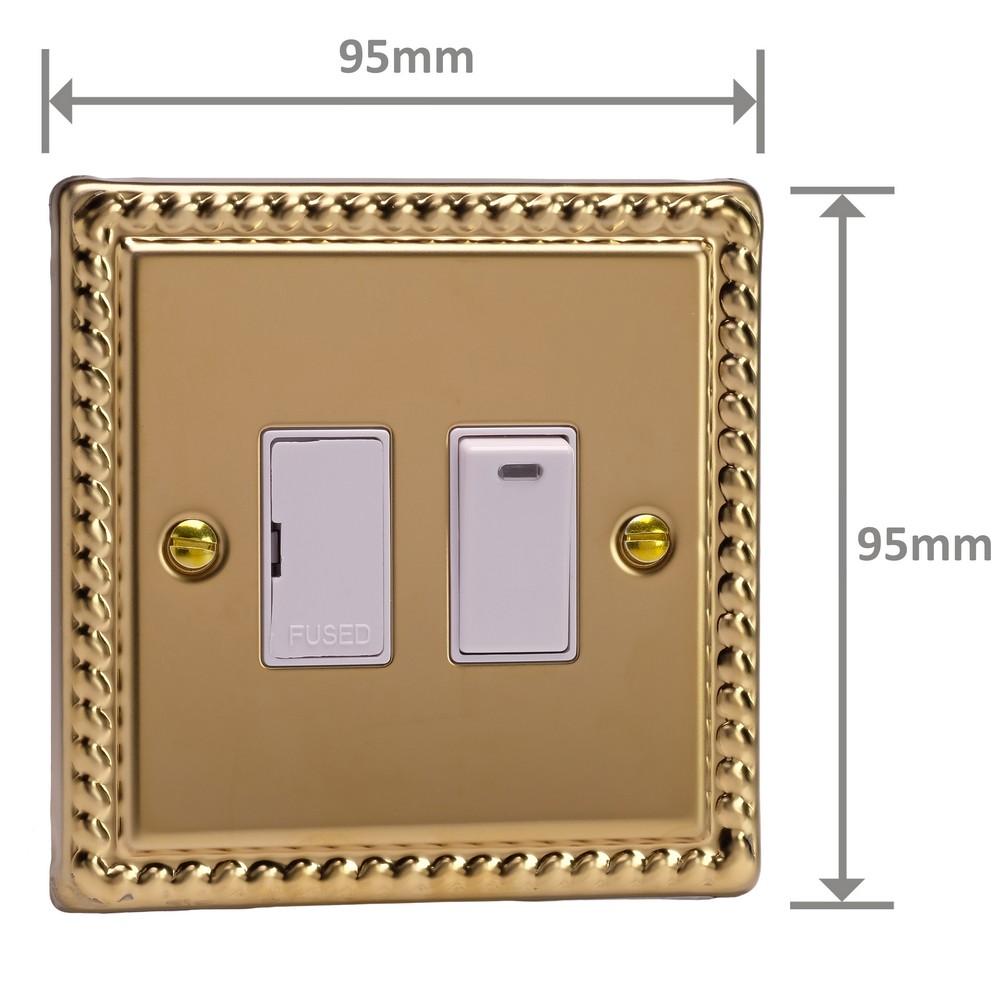

Dimensions: 95x95x30mm
Faceplate Depth: 7mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85389091
Product Features
Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

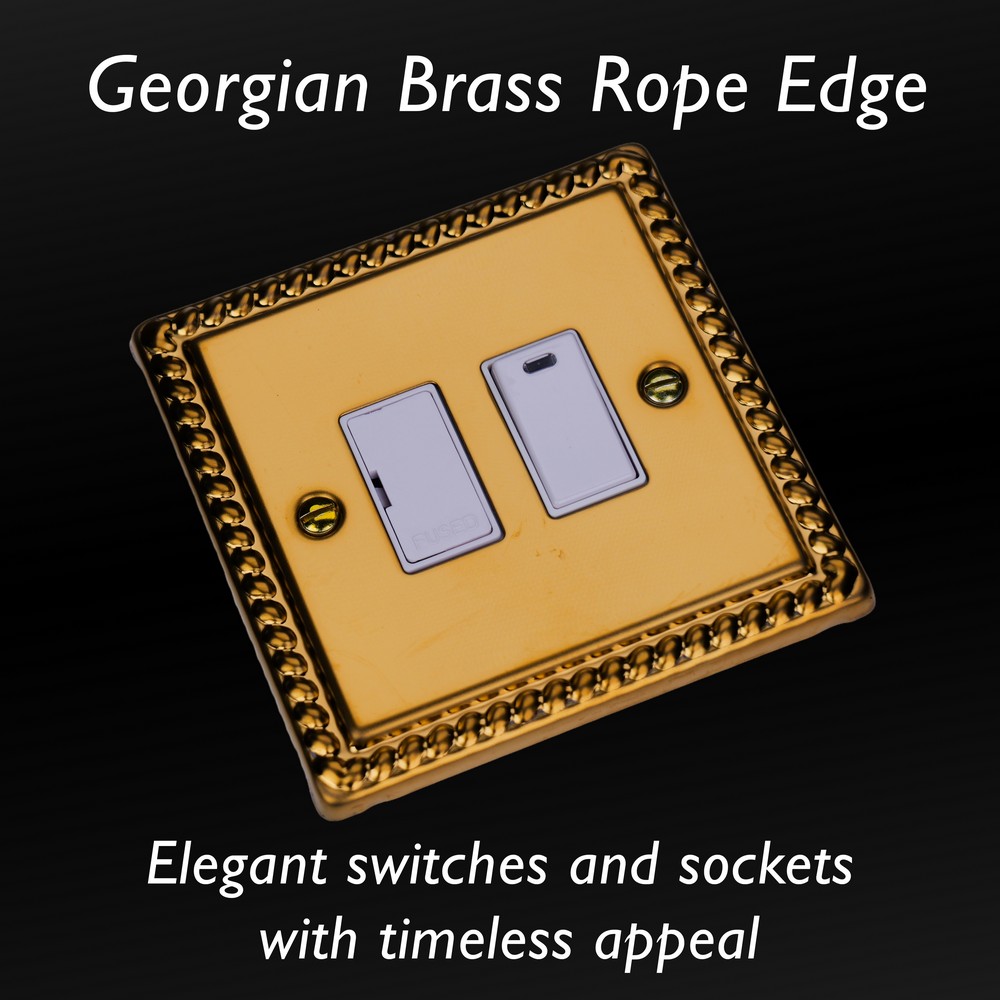

Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
