Data Sheet
Product Code: XG4DB
Product Description: 1-Gang 13A Double Pole Switched Socket
Range: Classic
Finish: Georgian Brass
Product Category: Sockets
Insert/Knob Colour: Brass/Black Insert
Barcode: 5021575750294

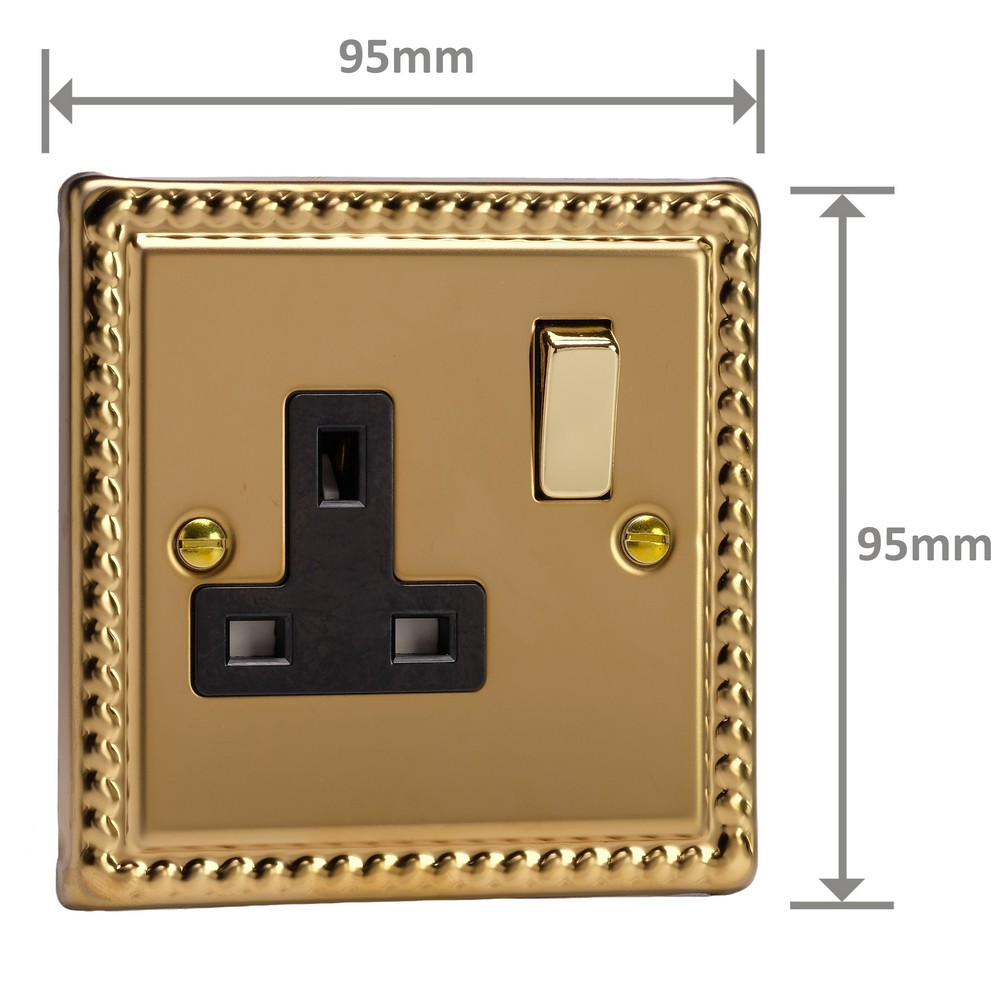

Dimensions: 95x95x31mm
Faceplate Depth: 7mm
Net Weight: 136g
Gross Weight: 138g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.1mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
Product Features
Double pole switching isolates live and neutral for added safety
Dual earth terminals for a secure earth connection
Large termination points for easy wiring
Tight tolerances for a secure plug fit
Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
19th September 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
