Data Sheet
Product Code: XFB20D

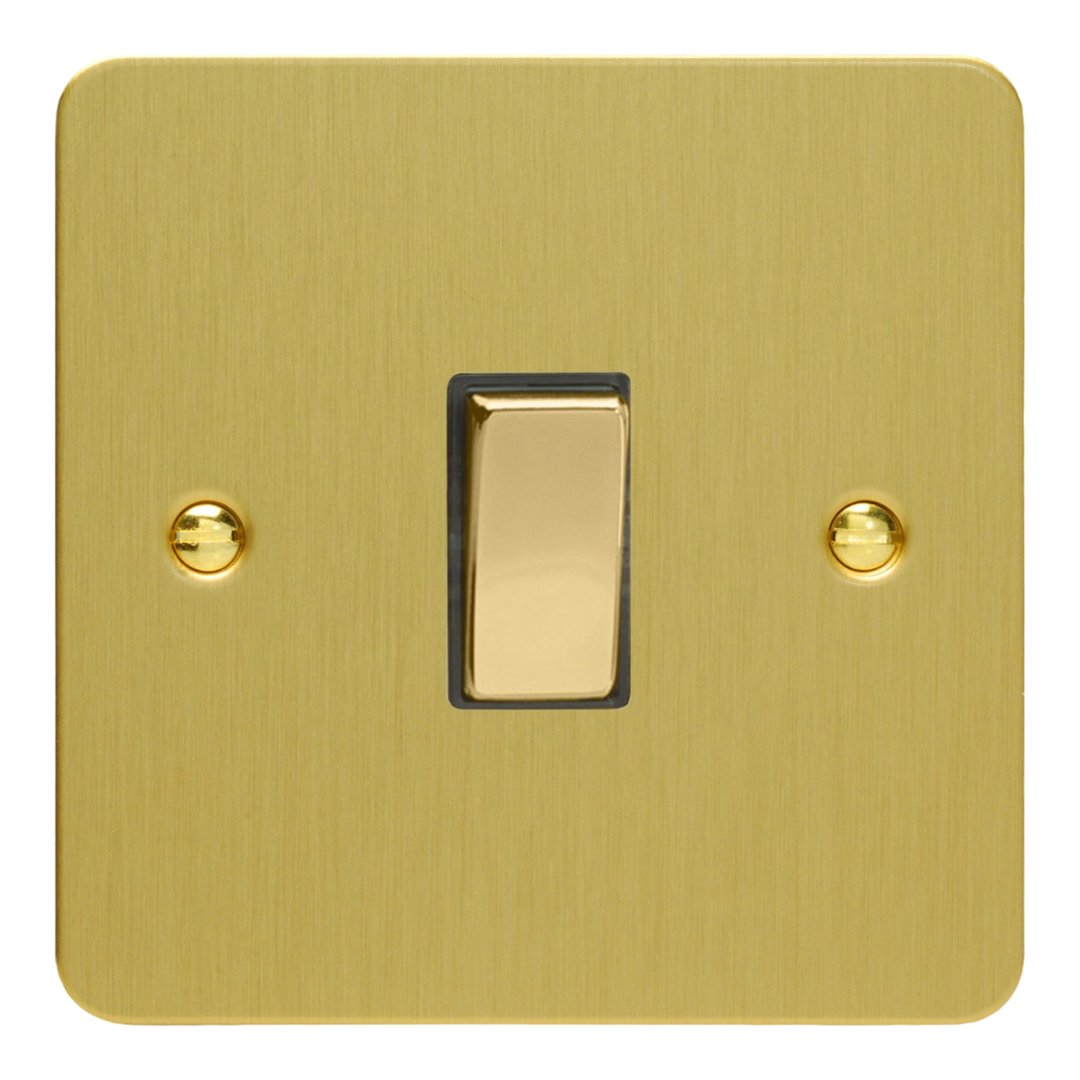

Product Description: 1-Gang 20A Double Pole Rocker Switch
Range: Ultraflat
Finish: Brushed Brass
Product Category: Rocker Switches
Insert/Knob Colour: Brass Rocker
Barcode: 5021575901887
Dimensions: 89x89x30mm
Faceplate Depth: 1mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face: 23.8mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 20A
Maximum Current Rating: 20A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 4 x 2.5mm²
Product Features
Double pole switching
Contemporary, ultra-slim faceplate
Ultraflat Collection
The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.Brushed Brass Finish
The elegant Brushed Brass finish is paired with polished brass metal rockers and matching brass screws, with the option of black or white socket inserts. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 10th December 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
