Data Sheet

Product Code: XDYKR1IS.PD

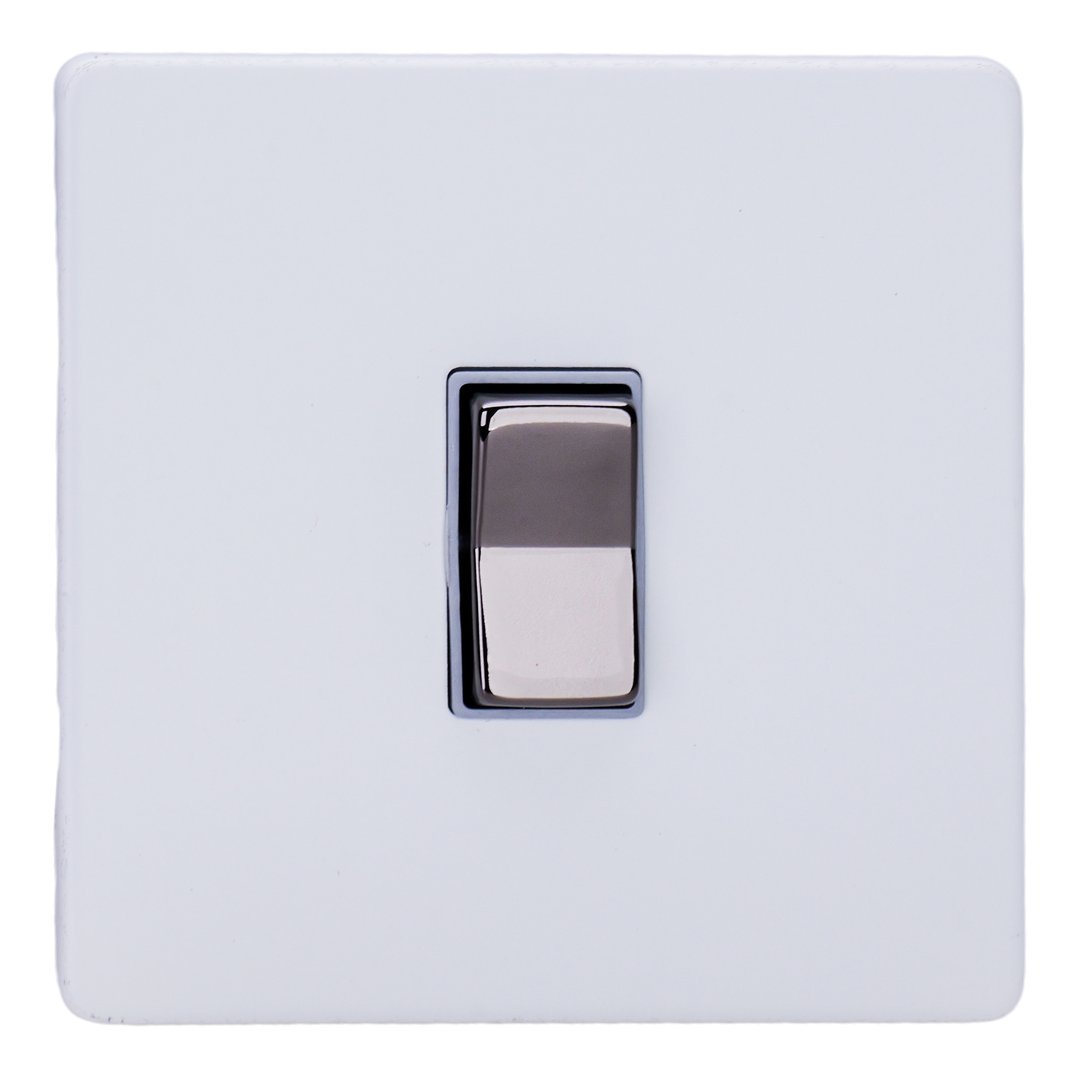

Product Description: 1-Gang 10A Centre-Off Retractive Switch

Range: Screwless

Finish: Primed Paintable

Product Category: Rocker Switches

Insert/Knob Colour: Iridium Rocker

Barcode: 5021575034813

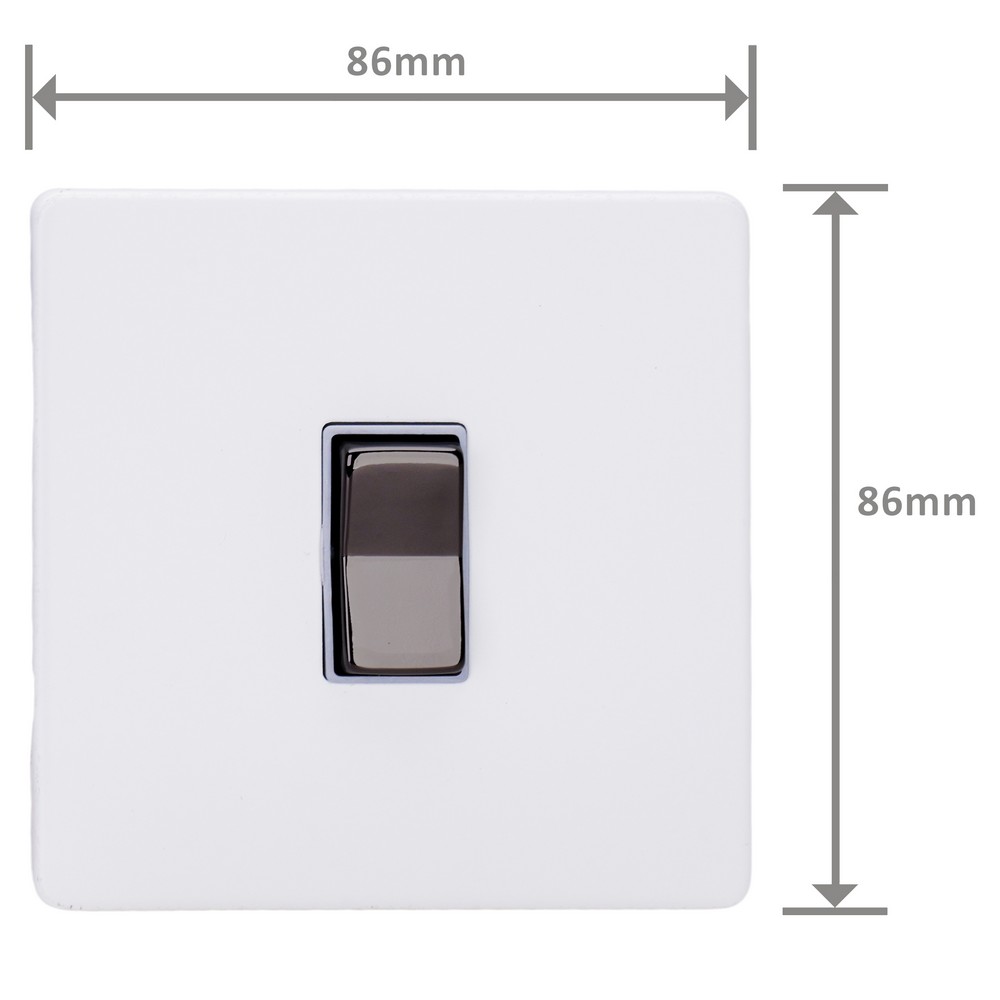

Dimensions: 86x86x23mm

Faceplate Depth: 4mm

Net Weight: 116g

Gross Weight: 118g

Fixing Centres: 60.3mm

Depth from Mounting Face: 18.4mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  Push up or down and it springs back to the centre, ready for the next press

  For blinds, doorbells and anything that needs a momentary signal rather than a permanent on

  Install a V-Pro Micro Dual Push Control In-Line Dimmer Pack behind the switch for up and down dimming with nothing on the wall but the switch itself.

  10A rated

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Primed Paintable Finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.
