Data Sheet
Product Code: XDYFIBS.BZ

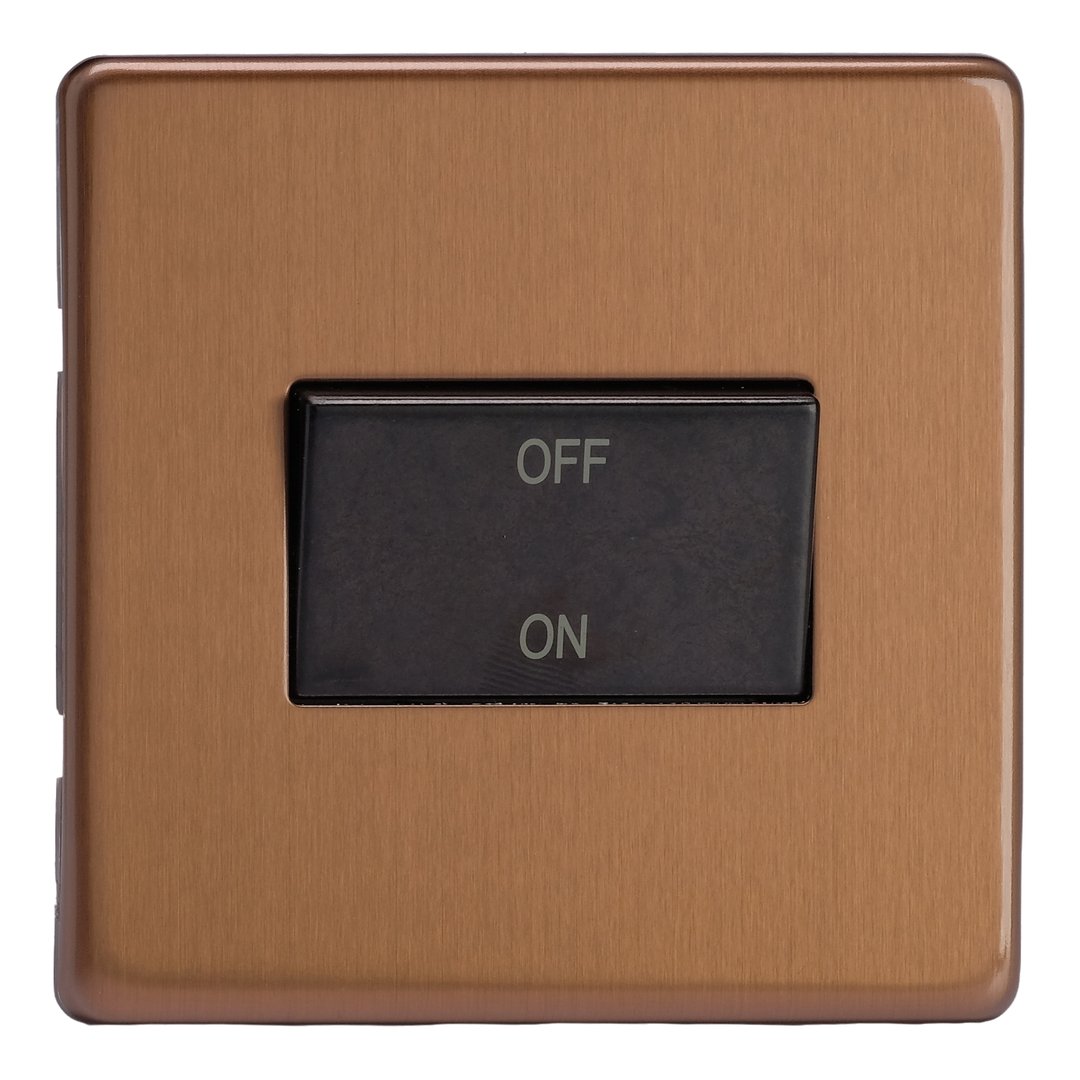

Product Description: 10A Fan Isolating Switch (3 Pole)
Range: Urban Screwless
Finish: Brushed Bronze
Product Category: Rocker Switches
Insert/Knob Colour: Black Rocker
Barcode: 5021575004656
Dimensions: 86x86x23mm
Faceplate Depth: 4mm
Net Weight: 156g
Gross Weight: 158g
Fixing Centres: 60.3mm
Depth from Mounting Face: 15.7mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Product Features
Triple pole switching isolates live, neutral and switched live
Wide rocker for easy operation
Isolates live, neutral and switched live so the fan can be worked on safely
Ideal for bathroom and kitchen extractor fans
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box
Urban Screwless Collection
The Urban Screwless range is inspired by the latest trends in interior design, bringing an edge to stylish spaces. Each finish is presented on a low profile faceplate, with hidden fixings contributing to an understated aesthetic.
Brushed Bronze Finish
Offering a contemporary take on a classical finish, and paired with black inserts, Brushed Bronze suits both traditional and modern spaces.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
12th September 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
