Data Sheet

Product Code: XDYDBS.AC

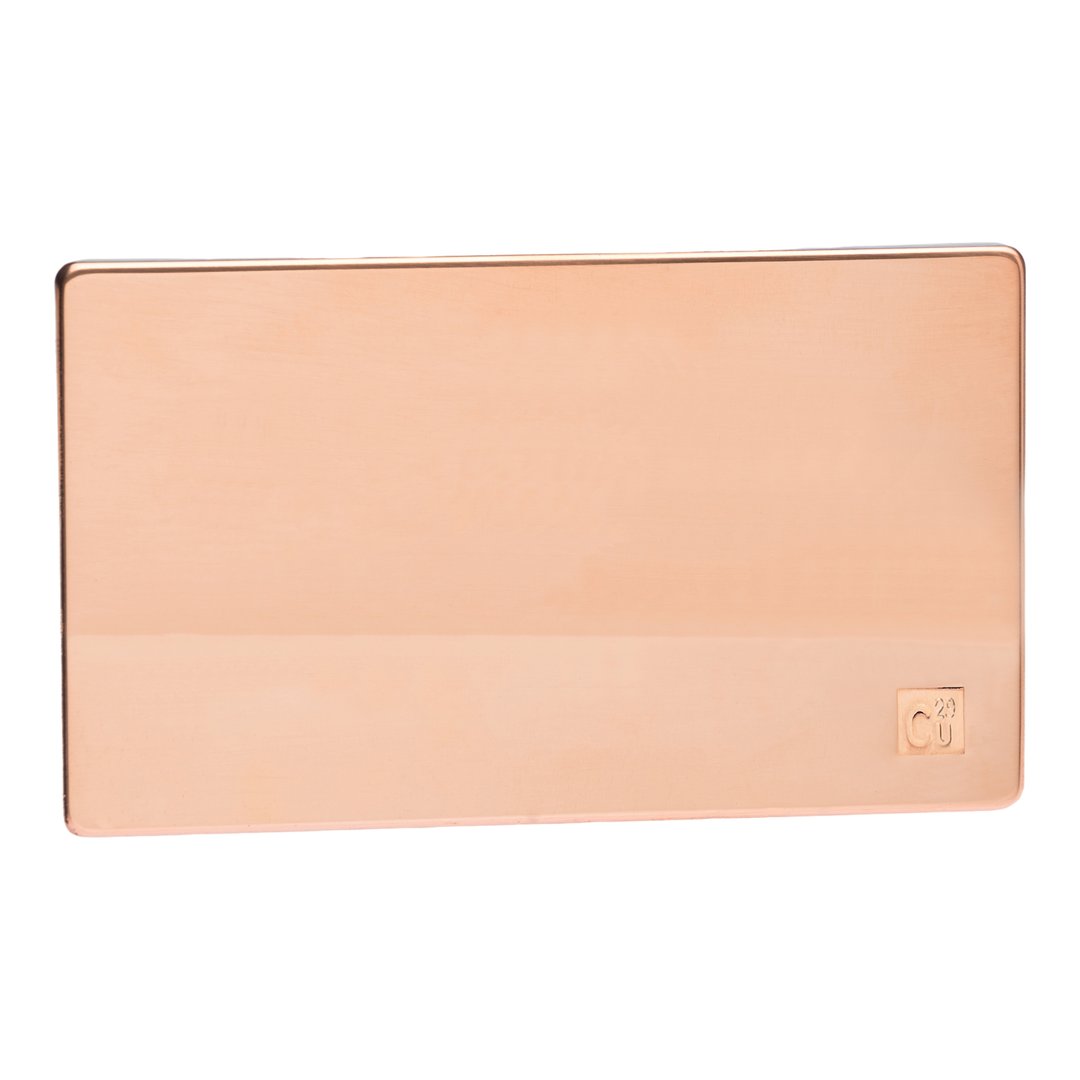

Product Description: Double Blank Plate

Range: Screwless

Finish: Cu29 Raw Copper

Product Category: Other Items

Barcode: 5021575004885

Dimensions: 86x147x9mm

Faceplate Depth: 4mm

Net Weight: 210g

Gross Weight: 212g

Fixing Centres: 120.6mm

Depth from Mounting Face: -1.6mm

Recommended Back Box Depth: 16mm

Operating Voltage: N/A

Maximum Load Rating: N/A

Maximum Current Rating: -

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only.  Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669

Commodity Code: 85381000

Declaration of Conformity

Product Features

  Used to cover unused wall boxes

  Raw copper achieves 99.9% reduction in bacteria within 2 hours of exposure

  Works alongside routine cleaning and sanitisation procedures to reduce the spread of infection. To remain effective the surface must not be coated in any Way. Without regular cleaning this product will tarnish and acquire a warm patina with age, similar to the image below.

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Cu29 Raw Copper Finish
This Anti-microbial finish is made from solid copper. The Cu29 Raw Copper finish will age creating a unique patina over time. This individual style statement will complement both vintage and contemporary interiors alike. In addition to this, raw copper also works alongside routine cleaning to reduce the spread of infection, as bacteria dies rapidly on copper, making this range ideal for both home and healthcare environments.
