Click below to print the data sheet for XDY93IS.PD
Further information:
Data Sheet
Product Code: XDY93IS.PD

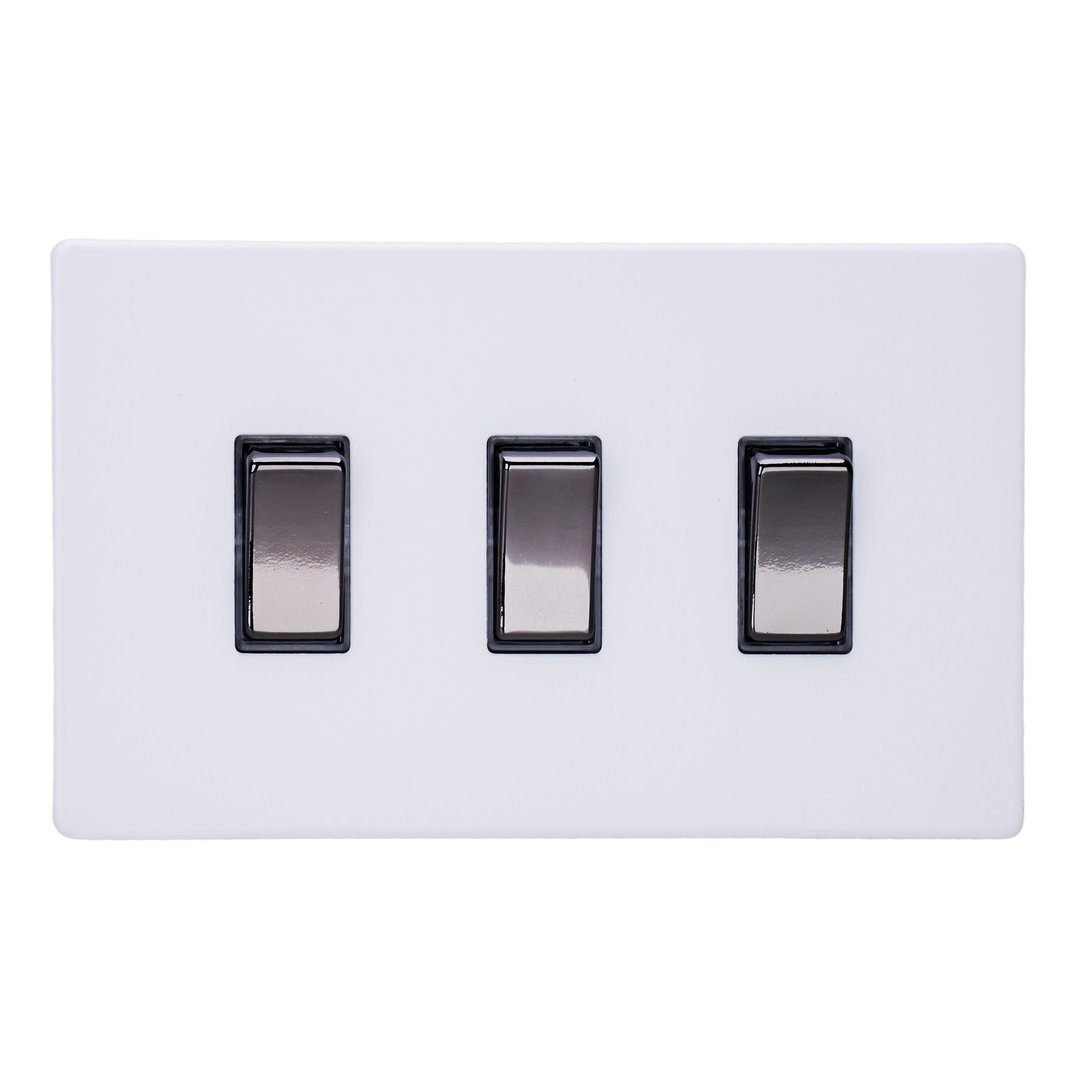

Product Description: 3-Gang 10A 1- or 2-Way Rocker Switch (Twin Plate)
Range: Screwless
Finish: Primed Paintable
Product Category: Rocker Switches
Insert/Knob Colour: Iridium Rockers
Barcode: 5021575034707

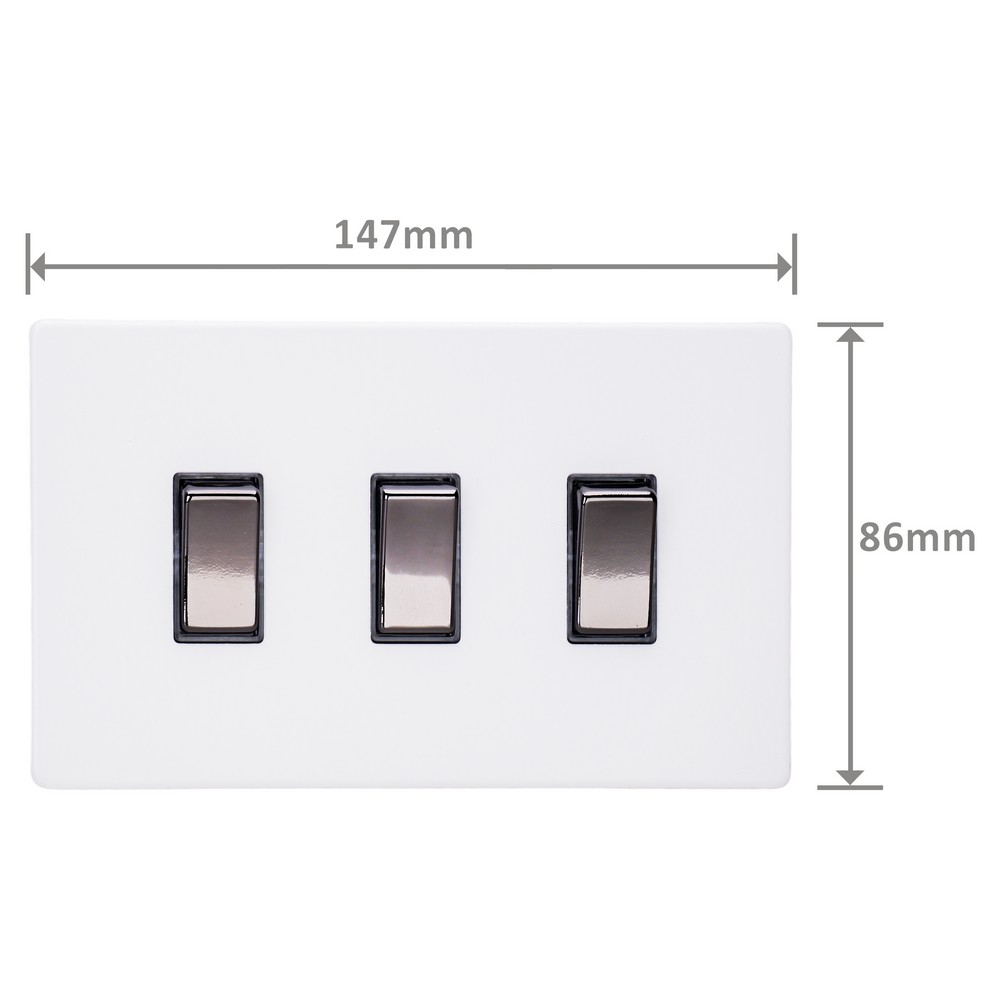

Dimensions: 86x147x25mm
Faceplate Depth: 4mm
Net Weight: 170g
Gross Weight: 172g
Fixing Centres: 120.6mm
Depth from Mounting Face: 18.1mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting
10A rated
Firm, positive switching action
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box
Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Primed Paintable Finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
13th September 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
