Data sheet: XDY6FONVDS.PD

Data sheet

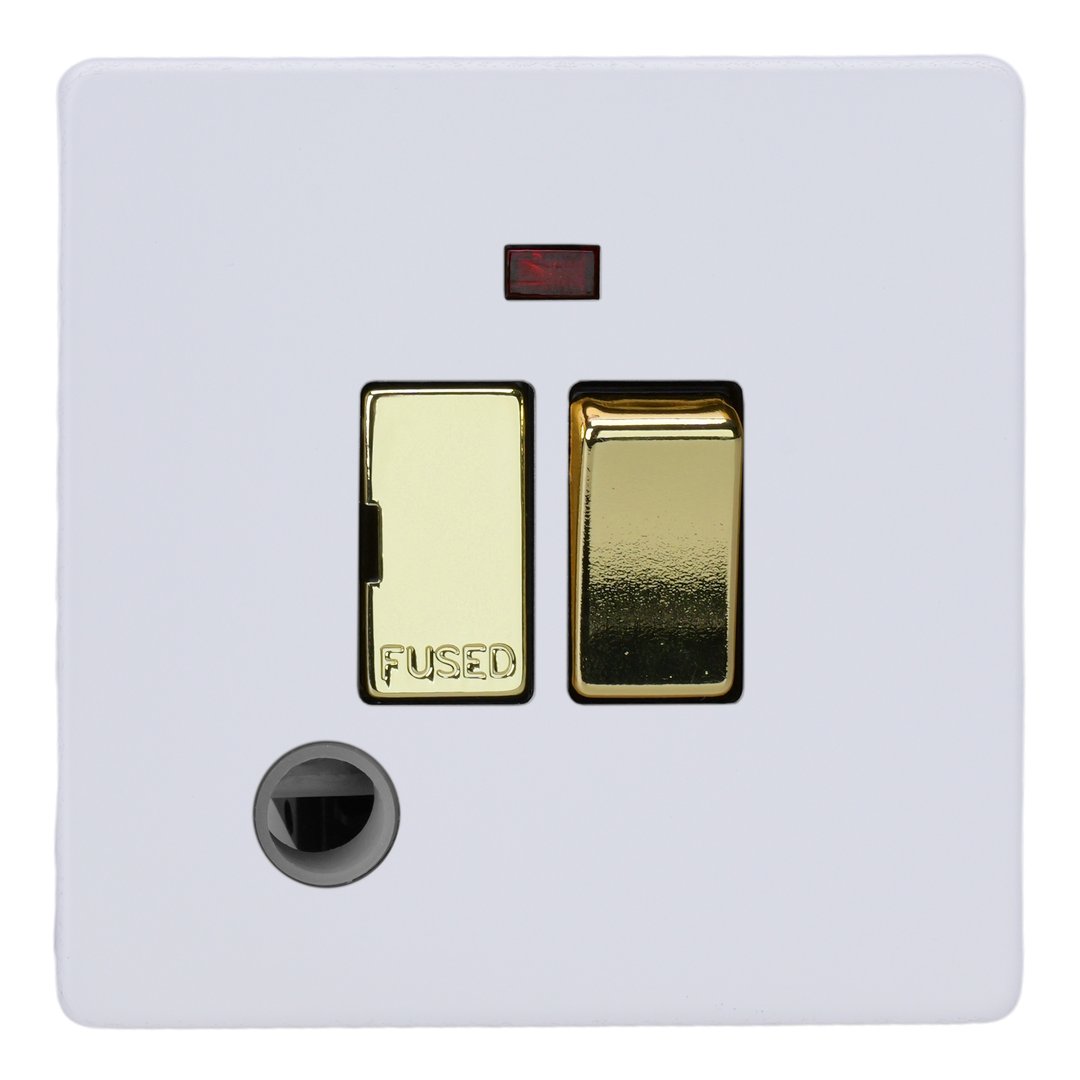

XDY6FONVDS.PD 13A Switched Fused Spur with Neon with Flex Outlet

Fused Spur with Flex Outlet & Neon Indicator

Product features

  • Double pole switching isolates live and neutral for added safety
  • Neon indicator shows at a glance when it's on
  • Cable clamp keeps the flex secure
  • Takes a standard 25.4x6.4mm fuse
  • Easily replaceable 13A fuse included
  • Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box

Product

Product code
XDY6FONVDS.PD
Category
Fused Spur Connection Units
Range
Screwless
Finish
Primed Paintable
Insert / knob colour
Brass Insert
Barcode
5021575038750

Size and fitting

Dimensions
86x86x30mm
Faceplate depth
4mm
Fixing centres
60.3mm
Depth from mounting face
22.2mm
Recommended back box depth
25mm
Net weight
176g
Gross weight
178g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
13A
Maximum current rating
13A
Terminal (Live)
4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral)
4.5mm, capacity 4 x 2.5mm²
Terminal (Earth)
3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Product Must Be Earthed.
Applicable safety standard
BS 1363-4
Commodity code
85389091

Screwless collection

Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Primed Paintable finish

Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
