Data sheet: XDY5UACIBS.PD
Data sheet

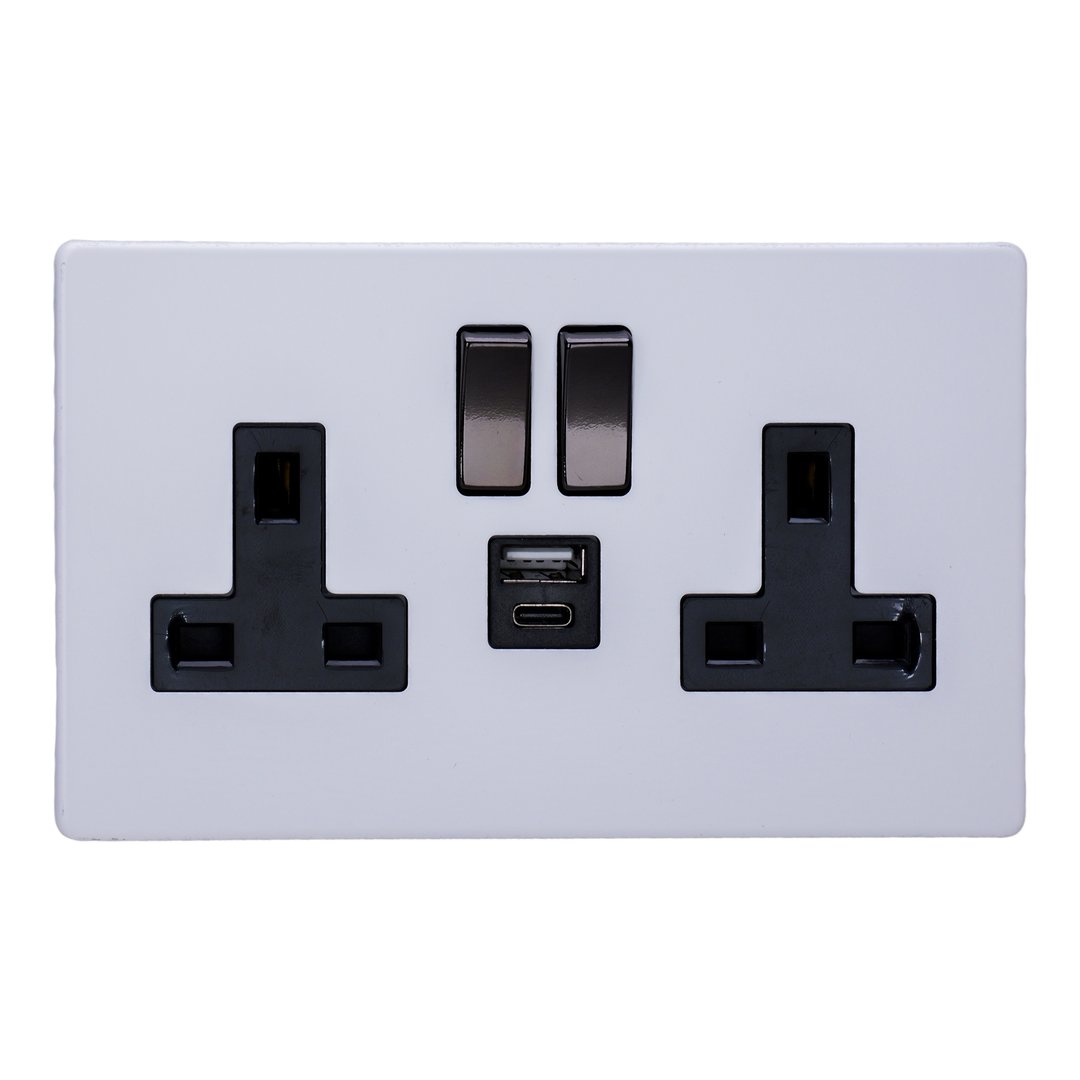

XDY5UACIBS.PD Double Socket with 20W Shared USB A & C Charging Ports
Double Switched Plug Socket With USB A+C Charging
Product features
- 20W shared between the USB-A and USB-C ports
- Power Delivery 3.0 and Qualcomm Quick Charge 3.0 fast charging
- Use any USB-A or USB-C cable
- Both sockets stay free for other appliances
- Able to switch off for added safety and power saving
- Dual earth terminals for a secure earth connection
- Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box
Product
- Product code
- XDY5UACIBS.PD
- Category
- Sockets with USB A Charging
- Range
- Screwless
- Finish
- Primed Paintable
- Insert / knob colour
- Iridium/Black Insert
- Barcode
- 5021575034585
Size and fitting
- Dimensions
- 86x147x31mm
- Faceplate depth
- 4mm
- Fixing centres
- 120.6mm
- Depth from mounting face
- 23.1mm
- Recommended back box depth
- 35mm
- Net weight
- 170g
- Gross weight
- 172g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- USB: 20W
- Maximum current rating
- 13A
- Terminal (Live)
- 4.8mm, capacity 4 x 2.5mm²
- Terminal (Neutral)
- 4.8mm, capacity 4 x 2.5mm²
- Terminal (Earth)
- 4.8mm, capacity 4 x 2.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Please note recommended back box depth relies on efficient cable routing. Product Must Be Earthed.
- Applicable safety standard
- BS 1363-2
- Commodity code
- 85366990
Screwless collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Primed Paintable finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 18th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
