Data sheet: XDY20NIDS.PD
Data sheet

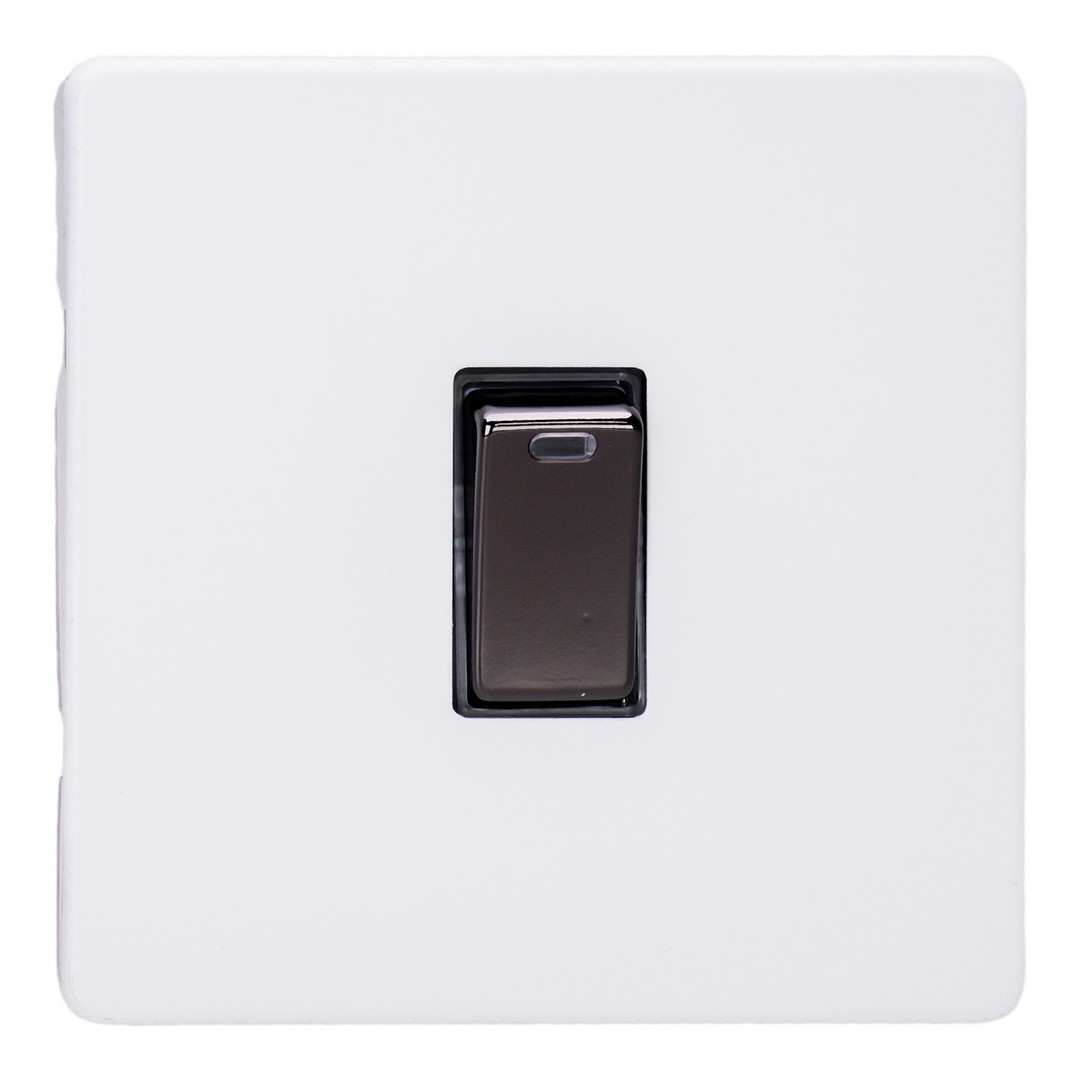

XDY20NIDS.PD 1-Gang 20A Double Pole Rocker Switch with Neon Indicator Light
Single 20A Double Pole Switch With Neon
Product features
- Double pole switching isolates live and neutral for added safety
- Neon indicator shows at a glance when it's on
- The neon can be wired as a nightlight to help you find the switch in the dark. Click here for the wiring diagram.
- 20A rated
- Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box
Product
- Product code
- XDY20NIDS.PD
- Category
- Rocker Switches
- Range
- Screwless
- Finish
- Primed Paintable
- Insert / knob colour
- Iridium Rocker
- Barcode
- 5021575034516
Size and fitting

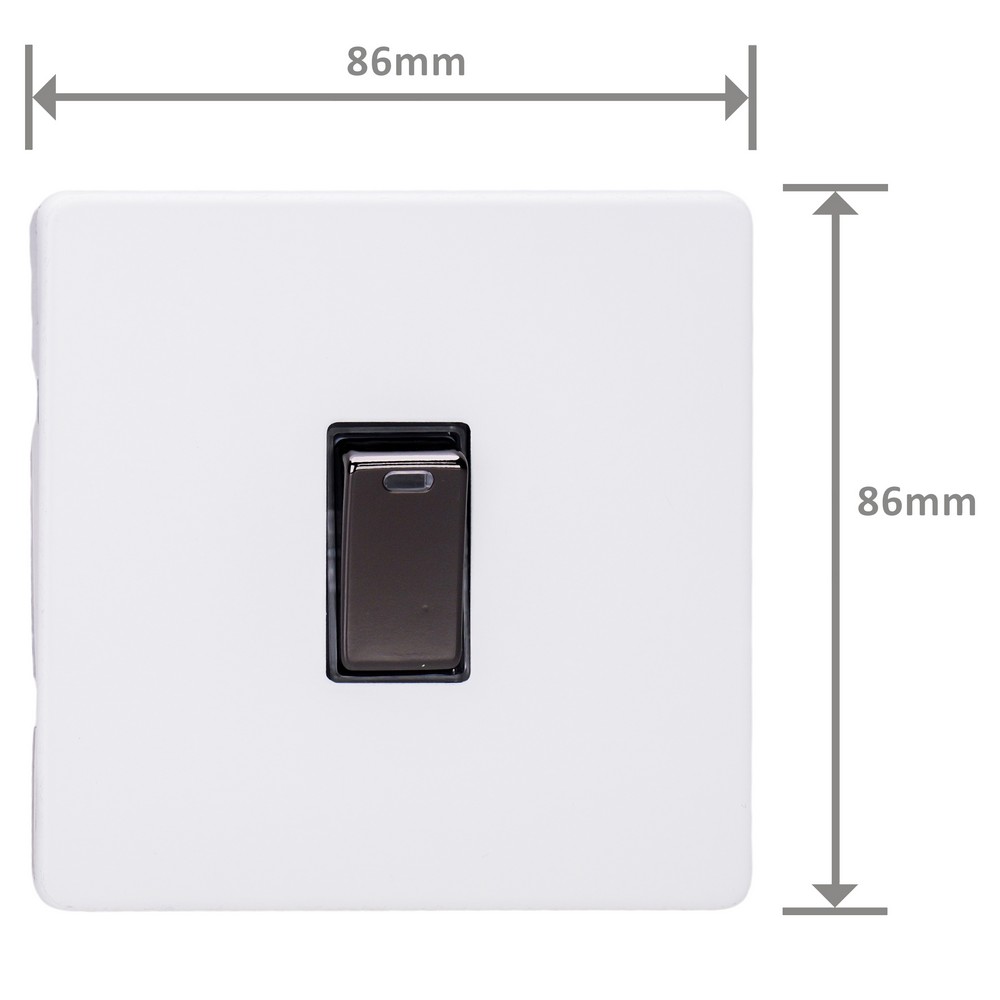

- Dimensions
- 86x86x30mm
- Faceplate depth
- 4mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 22.2mm
- Recommended back box depth
- 25mm
- Net weight
- 136g
- Gross weight
- 138g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 20A
- Terminal (Live)
- 4.5mm, capacity 4 x 2.5mm²
- Terminal (Neutral)
- 4.5mm, capacity 4 x 2.5mm²
- Terminal (Earth)
- 3.3mm, capacity 4 x 2.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-1
- Commodity code
- 85389091
Screwless collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Primed Paintable finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 18th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
