Data Sheet
Product Code: XDS20DS

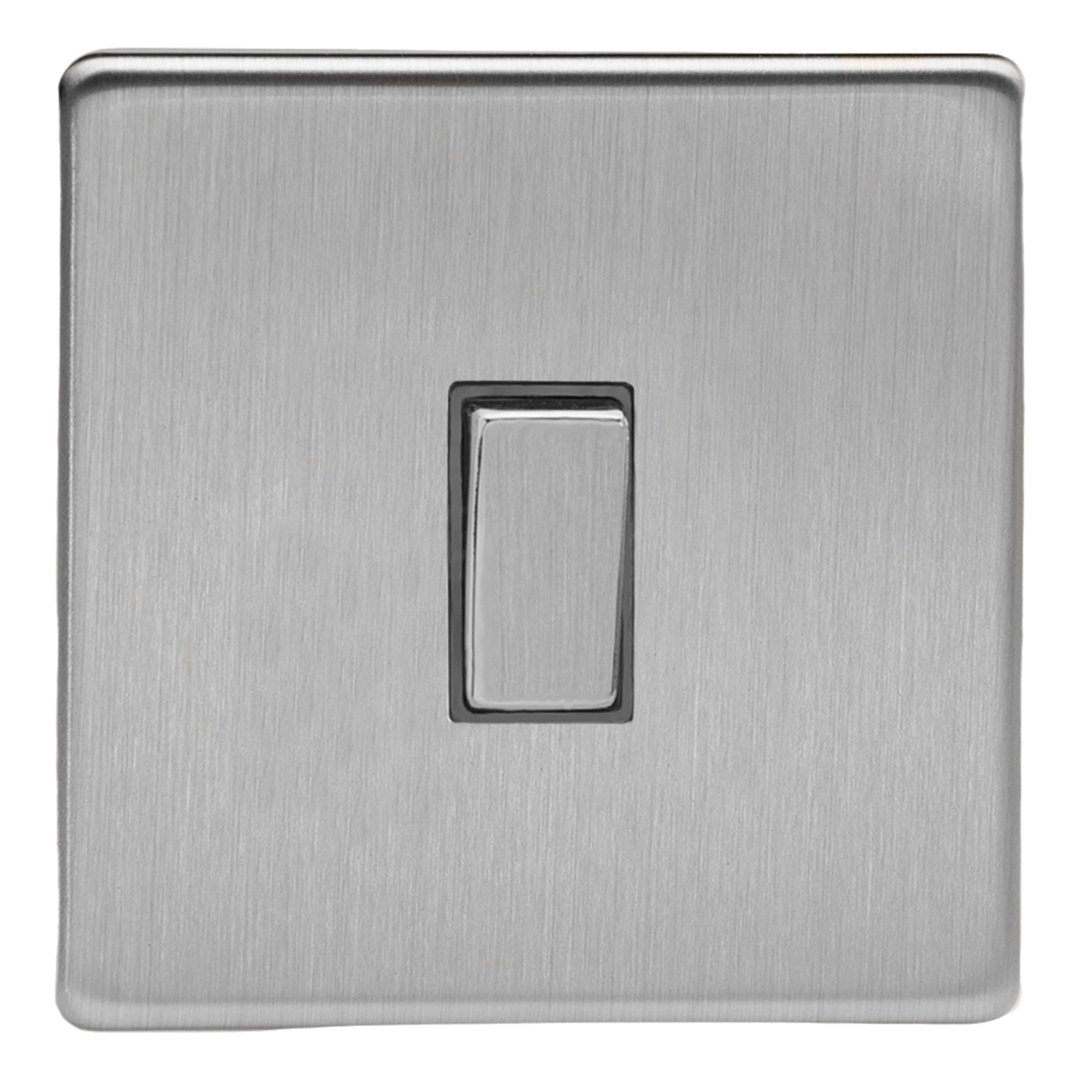

Product Description: 1-Gang 20A Double Pole Rocker Switch
Range: Screwless
Finish: Brushed Steel
Product Category: Rocker Switches
Insert/Knob Colour: Steel Rocker
Barcode: 5021575481884

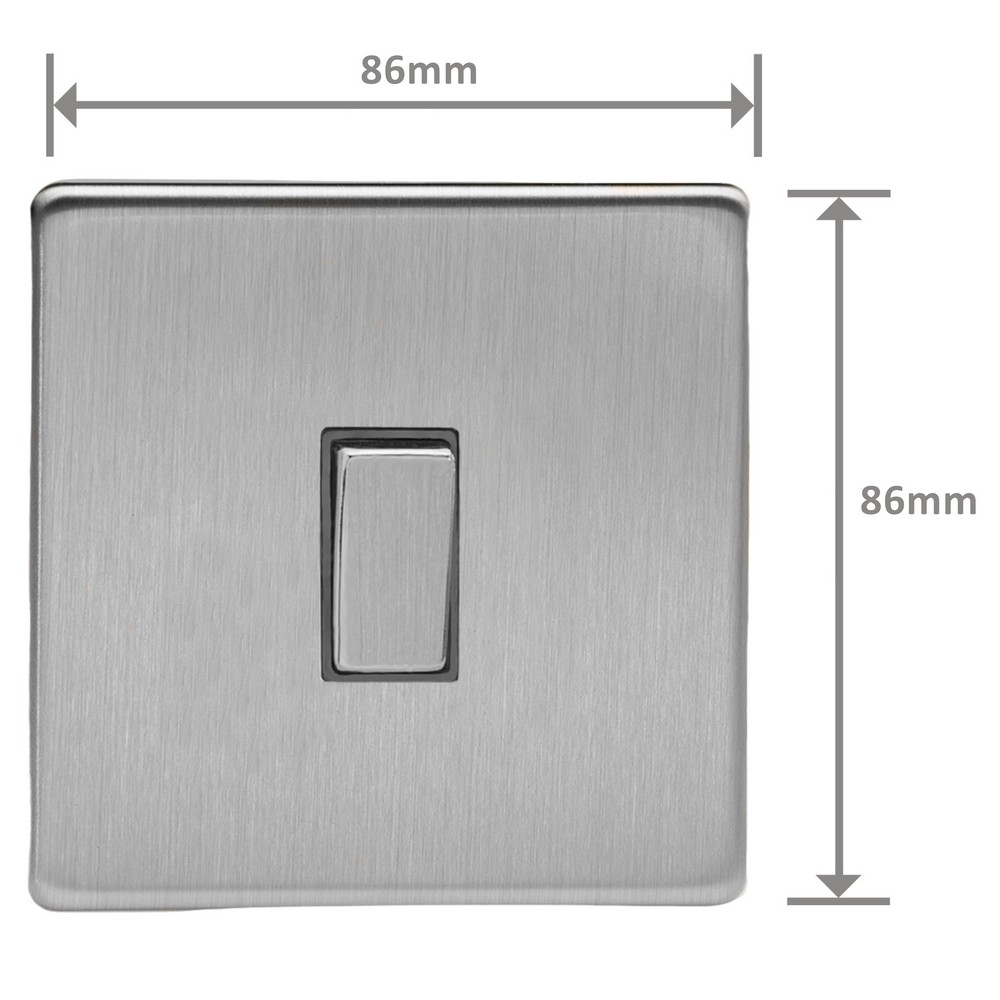

Dimensions: 86x86x30mm
Faceplate Depth: 4mm
Net Weight: 136g
Gross Weight: 138g
Fixing Centres: 60.3mm
Depth from Mounting Face: 22.2mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 20A
Maximum Current Rating: 20A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 4 x 2.5mm²
Product Features
Double pole switching
Sleek, low-profile screwless faceplate

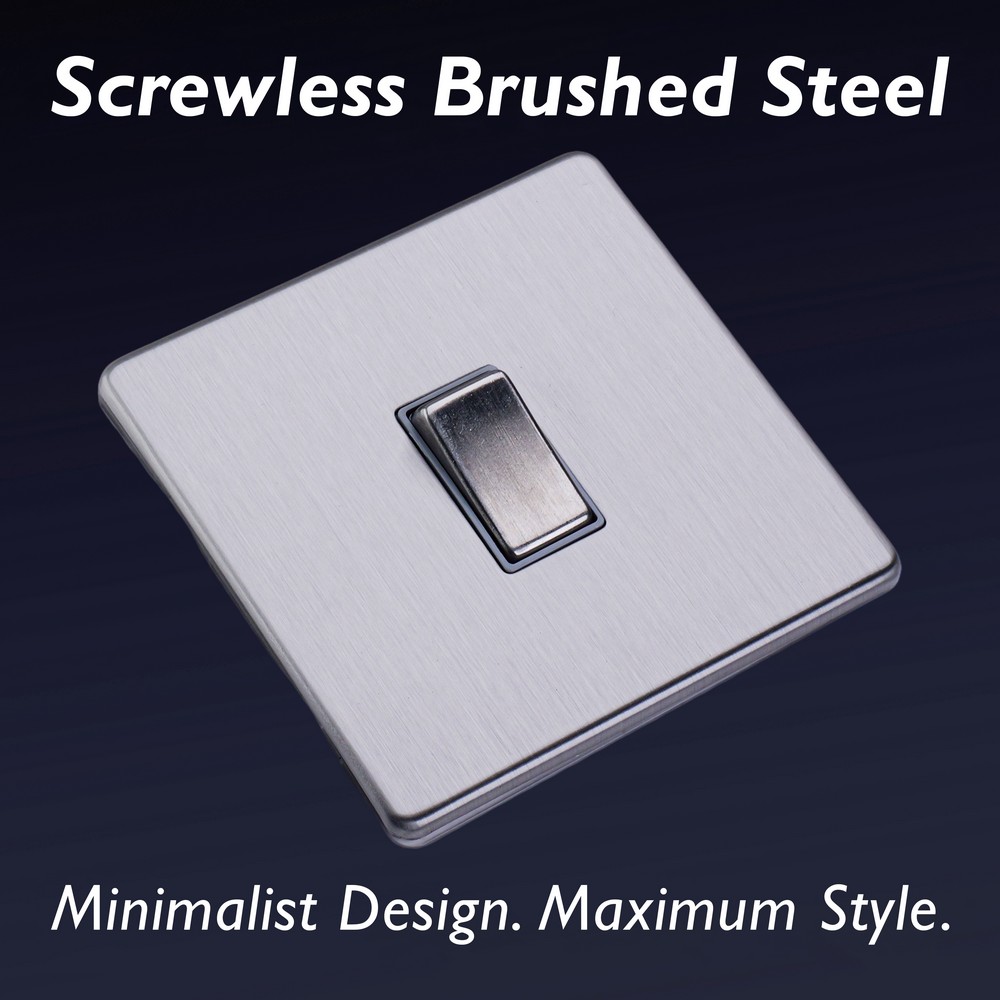

Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 10th December 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
