Data Sheet

Product Code: XDQ5U2WS

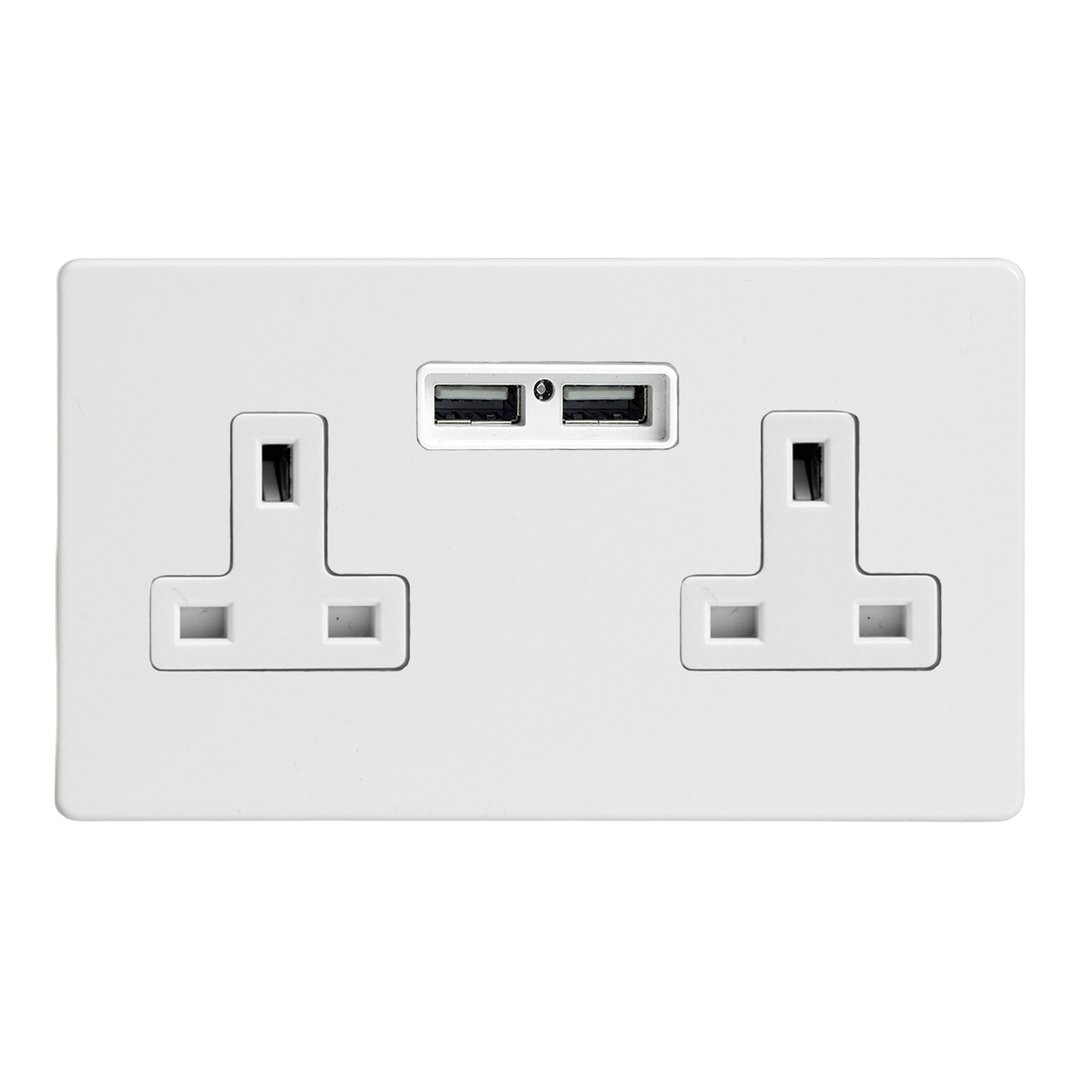

Product Description: 2-Gang 13A Unswitched Socket with 2 x 12W Shared USB A Charging Ports

Range: Screwless

Finish: Premium White

Product Category: Sockets with USB A Charging

Insert/Knob Colour: White Insert

Barcode: 5021575142426

Dimensions: 86x147x28mm

Faceplate Depth: 4mm

Net Weight: 190g

Gross Weight: 192g

Fixing Centres: 120.6mm

Depth from Mounting Face: 24mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  2 x 12W shared USB-A charging ports

  Charges phones, tablets, cameras and more, no plug adaptor needed

  Both sockets stay free for other appliances

  Unswitched, for appliances that should never be switched off by mistake

  Dual earth terminals for a secure earth connection

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Premium White Finish
The Premium White finish is created using a high gloss polycarbonate and is beautifully presented on a low profile screwless faceplate, paired with chrome rockers and featuring hidden fixings, contributing to its understated appeal.
