Data Sheet

Product Code: XDEBR1W.BB

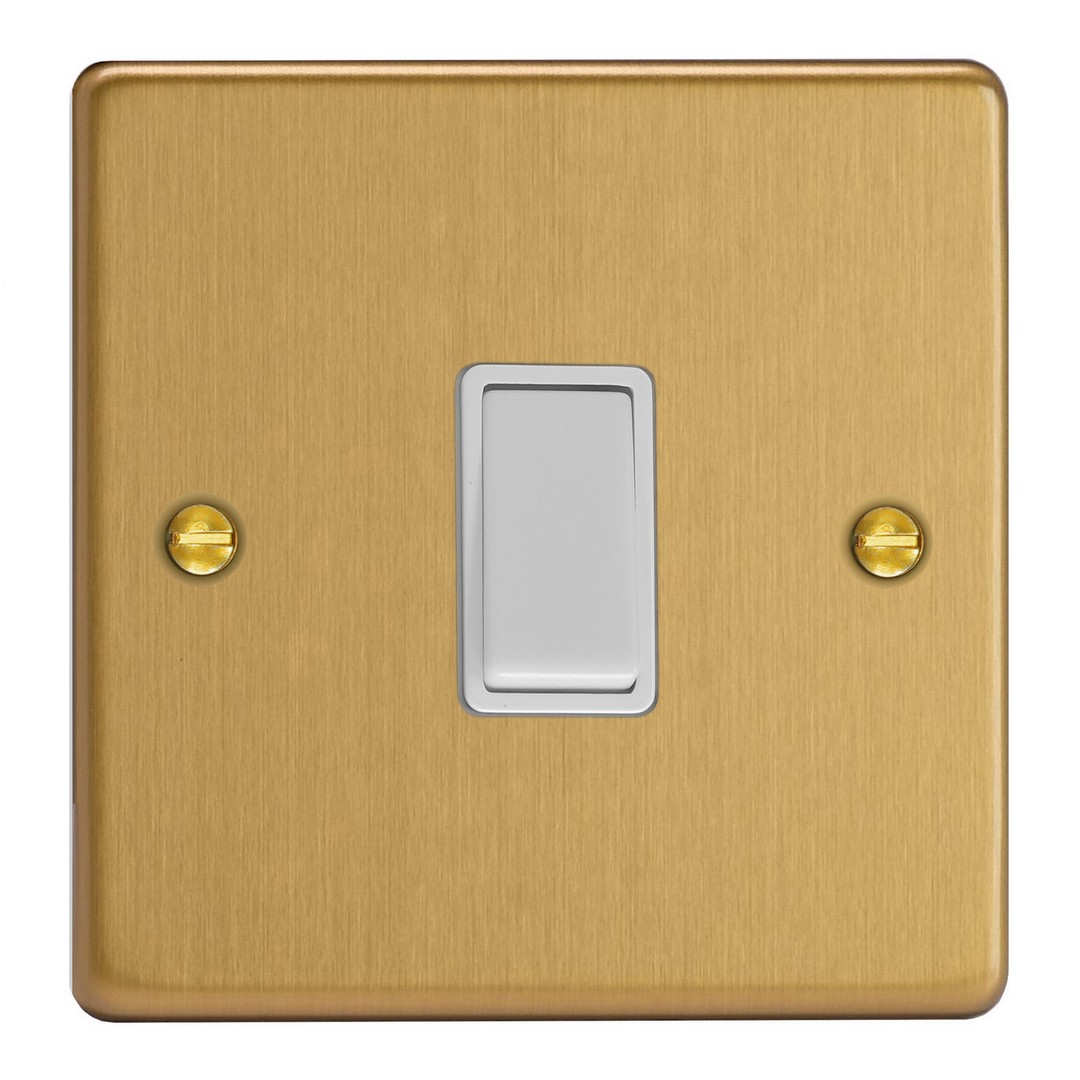

Product Description: 1-Gang 10A Retractive Switch

Range: Essential

Finish: Brushed Brass

Product Category: Rocker Switches

Insert/Knob Colour: White Rocker

Barcode: 5021575009507

Dimensions: 86x86x23mm

Faceplate Depth: 4mm

Net Weight: 116g

Gross Weight: 118g

Fixing Centres: 60.3mm

Depth from Mounting Face: 18.4mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  Retractive push to make switch that springs back when released

  For blinds, doorbells and anything that needs a momentary signal rather than a permanent on

  Install a V-Pro Micro Push Control In-Line Dimmer Pack behind the switch for intelligent LED dimming with nothing on the wall but the switch itself.

  10A rated

  Low-profile faceplate, just 4mm deep with brass screws, fits a 25mm back box

Essential Collection
The Essential Collection is the go-to range for unbeatable value. Its sleek, low-profile faceplate features clean lines that add a modern, refined touch to any space, while the visible fixing screws create a simple yet practical aesthetic. The Essential Collection delivers on both affordability and quality, making it the perfect solution for any interior.

Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. It is offered with either black or white inserts and features matching brass fixing screws.
