Data Sheet

Product Code: XDE6NB.BS

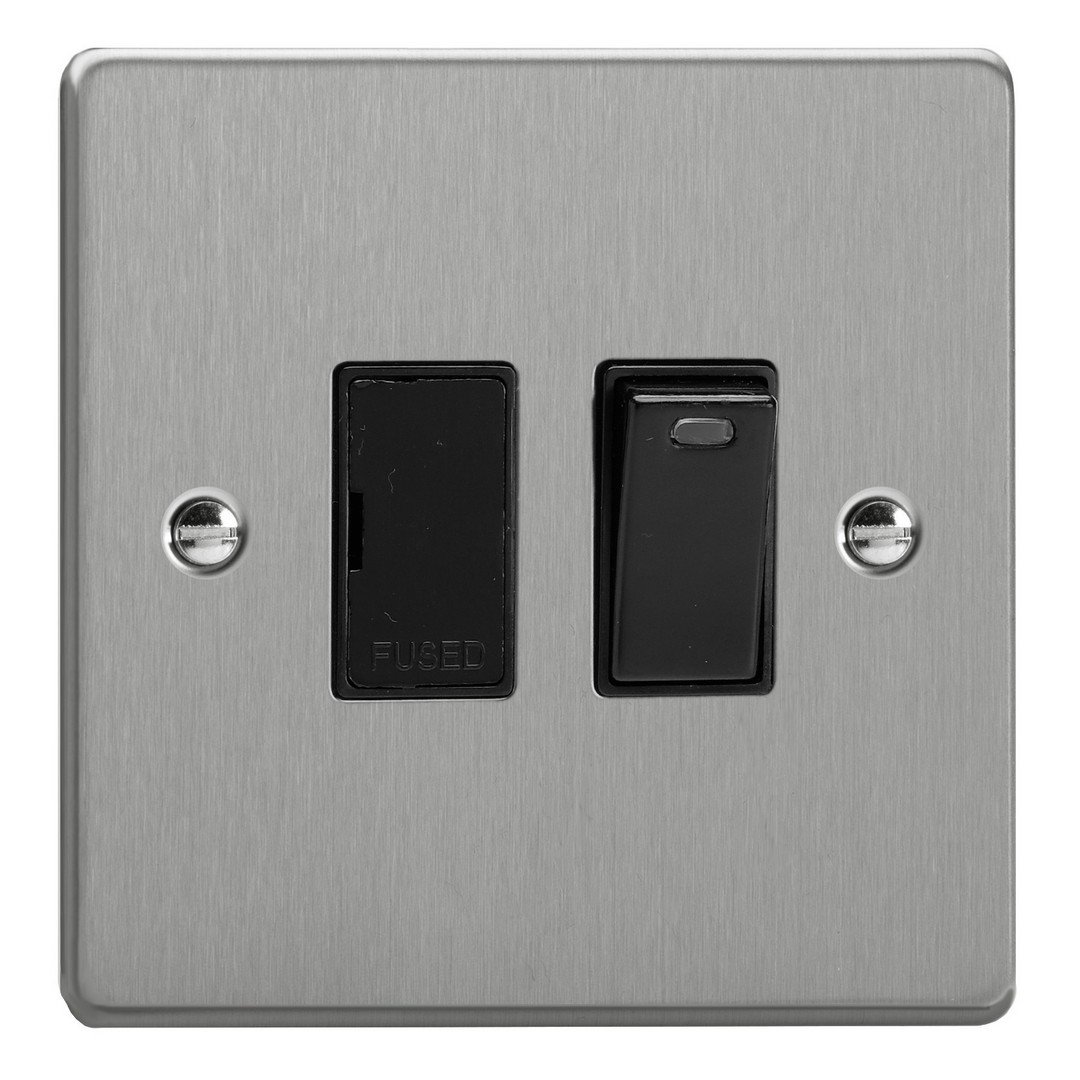

Product Description: 13A Switched Fused Spur with Neon

Range: Essential

Finish: Brushed Steel

Product Category: Fused Spur Connection Units

Insert/Knob Colour: Black Insert

Barcode: 5021575026153

Dimensions: 86x86x30mm

Faceplate Depth: 4mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 22.2mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Refer to Fuse Value

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-4

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Double pole switching

  Neon indicator light

  Holds standard 25.4x6.4mm fuse

  Replaceable 13A fuse included

  Sleek, low-profile faceplate

Essential Collection
The Essential Collection is the go-to range for unbeatable value. Its sleek, low-profile faceplate features clean lines that add a modern, refined touch to any space, while the visible fixing screws create a simple yet practical aesthetic. The Essential Collection delivers on both affordability and quality, making it the perfect solution for any interior.

Brushed Steel Finish
The stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. It is offered with Black or White inserts and matching steel fixing screws. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
