Data sheet: XDC5BS

Data sheet

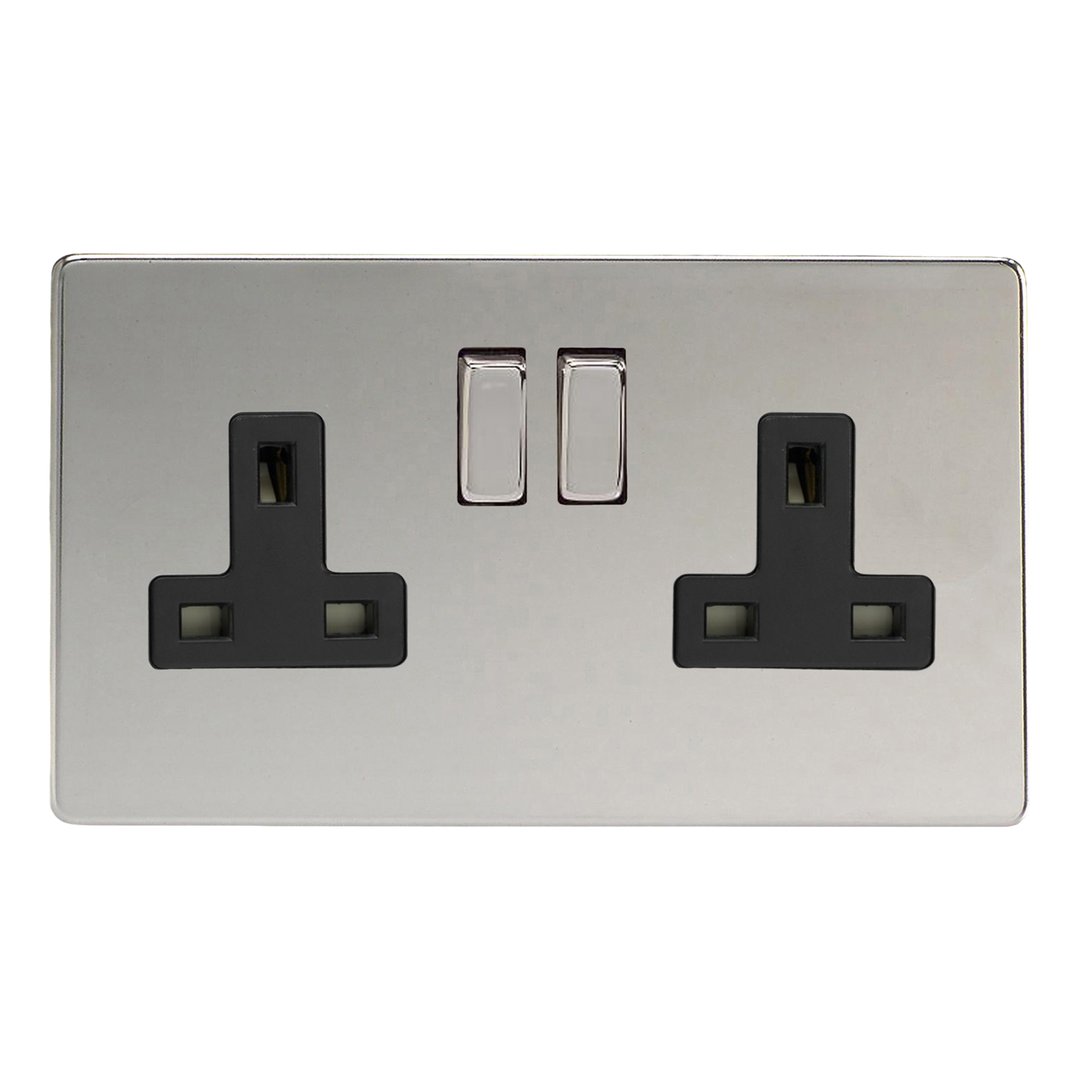

XDC5BS 2-Gang 13A Double Pole Switched Socket

Double Switched Plug Socket

Product features

  • Double pole switching isolates live and neutral for added safety
  • Dual earth terminals for a secure earth connection
  • Large termination points for easy wiring
  • Tight tolerances for a secure plug fit
  • Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box

Product

Product code
XDC5BS
Category
Sockets
Range
Screwless
Finish
Polished Chrome
Insert / knob colour
Chrome/Black Insert
Barcode
5021575430455

Size and fitting

Dimensions
86x147x32mm
Faceplate depth
4mm
Fixing centres
120.6mm
Depth from mounting face
22.4mm
Recommended back box depth
35mm
Net weight
230g
Gross weight
232g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
13A
Maximum current rating
13A
Terminal (Live)
4.8mm, capacity 4 x 2.5mm²
Terminal (Neutral)
4.8mm, capacity 4 x 2.5mm²
Terminal (Earth)
4.8mm, capacity 4 x 2.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Product Must Be Earthed.
Applicable safety standard
BS 1363-2
Commodity code
85366990

Screwless collection

Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Polished Chrome finish

Polished Chrome brings a bright, clean finish to any room. Choose from black or white inserts, supplied with matching polished chrome rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 22nd November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
