Data Sheet
Product Code: XB88
Product Description: 2-Gang TV Socket/ Co-Axial
Range: Classic
Finish: Brushed Brass
Product Category: TV and Telephone Sockets
Insert/Knob Colour: Plain Insert
Barcode: 5021575012101

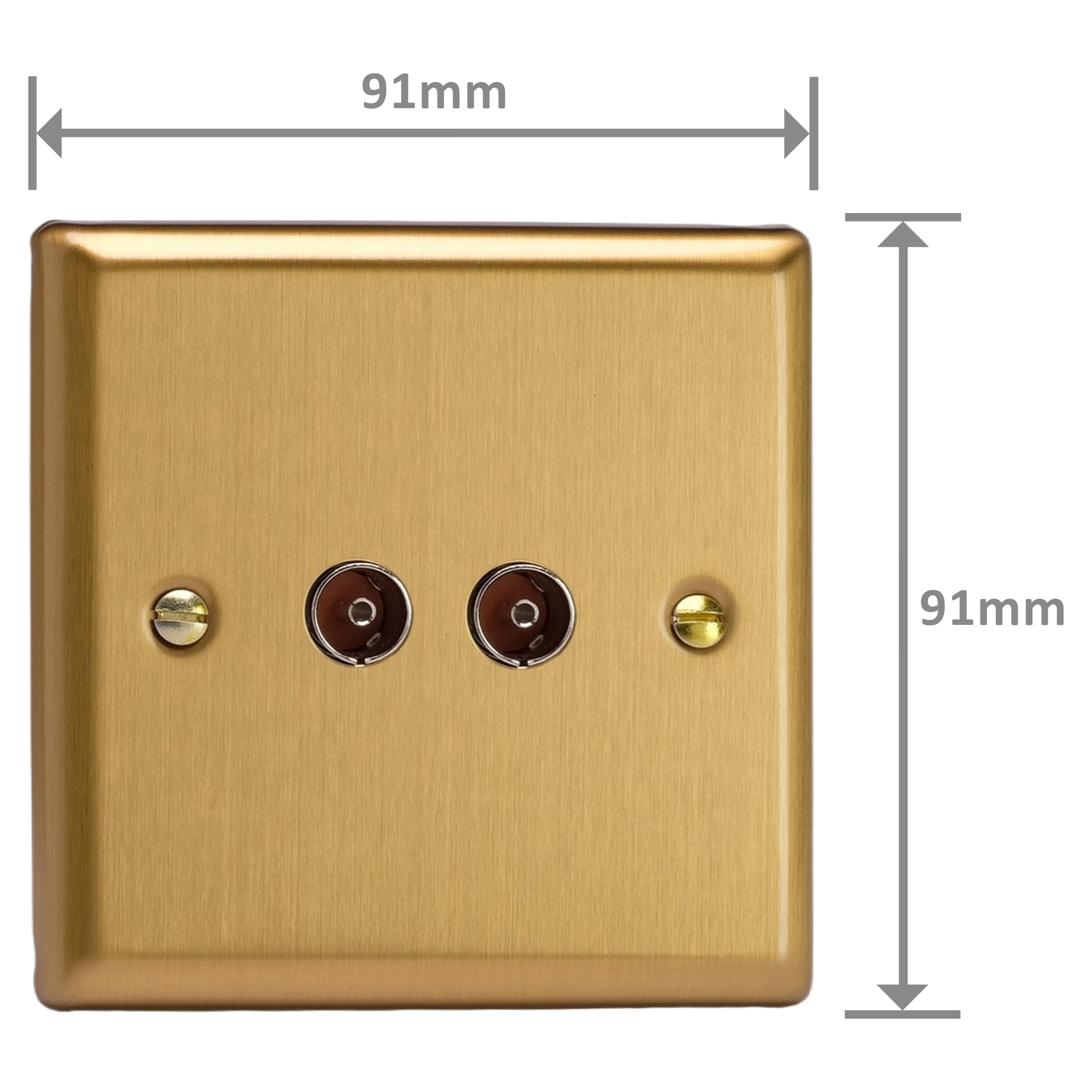

Dimensions: 91x91x22mm
Faceplate Depth: 8mm
Net Weight: 136g
Gross Weight: 138g
Fixing Centres: 60.3mm
Depth from Mounting Face: 10.9mm
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS 5733
Commodity Code: 85366910
Product Features
Twin TV sockets for male coaxial plugs
Finished to match the rest of the range
Pairs with matching telephone and data sockets
A tidy connection for TV and hi-fi
Bevel-edge faceplate, 8mm deep with brass screws, fits a 16mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
