Data sheet: XB5DB

Data sheet

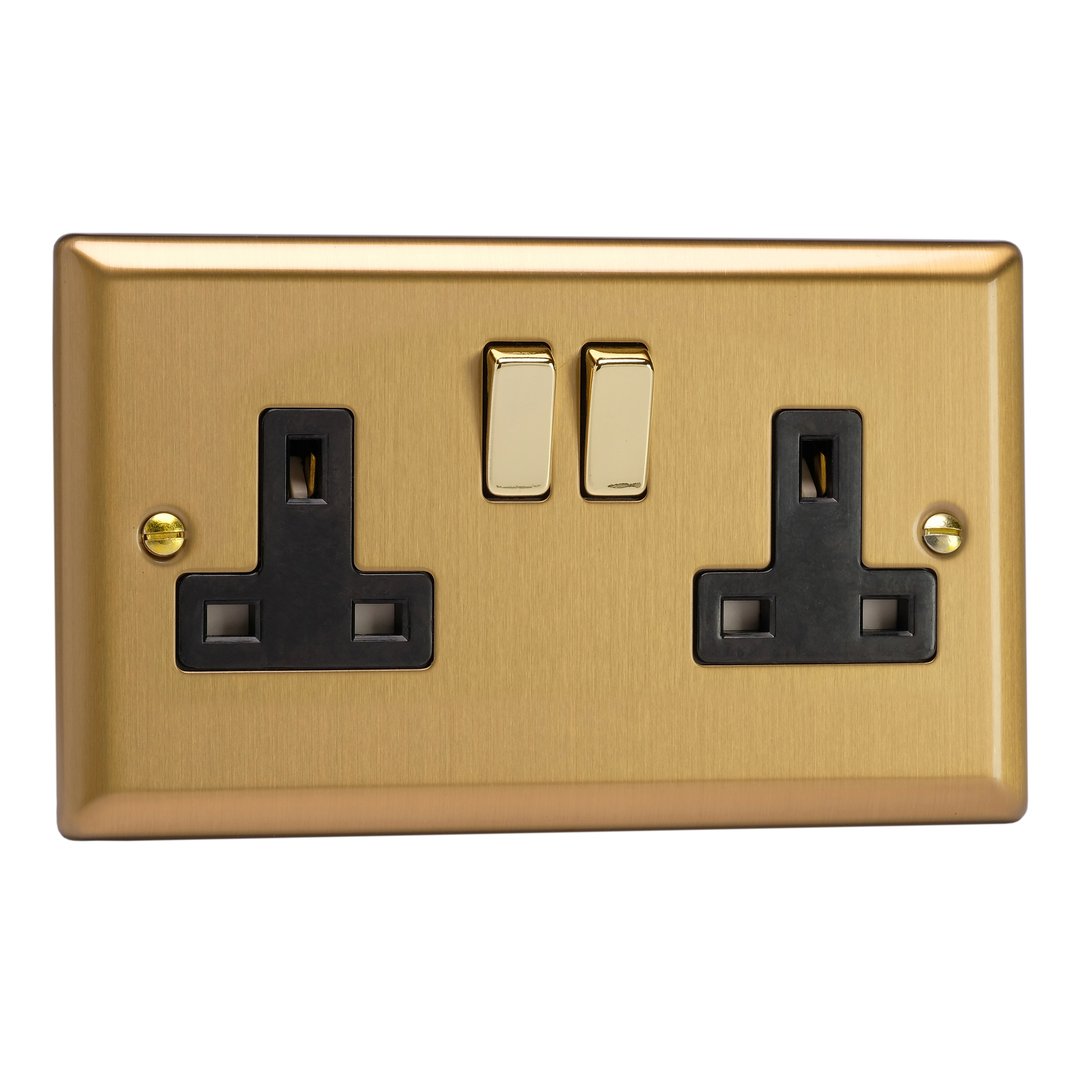

XB5DB 2-Gang 13A Double Pole Switched Socket

Double Switched Plug Socket

Product features

  • Double pole switching isolates live and neutral for added safety
  • Dual earth terminals for a secure earth connection
  • Large termination points for easy wiring
  • Tight tolerances for a secure plug fit
  • Bevel-edge faceplate, 8mm deep with brass screws, fits a 25mm back box

Product

Product code
XB5DB
Category
Sockets
Range
Classic
Finish
Brushed Brass
Insert / knob colour
Brass/Black Insert
Barcode
5021575011753

Size and fitting

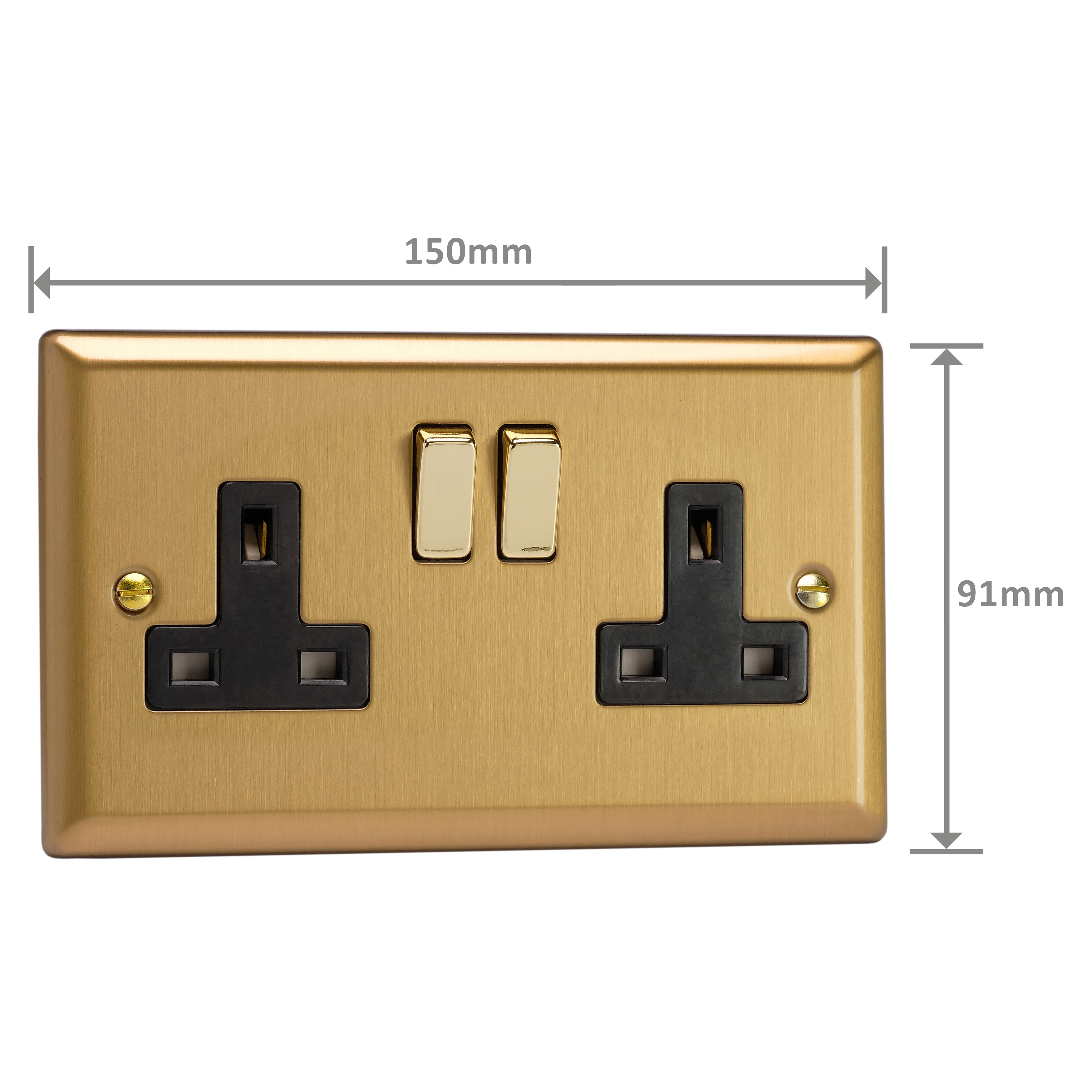

Dimensions
91x150x31mm
Faceplate depth
8mm
Fixing centres
120.6mm
Depth from mounting face
16.9mm
Recommended back box depth
25mm
Net weight
220g
Gross weight
222g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
13A
Maximum current rating
13A
Terminal (Live)
4.8mm, capacity 4 x 2.5mm²
Terminal (Neutral)
4.8mm, capacity 4 x 2.5mm²
Terminal (Earth)
4.8mm, capacity 4 x 2.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Product Must Be Earthed.
Applicable safety standard
BS 1363-2
Commodity code
85366990

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Brass finish

The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 22nd November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
