Data Sheet
Product Code: WGD3

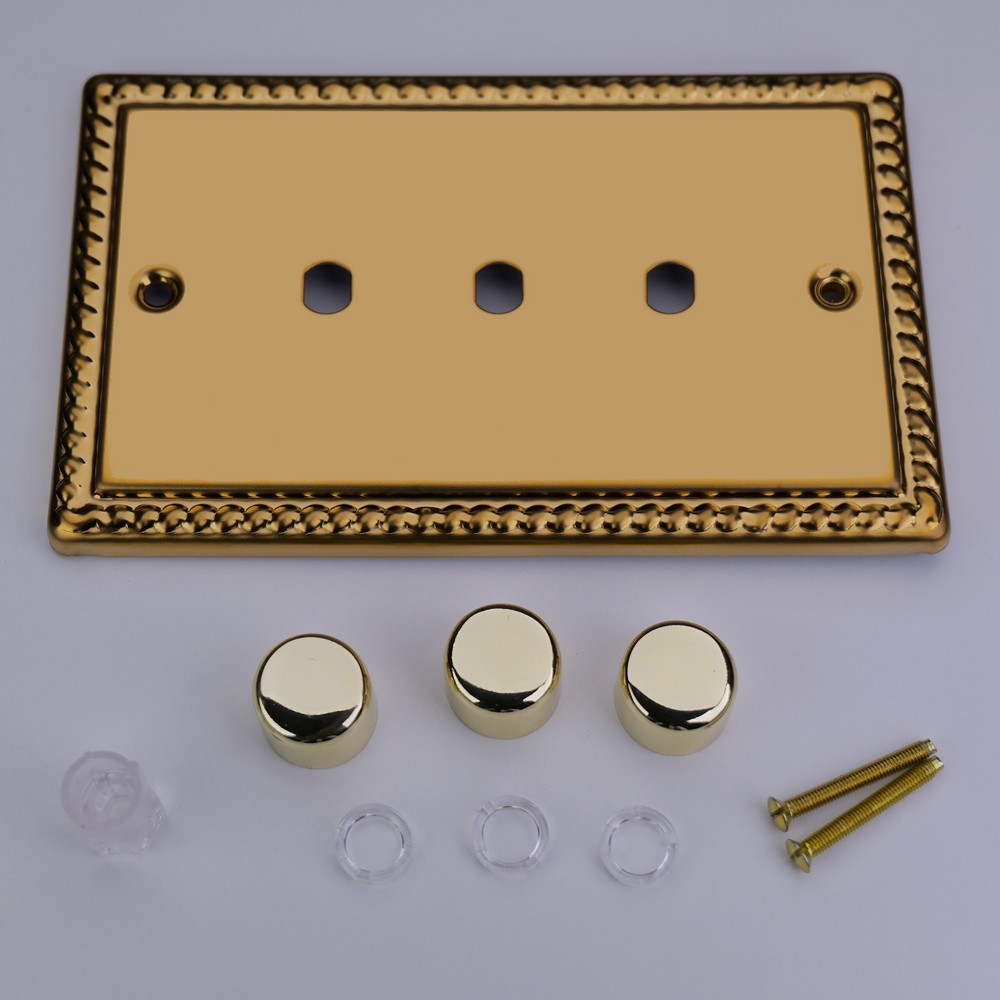

Product Description: 3-Gang Matrix Kit For Rotary Dimmers (Twin Plate)
Range: Classic
Finish: Georgian Brass
Product Category: Dimmer Faceplate Kits
Insert/Knob Colour: Polished Brass Knob
Barcode: 5021575008128

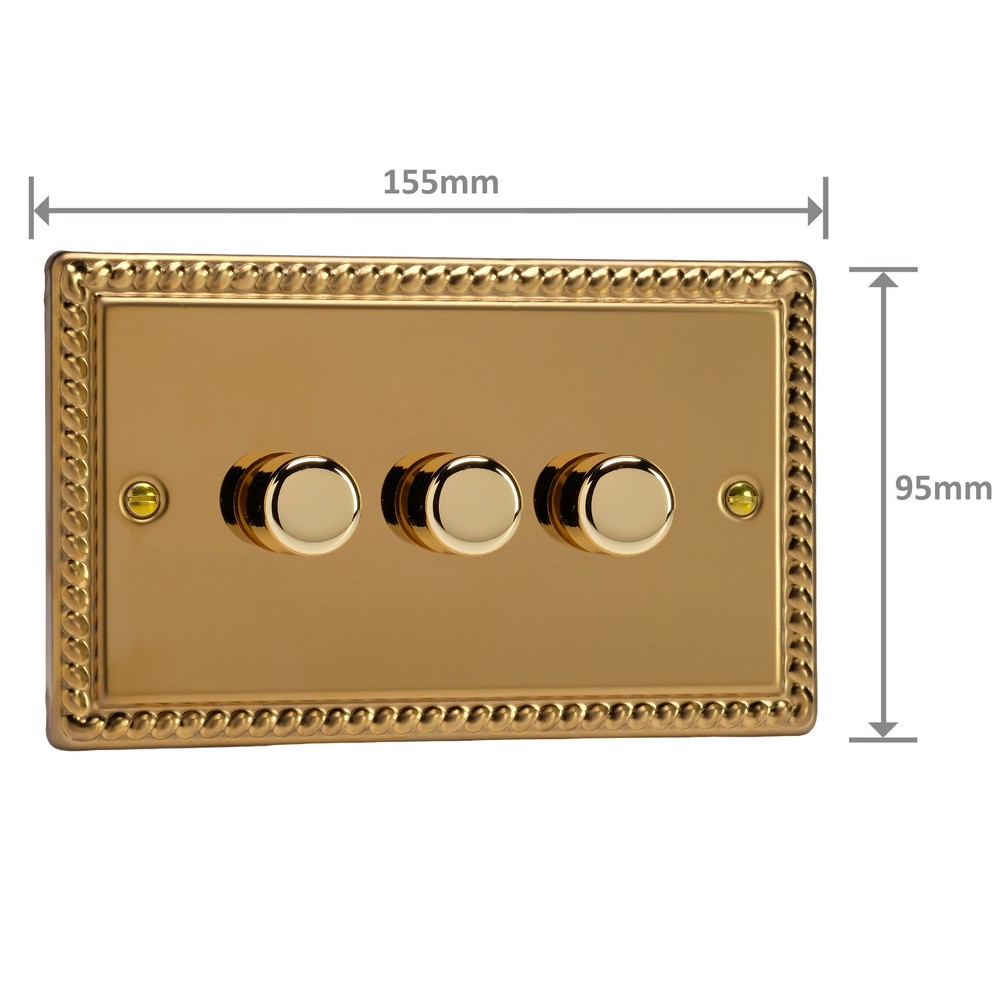

Dimensions: 95x155x*mm
Faceplate Depth: 7mm
Net Weight: 229g
Gross Weight: 232g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: N/A
Maximum Current Rating: -
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Varilight Matrix system allows total dimming flexibility
Create any combination of dimmers imaginable
Classic rope edge faceplate
Dimmer modules purchased separately
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 10th December 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
