Data Sheet

Product Code: WBD4

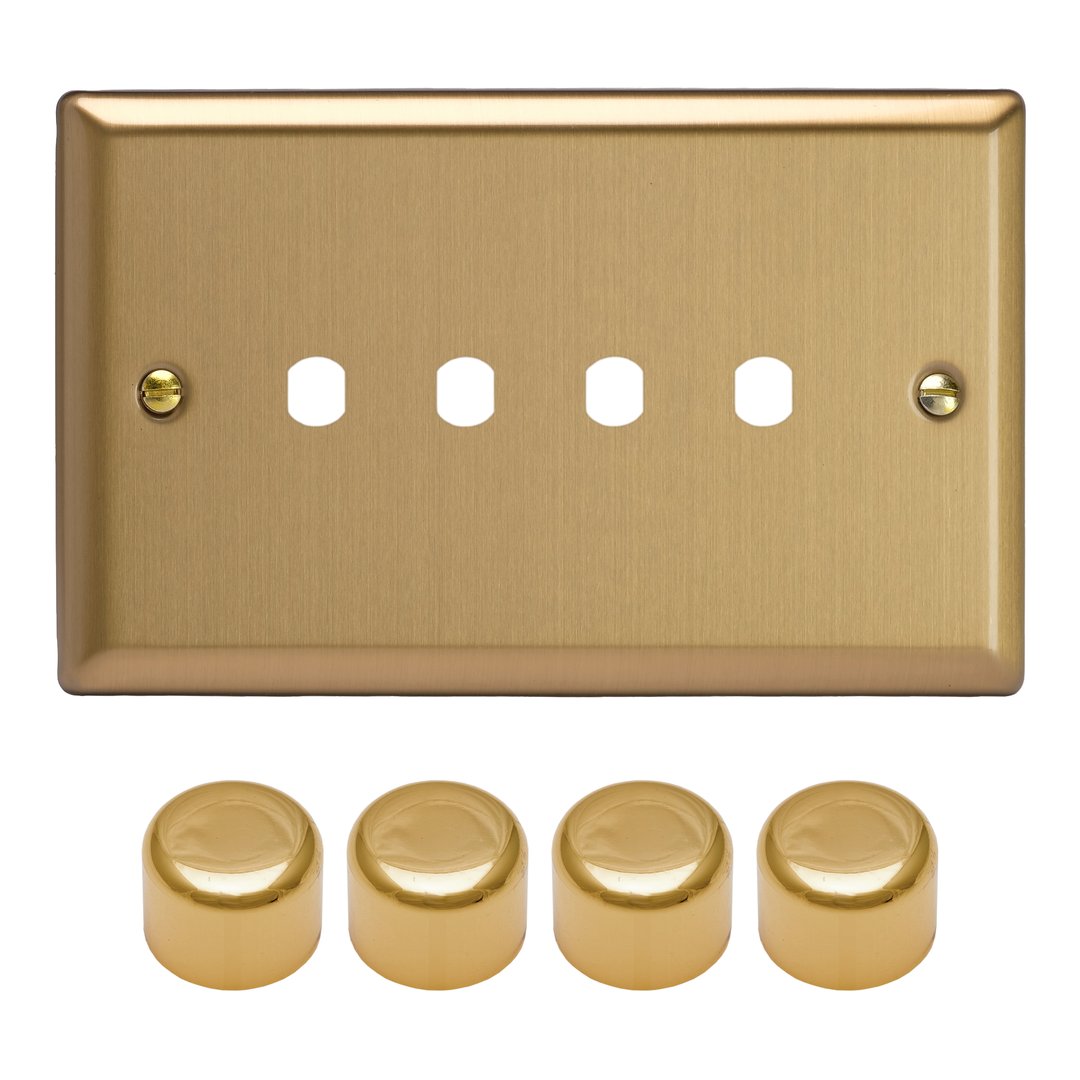

Product Description: 4-Gang Matrix Kit For Rotary Dimmers (Twin Plate)

Range: Classic

Finish: Brushed Brass

Product Category: Dimmer Faceplate Kits

Insert/Knob Colour: Brass Knob

Barcode: 5021575011487

Dimensions: 91x150x*mm

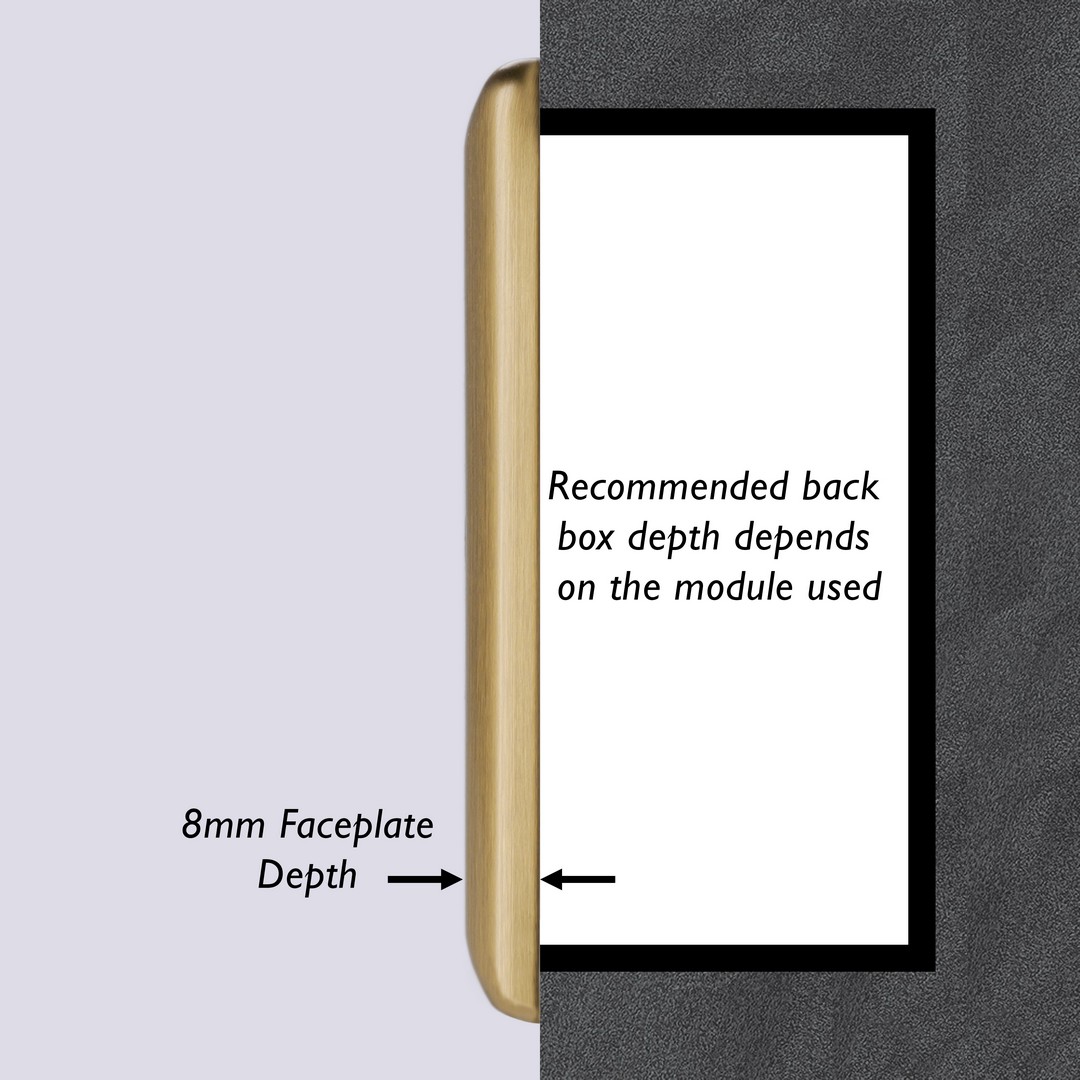

Faceplate Depth: 8mm

Net Weight: 240g

Gross Weight: 242g

Fixing Centres: 120.6mm

Depth from Mounting Face: Module Dependent

Recommended Back Box Depth: N/A

Operating Voltage: 230v 50Hz

Maximum Load Rating: N/A

Maximum Current Rating: -

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669

Commodity Code: 85389091

Declaration of Conformity

Product Features

  The Matrix system gives you complete dimming flexibility

  Any combination of dimmers you can imagine, on one plate

  Kit includes the faceplate, knobs, nuts and a nut spinner, everything except the dimmer modules

  Dimmer modules purchased separately, so you only pay for what you use

  Takes size S modules plus the Wi-Fi module, up to 600W of LED across the plate

  The same modules replace the dimmer modules in existing VARILIGHT plates

  Bevel-edge faceplate, 8mm deep with brass screws

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.
