Data Sheet

Product Code: JSE104

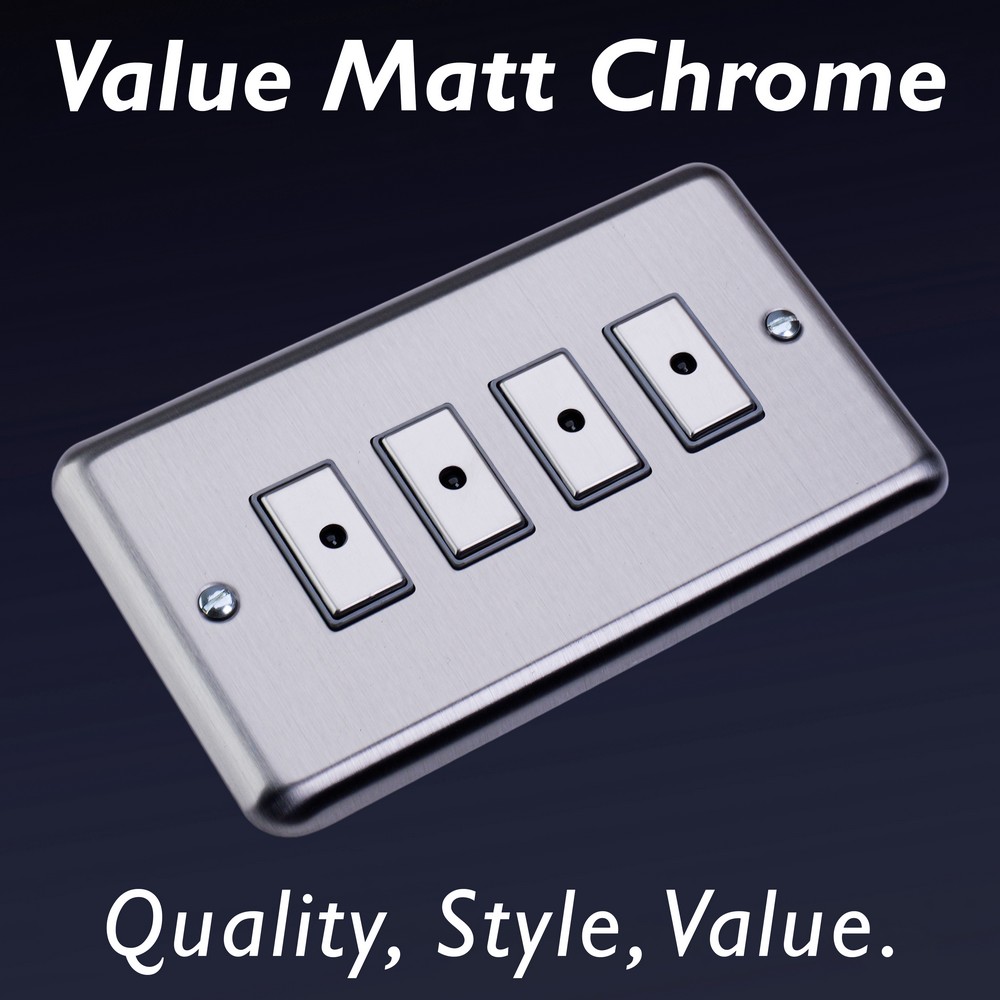

Product Description: 4-Gang 1-Way V-Pro Multi-Point Remote/Tactile Touch Control Master LED Dimmer 4 x 0-100W (Twin Plate)

Range: Value

Finish: Matt Chrome

Product Category: LED Dimmers

Insert/Knob Colour: Brushed Steel Buttons

Barcode: 5021575592184

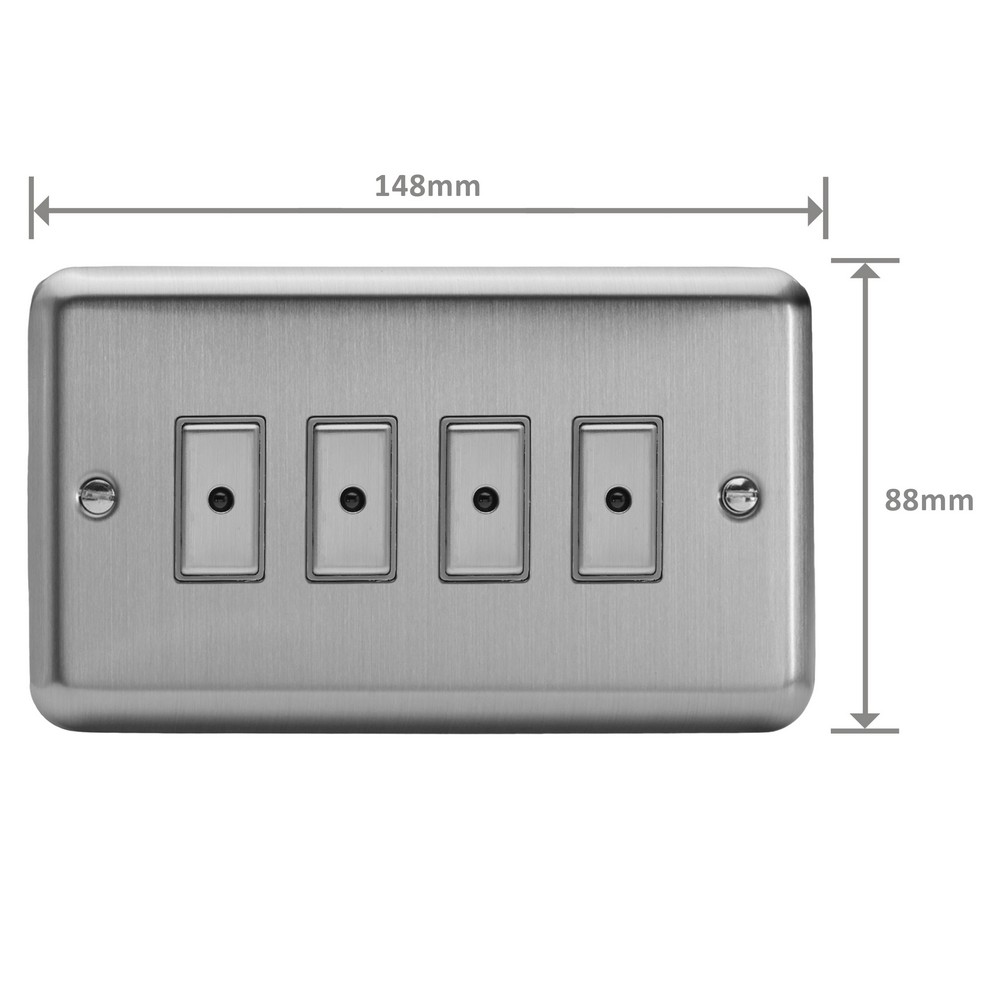

Dimensions: 88x148x27mm

Faceplate Depth: 7mm

Net Weight: 230g

Gross Weight: 232g

Fixing Centres: 120.6mm

Depth from Mounting Face: 15.7mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED: 100W

Maximum Current Rating: 0.7A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P). Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365005

Declaration of Conformity

Product Features

  V-Pro intelligent dimming technology

  Tactile touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote)

  Soft start feature and intelligent overload protection

  1-Way or multi-Way when used with Multi-Point dimming Companion Controller unit(s)

  Curved edge faceplate

Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
