Data Sheet

Product Code: JK1BE

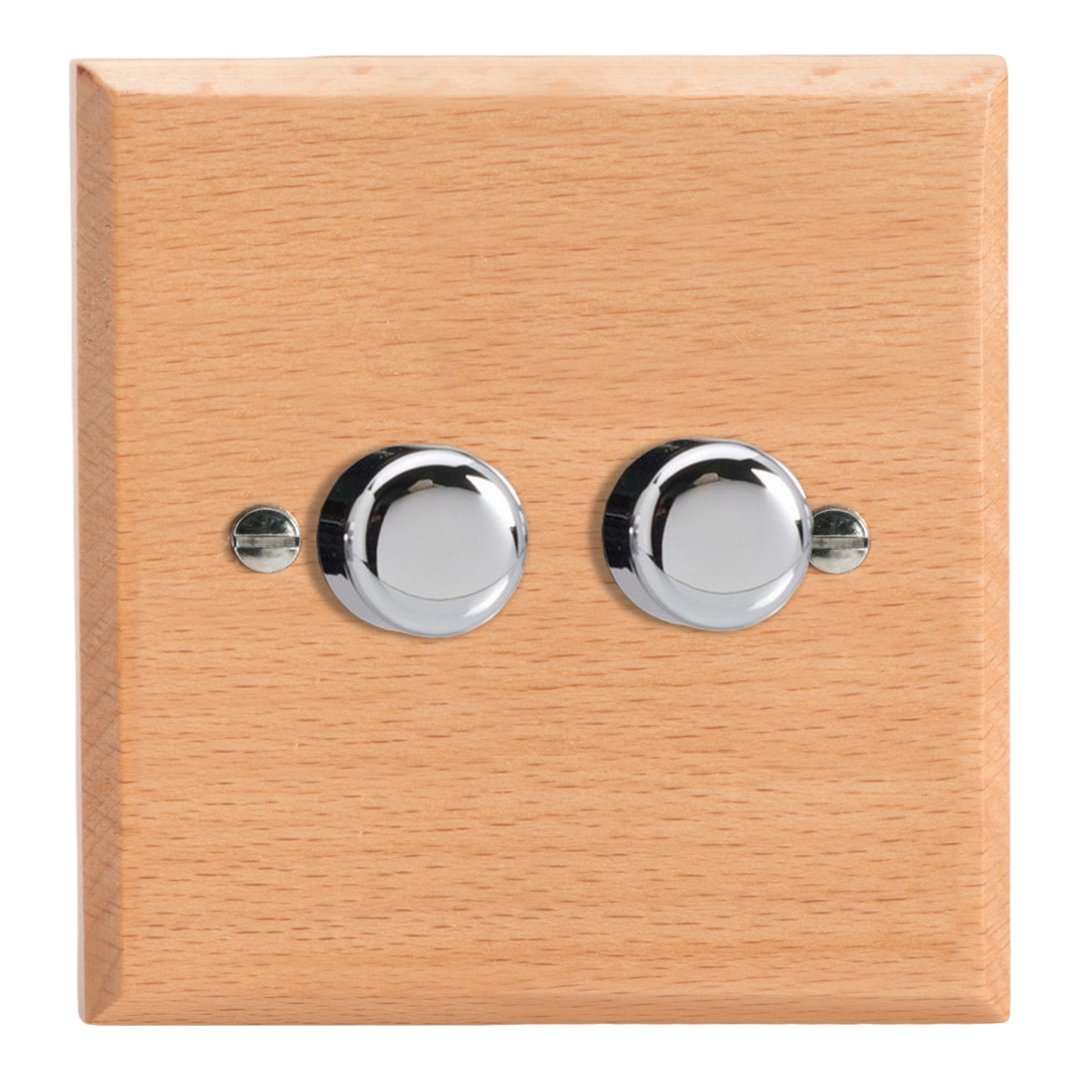

Product Description: 1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W

Range: Kilnwood

Finish: Scandic Beech

Product Category: V-Pro Dimmer

Insert/Knob Colour: Chrome Knob

Barcode: 5021575966688

Dimensions: 96x96x53mm

Faceplate Depth: 15mm

Net Weight: 126g

Gross Weight: 128g

Fixing Centres: 60.3mm

Depth from Mounting Face:

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED: 120W

Maximum Current Rating: 1.3A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365005

Declaration of Conformity

Product Features

  V-Pro intelligent dimming technology

  Soft start feature and intelligent overload protection

  Adjustable minimum brightness setting and choice of driving modes

  High grade sustainable timber

Kilnwood Collection
The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability

Scandic Beech Finish
With its subtle, yet natural grain, the Beech finish provides a uniformed look. Its warm, natural tones and soft character enhance the ambiance of any space
