Data sheet: JBES002

V-Pro Multi-Point

Data sheet

JBES002 2-Gang Tactile Touch Control Dimming Companion Controller for use with Multi-Point Master on 2-Way Circuits

Double V-Pro Multi-Point Companion Controller

Product features

  • V-Pro Multi-Point intelligent dimming: control the lights from every location on the circuit
  • Touch to dim from the tactile touch pad: press anywhere for on/off, hold the top to brighten and the bottom to dim
  • One master with any number of supplementary controllers on the circuit
  • Retrofits with standard 3 core and earth wiring
  • Programmable driving modes and adjustable minimum brightness for wider LED compatibility
  • Bevel-edge faceplate, 8mm deep with brass screws, fits a 25mm back box

Product

Product code
JBES002
Category
LED Dimmers
Range
Classic
Finish
Brushed Brass
Insert / knob colour
Brass Buttons
Barcode
5021575011388

Size and fitting

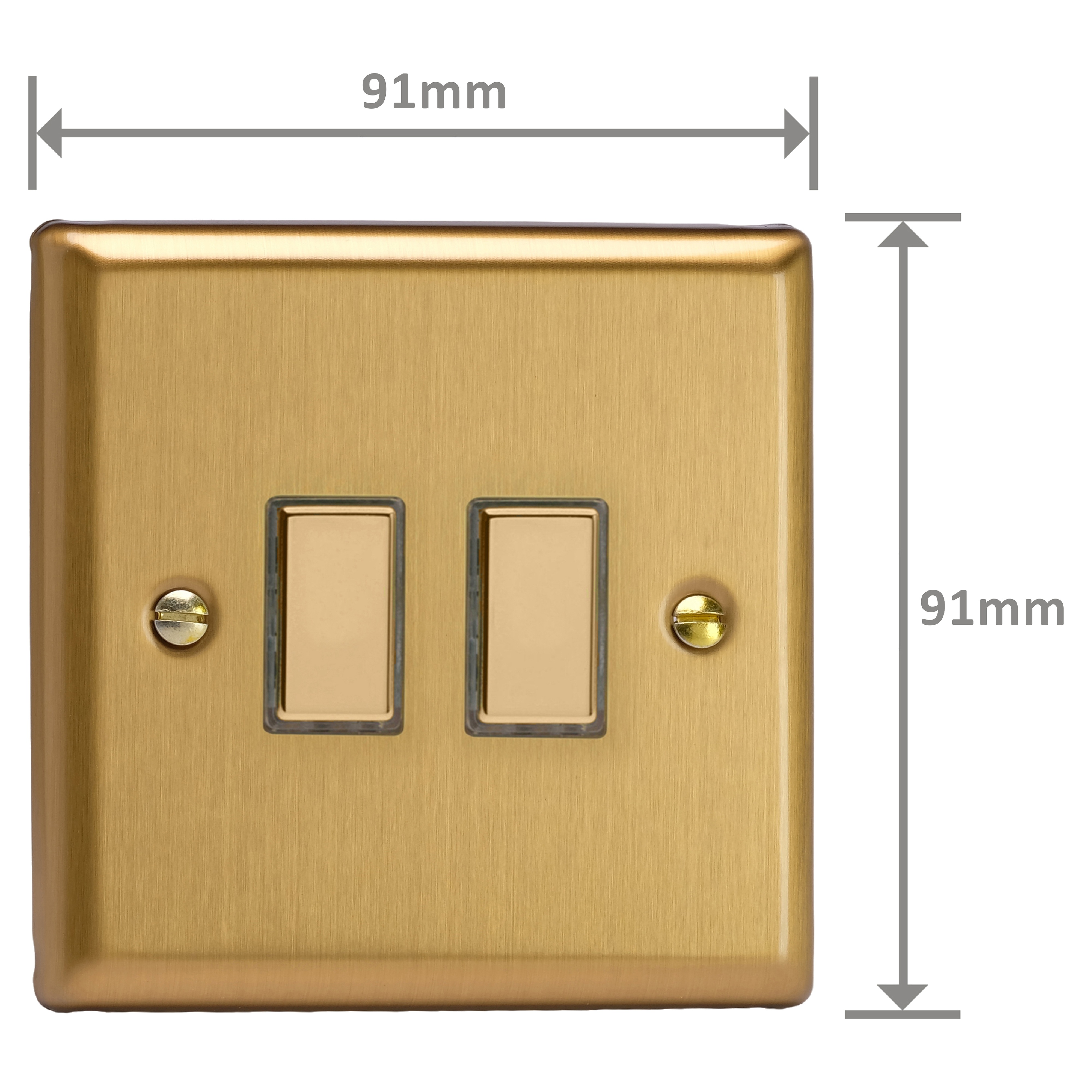

Dimensions
91x91x27mm
Faceplate depth
8mm
Fixing centres
60.3mm
Depth from mounting face
16.1mm
Recommended back box depth
25mm
Net weight
126g
Gross weight
128g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
Refer to Master Dimmer
Maximum current rating
Refer to Master Dimmer
Terminal (Live)
3.2mm, capacity 3 x 1.5mm²
Terminal (Earth)
3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P). Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable safety standard
BS EN 60669-2-1
Commodity code
85365005

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Brass finish

The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 18th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
